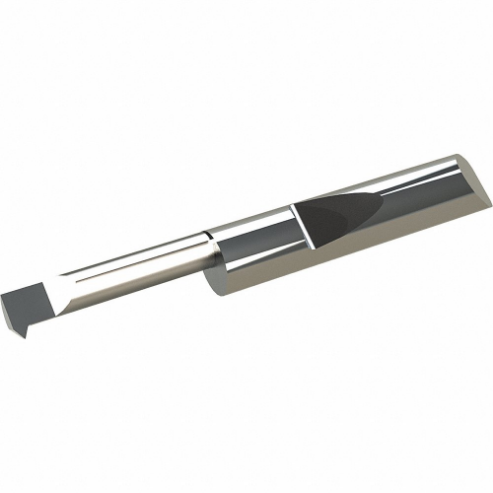

MICRO 100 QIT-230600X Threading Tool, 0.0735 Inch Centerline Offset, 0.6 Inch Max. Bore Depth
Item: AA7WKMModel: QIT-230600XCross Ref: 16T360
7 In Stock
0.6"
AlTiN
0.0735"
Ships within 2 days via
10.00% off
€93.33 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Threading Tool |
| Center To Cutting Tip | 0.074" |
| Coolant Fed | Coolant Through |
| Cutter Material | Carbide |
| Cutting Application | Threading |
| Cutting Direction | Right Hand |
| Features | Polished Split Face For Improved Edge Retention And Chip Evacuation While Reducing Galling, Split Geometry Makes The Tool As Rigid As Possible |
| Finish | AlTiN Coat |
| Head Width | 0.23" |
| Hole Dia. | 0.23" |
| Included Angle | 60° |
| Max. Bore Depth | 3/5" |
| Max. Depth | 3/5" |
| Max. Hole Depth | 3/5" |
| Max. Threads Per Inch | 40 |
| Min. Bore Dia. | 0.252" |
| Min. Hole Dia. | 0.23" |
| Min. Teeth Per Inch | 14 |
| Offset Point | 0.038" |
| Overall Length | 2" |
| Overhang | 0.853" |
| Primary Material Application | Alloy Steel, Inconel, Nickel, Stainless Steel, Steel, Titanium, Tool Steel |
| Primary Material Application Iso Code | M, N, P, S |
| Product Datasheet | micro-100-iat-1000-12.pdf |
| Projection | 0.055" |
| Quick Change | Yes |
| Shank Dia. | 5/16" |
| Shank Material | Carbide |
| Style | Quick Change Internal Threading |
| System Of Measurement | Imperial |
| Thread Direction | Right Hand |
| Thread Standard | Ansi, Metric 60°, UN |
| Threads Per Inch | 10 to 48 |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 0.79 |
| HS code | 8209000030 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Projection | Hole Dia. | Max. Depth | Shank Dia. | Overall Length | Finish | Offset Point | Max. Hole Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QIT-035075 | 0.015" | 0.035" | 0.075" | 3/16" | 1 1/2" | Uncoated | 0.012" | 0.075" | €81.96 | |
| QIT-035075X | 0.015" | 0.035" | 0.075" | 3/16" | - | AlTiN Coat | 0.012" | 0.075" | €87.87 | |
| QIT-035100 | 0.015" | 0.035" | 0.075" | 3/16" | - | Uncoated | 0.012" | 0.1" | €81.96 | |
| QIT-035100X | 0.015" | 0.035" | 0.075" | 3/16" | - | AlTiN Coat | 0.012" | 0.1" | €87.87 | |
| QIT-035150 | 0.015" | 0.035" | 0.075" | 3/16" | 1 1/2" | Uncoated | 0.012" | 0.15" | €82.46 | |
| QIT-035150X | 0.015" | 0.035" | 0.075" | 3/16" | 1 1/2" | AlTiN Coat | 0.012" | 0.15" | €88.32 | |
| QIT-040075 | 0.02" | 1/25" | 0.075" | 0.188" | 1 1/2" | Uncoated | 1/64" | 0.075" | €81.96 |
