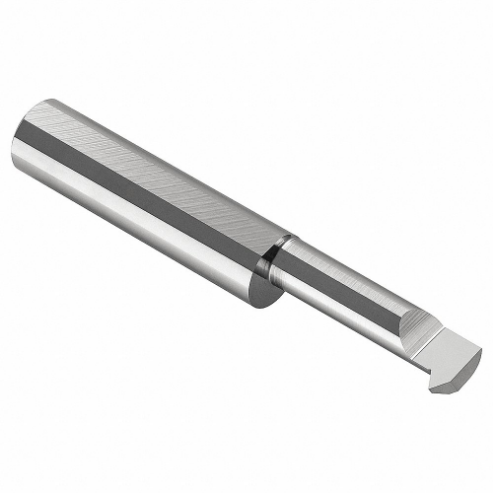

MICRO 100 ITL-080250 Threading Tool, 0.0175 Inch Centerline Offset, 0.08 Inch Head Width
Item: AA7WBDModel: ITL-080250Cross Ref: 16T143
7 In Stock
Ships within 2 days via
10.00% off
€51.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Threading Tool |
| Center To Cutting Tip | 0.018" |
| Cutter Material | Carbide |
| Cutting Application | Threading |
| Cutting Direction | Right Hand |
| Features | Corner Radius Profile, Polished Split Face For Improved Edge Retention And Chip Evacuation While Reducing Galling, Split Geometry Makes The Tool As Rigid As Possible |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Head Width | 2/25" |
| Hole Dia. | 2/25" |
| Included Angle | 60° |
| Max. Bore Depth | 1/4" |
| Max. Depth | 1/4" |
| Max. Hole Depth | 1/4" |
| Max. Threads Per Inch | 76 |
| Min. Bore Dia. | 0.09" |
| Min. Hole Dia. | 0.008" |
| Min. Teeth Per Inch | 40 |
| Offset Point | 0.012" |
| Overall Length | 1 1/2" |
| Product Datasheet | micro-100-iat-1000-12.pdf |
| Shank Dia. | 1/8" |
| Shank Material | Carbide |
| Shank Type - Machining | Straight With Three Flats |
| Style | Internal Threading Tool |
| System Of Measurement | Imperial |
| Thread Direction | Left Hand |
| Thread Standard | Ansi, Metric 60°, UN |
| Threads Per Inch | 28 to 56 |
Shipping Info:
| Ship height (cm) | 0.32 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 0.32 |
| HS code | 8209000030 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Hole Dia. | Max. Depth | Projection | Shank Dia. | Overall Length | Offset Point | Max. Hole Depth | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ITL-040150 | 1/25" | 0.15" | 0.015" | 1/8" | 1 1/2" | 0.009" | 0.15" | Right Hand | €70.70 | |
| ITL-050200 | 0.05" | 1/5" | 0.02" | - | - | 0.012" | 1/5" | Right Hand | €71.29 | |
| ITL-060200 | 0.06" | 1/5" | 0.02" | - | - | 0.012" | 1/5" | Right Hand | €62.18 | |
| ITL-060250 | 0.06" | 1/4" | 0.02" | 1/8" | 1 1/2" | 0.012" | 1/4" | Right Hand | €62.18 | |
| ITL-060300 | 0.06" | 0.3" | 0.02" | - | - | 0.012" | 0.3" | Right Hand | €62.18 | |
| ITL-080350 | 2/25" | 0.35" | 0.02" | - | - | 0.012" | 0.35" | Right Hand | €56.66 | |
| ITL-080500 | 2/25" | 1/2" | 0.02" | 1/8" | 1 1/2" | 0.012" | 1/2" | Right Hand | €56.66 |
