OMRON Enclosed Power Relay
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O| Style | Model | Coil Voltage | Current Rating | Relay Mounting Style | Electrical Connection Type | Number Of Pins/terminals | Contact Form | Electrical Connection | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | G7L-1A-TJ-CB-DC12 | 12V DC | 30A | Bracket | Tab | 4 | SPST-NO | Tab | Bracket | €26.80 | |
| B | G7L-2A-BJ-CB-DC12 | 12V DC | 30A | Bracket | Screw | 6 | Dpst-No | Screw | Bracket | €32.54 | |
| C | G7L-2A-BUBJ-CB-DC12 | 12V DC | 30A | Surface (Top Flange) | Screw | 6 | Dpst-No | Screw | Flange, Top | €49.51 | |
| D | G7L-1A-BUBJ-CB-DC12 | 12V DC | 30A | Surface (Top Flange) | Screw | 4 | SPST-NO | Screw | Flange, Top | €34.46 | |
| E | G7L-2A-TJ-CB-DC12 | 12V DC | 30A | Bracket | Tab | 6 | Dpst-No | Tab | Bracket | €27.75 | |
| F | G7L-1A-BJ-CB-DC12 | 12V DC | 30A | Bracket | Screw | 4 | SPST-NO | Screw | Bracket | €37.99 | |
| G | G7L-1A-TUBJ-CB-DC12 | 12V DC | 30A | Surface (Top Flange) | Tab | 4 | SPST-NO | Tab | Flange, Top | €25.60 | |
| H | G7L-2A-TUBJ-CB-DC12 | 12V DC | 30A | - | - | - | - | Tab | Flange, Top | €24.75 | |
| C | G7L-1A-BUBJ-CB-AC24 | 24V AC | 30A | Surface (Top Flange) | Screw | 4 | SPST-NO | Screw | Flange, Top | €33.60 | |
| H | G7L-2A-TUBJ-CB-AC24 | 24V AC | 30A | Surface (Top Flange) | Tab | 6 | Dpst-No | Tab | Flange, Top | €26.15 | |
| C | G7L-2A-BUBJ-CB-AC24 | 24V AC | 30A | Surface (Top Flange) | Screw | 6 | Dpst-No | Screw | Flange, Top | €34.82 | |
| I | G7J-2A2B-B-W1-AC24 | 24V AC | 25A | Bracket | Screw | 10 | Dpst-Nc, Dpst-No | Screw | Bracket | €95.21 | |
| F | G7L-1A-BJ-CB-AC24 | 24V AC | 30A | Bracket | Screw | 4 | SPST-NO | Screw | Bracket | €30.06 | |
| J | G7L-1A-TUBJ-CB-AC24 | 24V AC | 30A | Surface (Top Flange) | Tab | 4 | SPST-NO | Tab | Flange, Top | €25.98 | |
| K | G7J-4A-T-W1-AC24 | 24V AC | 25A | Bracket | Tab | 10 | 4Pst-No | Tab | Bracket | €83.72 | |
| B | G7L-2A-BJ-CB-AC24 | 24V AC | 30A | Bracket | - | - | - | Screw | Bracket | €31.57 | |
| E | G7L-2A-TJ-CB-AC24 | 24V AC | 30A | Bracket | Tab | 6 | Dpst-No | Tab | Bracket | €27.59 | |
| B | G7L-2A-BJ-CB-DC24 | 24V DC | 30A | Bracket | Screw | 6 | Dpst-No | Screw | Bracket | €38.85 | |
| C | G7L-2A-BUBJ-CB-DC24 | 24V DC | 30A | Surface (Top Flange) | Screw | 6 | Dpst-No | Screw | Flange, Top | €32.91 | |
| F | G7L-1A-BJ-CB-DC24 | 24V DC | 30A | Bracket | Screw | 4 | SPST-NO | Screw | Bracket | €42.61 | |
| D | G7L-1A-BUBJ-CB-DC24 | 24V DC | 30A | Surface (Top Flange) | Screw | 4 | SPST-NO | Screw | Top Flange | €30.92 | |
| L | G7J-3A1B-T-W1-DC24 | 24V DC | 25A | Bracket | Tab | 10 | SPST-NC, 3PST-NO | Tab | Bracket | €76.23 | |
| H | G7L-2A-TUBJ-CB-DC24 | 24V DC | 30A | Surface (Top Flange) | Tab | 6 | Dpst-No | Tab | Flange, Top | €26.27 | |
| A | G7L-1A-TJ-CB-DC24 | 24V DC | 30A | Bracket | Tab | 4 | SPST-NO | Tab | Bracket | €28.27 | |
| E | G7L-2A-TJ-CB-DC24 | 24V DC | 30A | Bracket | - | - | - | Tab | Bracket | €28.27 | |
| G | G7L-1A-TUBJ-CB-DC24 | 24V DC | 30A | Surface (Top Flange) | Tab | 4 | SPST-NO | Tab | Flange, Top | €25.57 | |
| I | G7J-4A-B-W1-DC24 | 24V DC | 25A | Bracket | Screw | 10 | 4Pst-No | Screw | Bracket | €97.97 | |
| C | G7J-2A2B-B-W1-DC24 | 24V DC | - | - | - | - | - | Screw | Bracket | €116.35 | |
| C | G7J-3A1B-B-W1-DC24 | 24V DC | 25A | Bracket | Screw | 10 | SPST-NC, 3PST-NO | Screw | Bracket | €93.92 | |
| H | G7L-2A-TUBJ-CB-AC100/120 | 100/120V AC | 30A | Surface (Top Flange) | Tab | 6 | Dpst-No | Tab | Flange, Top | €27.75 | |

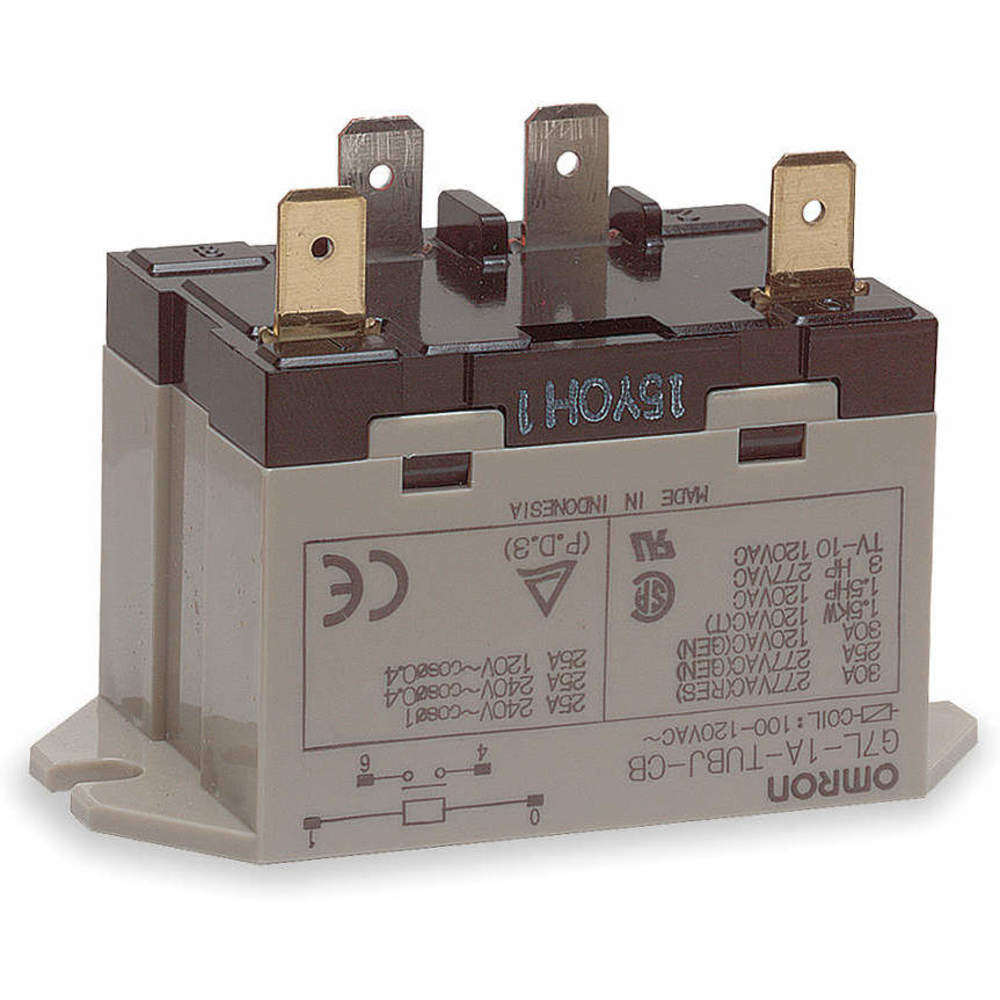

| M | G7L-1A-TUBJ-CB-AC100/120 | 100/120V AC | 30A | Surface (Top Flange) | Tab | 4 | SPST-NO | Tab | Flange, Top | €23.17 | |
| I | G7J-2A2B-B-W1-AC100/120 | 100/120V AC | 25A | Bracket | Screw | 10 | Dpst-Nc, Dpst-No | Screw | Bracket | €92.44 | |
| B | G7L-2A-BJ-CB-AC100/120 | 100/120V AC | 30A | Bracket | Screw | 6 | Dpst-No | Screw | Bracket | €36.96 | |
| E | G7L-2A-TJ-CB-AC100/120 | 100/120V AC | 30A | Bracket | Tab | 6 | Dpst-No | Tab | Bracket | €31.05 | |
| I | G7J-3A1B-B-W1-AC100/120 | 100/120V AC | 25A | Bracket | Screw | 10 | SPST-NC, 3PST-NO | Screw | Bracket | €100.30 | |
| C | G7L-2A-BUBJ-CB-AC100/120 | 100/120V AC | 30A | Surface (Top Flange) | Screw | 6 | Dpst-No | Screw | Flange, Top | €39.20 | |
| I | G7J-4A-B-W1-AC100/120 | 100/120V AC | 25A | Bracket | Screw | 10 | 4Pst-No | Screw | Bracket | €97.97 | |
| A | G7L-1A-TJ-CB-AC100/120 | 100/120V AC | 30A | Bracket | Tab | 4 | SPST-NO | Tab | Bracket | €27.72 | |
| C | G7L-1A-BUBJ-CB-AC100/120 | 100/120V AC | 30A | Surface (Top Flange) | Screw | 4 | SPST-NO | Screw | Flange, Top | €36.92 | |

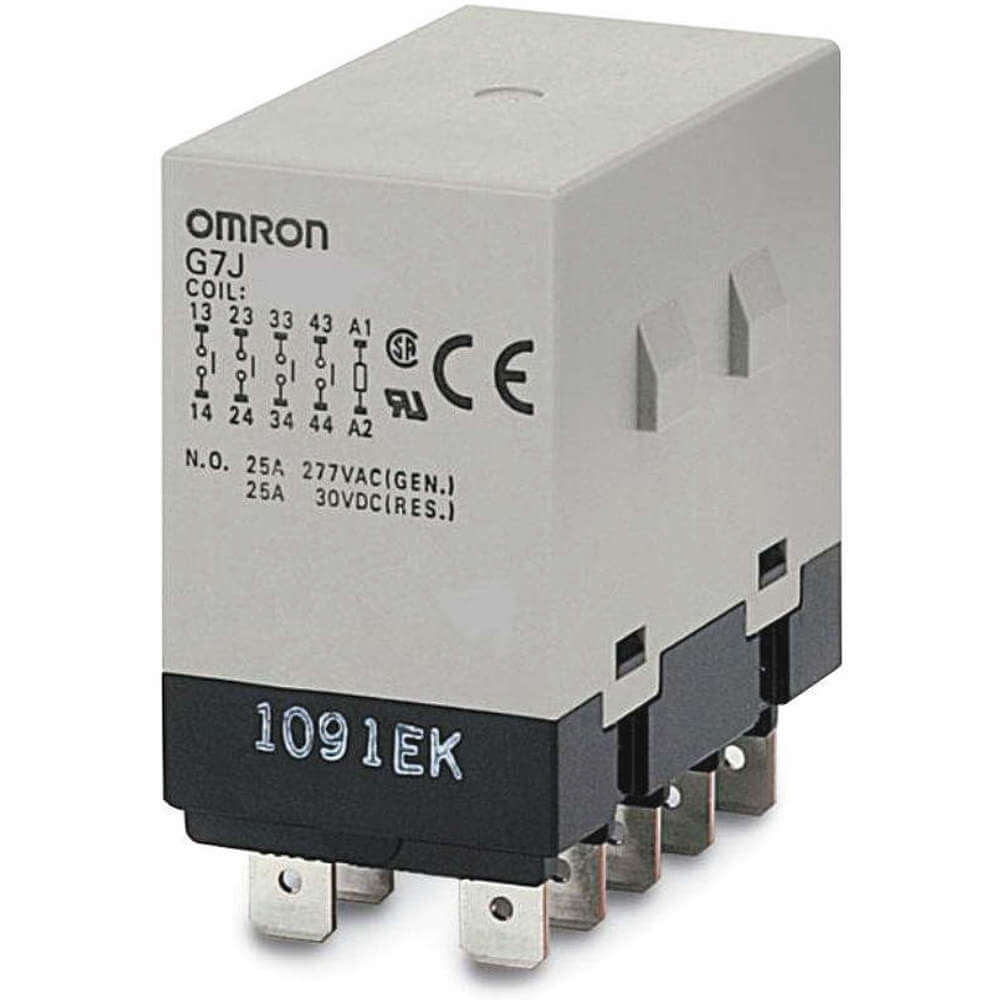

| N | G7J-2A2B-T-W1-AC100/120 | 100/120V AC | 25A | Bracket | Tab | 10 | Dpst-Nc, Dpst-No | Tab | Bracket | €87.75 | |
| L | G7J-3A1B-T-W1-AC100/120 | 100/120V AC | 25A | Bracket | Tab | 10 | SPST-NC, 3PST-NO | Tab | Bracket | €91.90 | |
| F | G7L-1A-BJ-CB-AC100/120 | 100/120V AC | 30A | Bracket | Screw | 4 | SPST-NO | Screw | Bracket | €40.10 | |
| A | G7L-1A-TJ-CB-AC200/240 | 200/240V AC | 30A | Bracket | Tab | 4 | SPST-NO | Tab | Bracket | €28.27 | |
| B | G7L-2A-BJ-CB-AC200/240 | 200/240V AC | 30A | Bracket | Screw | 6 | Dpst-No | Screw | Bracket | €32.78 | |
| I | G7J-2A2B-B-W1-AC200/240 | 200/240V AC | 25A | Bracket | Screw | 10 | Dpst-Nc, Dpst-No | Screw | Bracket | €105.17 | |
| E | G7L-2A-TJ-CB-AC200/240 | 200/240V AC | 25A | Bracket | Tab | 6 | Dpst-No | Tab | Bracket | €28.27 | |
| L | G7J-3A1B-T-W1-AC200/240 | 200/240V AC | 25A | Bracket | Tab | 10 | SPST-NC, 3PST-NO | Tab | Bracket | €83.85 | |
| C | G7L-1A-BUBJ-CB-AC200/240 | 200/240V AC | 30A | Surface (Top Flange) | Screw | 4 | SPST-NO | Screw | Flange, Top | €40.33 | |
| H | G7L-2A-TUBJ-CB-AC200/240 | 200/240V AC | 30A | Surface (Top Flange) | Tab | 6 | Dpst-No | Tab | Flange, Top | €26.64 | |
| C | G7J-4A-B-W1-AC200/240 | 200/240V AC | 25A | Bracket | Screw | 10 | 4Pst-No | Screw | Bracket | €97.97 | |
| C | G7L-2A-BUBJ-CB-AC200/240 | 200/240V AC | 30A | Surface (Top Flange) | Screw | 6 | Dpst-No | Screw | Flange, Top | €33.75 | |

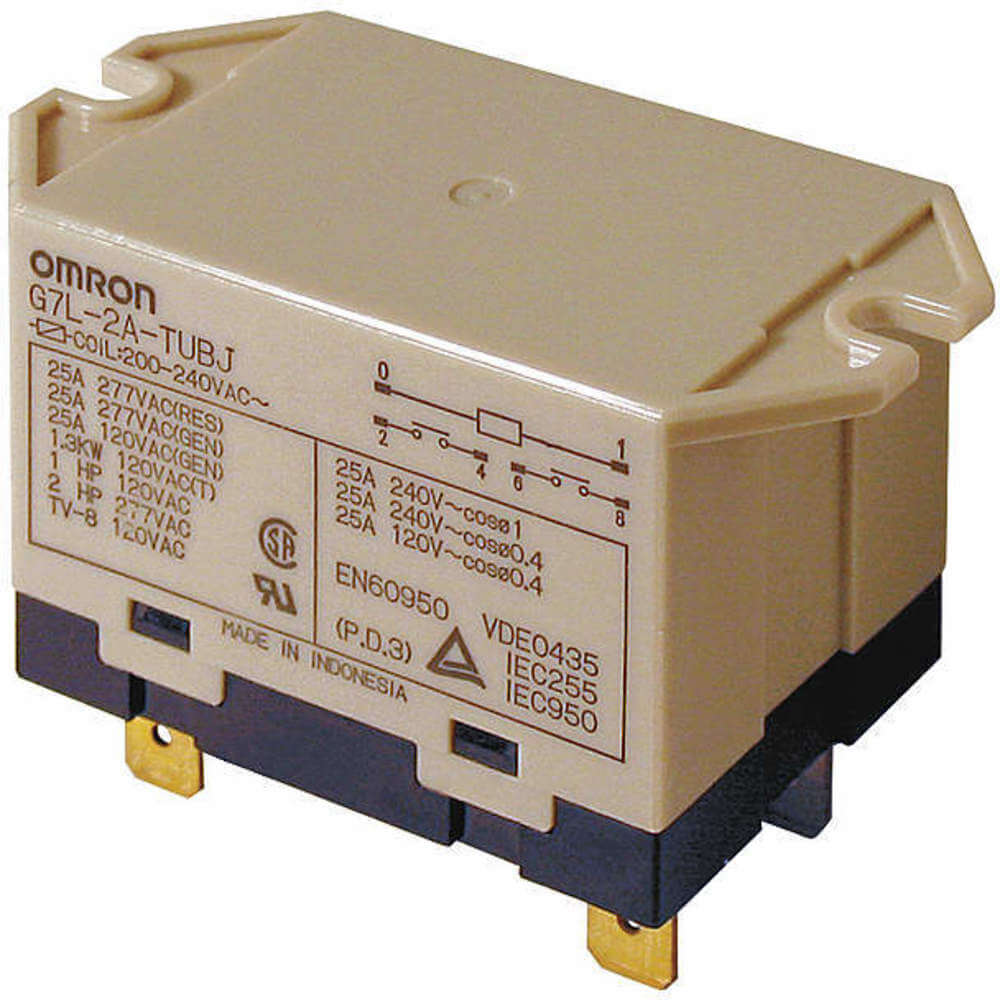

| O | G7L-1A-TUBJ-CB-AC200/240 | 200/240V AC | 30A | Surface (Top Flange) | Tab | 4 | SPST-NO | Tab | Flange, Top | €26.54 | |
| F | G7L-1A-BJ-CB-AC200/240 | 200/240V AC | 30A | Bracket | Screw | 4 | SPST-NO | Screw | Bracket | €30.52 |
