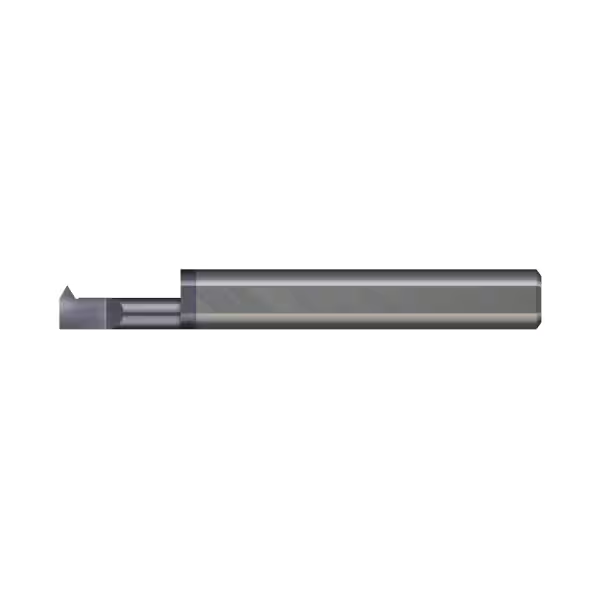

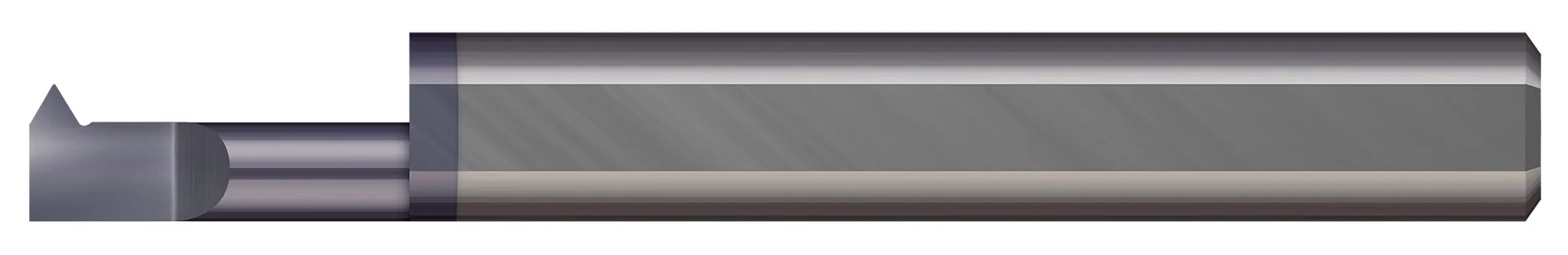

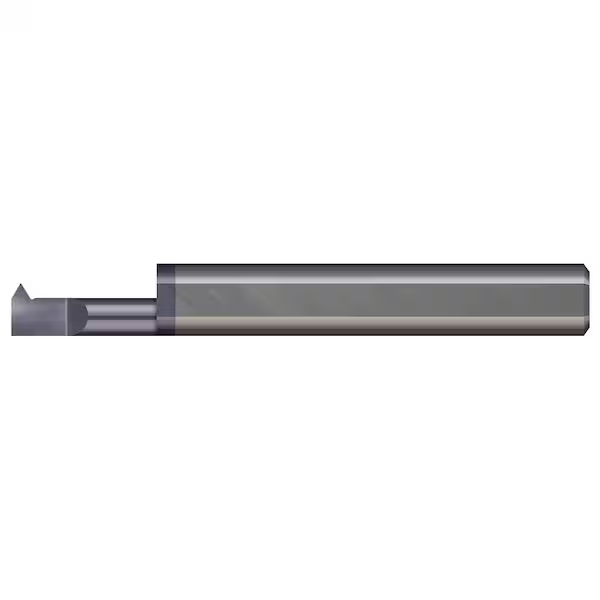

MICRO 100 ITL Standard UN Threading Tools, Single Point
Filter
A
B
C
D
E| Style | Model | Min. Bore Dia. | Finish | Shank Dia. | Max. Bore Depth | Off Set Point | Head Width | Cutting Direction | Max. Hole Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ITL-140500X | - | AlTiN | - | - | - | - | - | - | - | RFQ
|
| B | ITL-120600X | - | - | - | - | - | - | - | - | €65.72 | |
| A | ITL-040075 | - | - | - | - | - | - | - | - | - | RFQ
|
| A | ITL-160400X | - | AlTiN | - | - | - | - | - | - | - | RFQ
|
| C | ITL-360500 | - | Uncoated | 3/8" | - | 0.049" | - | Right Hand | 1/2" | €104.97 | |
| B | ITL-060200X | - | - | 1/8" | - | - | - | - | - | €71.05 | |
| D | ITL-080500X | - | AlTiN | 1/8" | 1/2" | - | - | Left Hand | - | €63.19 | |
| C | ITL-040150 | 0.045" | Uncoated | 1/8" | 0.15" | 0.009" | 1/25" | Right Hand | 0.15" | €75.51 | |
| E | ITL-050200X | 0.055" | - | - | 1/5" | 0.012" | 0.05" | - | - | €65.19 | |
| C | ITL-050200 | 0.055" | Uncoated | - | 1/5" | 0.012" | 0.05" | Right Hand | 1/5" | €75.96 | |
| C | ITL-060300 | 0.07" | Uncoated | - | 0.3" | 0.012" | 0.06" | Right Hand | 0.3" | €66.24 | |
| E | ITL-060300X | 0.07" | AlTiN | - | 0.3" | 0.012" | 0.06" | - | - | €57.69 | |
| C | ITL-060250 | 0.07" | Uncoated | 1/8" | 1/4" | 0.012" | 0.06" | Right Hand | 1/4" | €66.24 | |
| C | ITL-060200 | 0.07" | Uncoated | - | 1/5" | 0.012" | 0.06" | Right Hand | 1/5" | €66.24 | |
| E | ITL-060250X | 0.07" | AlTiN | - | 1/4" | 0.012" | 0.06" | - | - | €57.69 | |
| C | ITL-080350 | 0.09" | Uncoated | - | 0.35" | 0.012" | 2/25" | Right Hand | 0.35" | €60.33 | |
| E | ITL-080350X | 0.09" | - | - | 0.35" | 0.012" | 2/25" | - | - | €53.06 | |
| C | ITL-080250 | 0.09" | Uncoated | 1/8" | 1/4" | 0.012" | 2/25" | Right Hand | 1/4" | €60.33 | |
| E | ITL-080250X | 0.09" | AlTiN | - | 1/4" | 0.012" | 2/25" | - | - | €53.06 | |
| C | ITL-080500 | 0.09" | Uncoated | 1/8" | 1/2" | 0.012" | 2/25" | Right Hand | 1/2" | €60.33 | |
| D | ITL-100600X | 0.1" | AlTiN | 1/8" | 3/5" | - | - | Left Hand | - | €59.32 | |
| C | ITL-100500 | 0.11" | Uncoated | 1/8" | 1/2" | 0.014" | 0.1" | Right Hand | 1/2" | €60.33 | |
| E | ITL-100500X | 0.11" | AlTiN | - | 1/2" | 0.014" | 0.1" | - | - | €53.06 | |
| E | ITL-100250X | 0.11" | AlTiN | - | 1/4" | 0.014" | 0.1" | - | - | €53.06 | |
| C | ITL-100350 | 0.11" | Uncoated | 1/8" | 0.35" | 0.014" | 0.1" | Right Hand | 0.35" | €60.33 | |
| C | ITL-100600 | 0.11" | Uncoated | 1/8" | 3/5" | 0.014" | 0.1" | Right Hand | 3/5" | €60.33 | |
| E | ITL-100350X | 0.11" | AlTiN | - | 0.35" | 0.014" | 0.1" | - | - | €53.06 | |
| C | ITL-100250 | 0.11" | Uncoated | 1/8" | 1/4" | 0.014" | 0.1" | Right Hand | 1/4" | €60.33 | |
| C | ITL-120500 | 0.136" | Uncoated | 3/16" | 1/2" | 0.017" | 3/25" | Right Hand | 1/2" | €64.31 | |
| E | ITL-120400X | 0.136" | AlTiN | - | 2/5" | 0.017" | 3/25" | - | - | €56.90 | |
| C | ITL-120750 | 0.136" | Uncoated | 3/16" | 3/4" | 0.017" | 3/25" | Right Hand | 3/4" | €64.31 | |
| E | ITL-120750X | 0.136" | - | - | 3/4" | 0.017" | 3/25" | - | - | €56.90 | |
| C | ITL-120250 | 0.136" | Uncoated | 3/16" | 1/4" | 0.017" | 3/25" | Right Hand | 1/4" | €64.31 | |
| C | ITL-120600 | 0.136" | Uncoated | 3/16" | 3/5" | 0.017" | 3/25" | Right Hand | 3/5" | €64.31 | |
| C | ITL-120400 | 0.136" | Uncoated | 3/16" | 2/5" | 0.017" | 3/25" | Right Hand | 2/5" | €64.31 | |
| E | ITL-120250X | 0.136" | AlTiN | - | 1/4" | 0.017" | 3/25" | - | - | €56.90 | |
| E | ITL-120500X | 0.136" | AlTiN | - | 1/2" | 0.017" | 3/25" | - | - | €56.90 | |
| C | ITL-160750 | 0.182" | Uncoated | 3/16" | 3/4" | 0.023" | 4/25" | Right Hand | 3/4" | €64.31 | |
| C | ITL-160250 | 0.182" | Uncoated | 3/16" | 1/4" | 0.023" | 4/25" | Right Hand | 1/4" | €64.31 | |
| E | ITL-160250X | 0.182" | AlTiN | - | 1/4" | 0.023" | 4/25" | - | - | €56.90 | |
| C | ITL-160400 | 0.182" | Uncoated | 3/16" | 2/5" | 0.023" | 4/25" | Right Hand | 2/5" | €64.31 | |
| E | ITL-160750X | 0.182" | AlTiN | - | 3/4" | 0.023" | 4/25" | - | - | €56.90 | |
| E | ITL-160500X | 0.182" | AlTiN | - | 1/2" | 0.023" | 4/25" | - | - | €56.90 | |
| C | ITL-160500 | 0.182" | Uncoated | 3/16" | 1/2" | 0.023" | 4/25" | Right Hand | 1/2" | €64.35 | |
| C | ITL-180500 | 0.202" | Uncoated | 1/4" | 1/2" | 0.023" | 0.18" | Right Hand | 1/2" | €68.62 | |
| E | ITL-180350X | 0.202" | AlTiN | - | 0.35" | 0.023" | 0.18" | - | - | €61.90 | |
| C | ITL-180350 | 0.202" | Uncoated | 1/4" | 0.35" | 0.023" | 0.18" | Right Hand | 0.35" | €68.62 | |
| C | ITL-180750 | 0.202" | Uncoated | 1/4" | 3/4" | 0.023" | 0.18" | Right Hand | 3/4" | €68.62 | |
| E | ITL-1801000X | 0.202" | AlTiN | - | 1" | 0.023" | 0.18" | - | - | €61.90 | |
| C | ITL-1801000 | 0.202" | Uncoated | 1/4" | 1" | 0.023" | 0.18" | Right Hand | 1" | €68.62 | |
| E | ITL-180500X | 0.202" | AlTiN | - | 1/2" | 0.023" | 0.18" | - | - | €61.90 | |
| E | ITL-180750X | 0.202" | - | - | 3/4" | 0.023" | 0.18" | - | - | €61.90 | |
| C | ITL-2001000 | 0.222" | Uncoated | 1/4" | 1" | 0.026" | 1/5" | Right Hand | 1" | €68.62 | |
| C | ITL-200400 | 0.222" | Uncoated | 1/4" | 2/5" | 0.026" | 1/5" | Right Hand | 0.4" | €68.62 | |
| C | ITL-200600 | 0.222" | Uncoated | 1/4" | 3/5" | 0.026" | 1/5" | Right Hand | 3/5" | €68.62 | |
| C | ITL-200750 | 0.222" | Uncoated | 1/4" | 3/4" | 0.026" | 1/5" | Right Hand | 3/4" | €68.62 | |
| E | ITL-200750X | 0.222" | - | - | 3/4" | 0.026" | 1/5" | - | - | €61.90 | |
| E | ITL-200400X | 0.222" | - | - | 2/5" | 0.026" | 1/5" | - | - | €61.90 | |
| E | ITL-2001000X | 0.222" | AlTiN | - | 1" | 0.026" | 1/5" | - | - | €61.90 | |
| E | ITL-230600X | 0.252" | AlTiN | - | 3/5" | 0.032" | 0.23" | - | - | €77.22 | |
| C | ITL-230600 | 0.252" | Uncoated | 5/16" | 3/5" | 0.032" | 0.23" | Right Hand | 3/5" | €85.97 |
