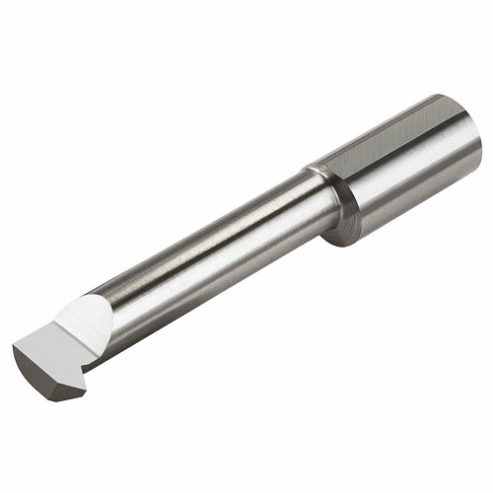

MICRO 100 IT-140400 Threading Tool, 0.0463 Inch Centerline Offset, 0.4 Inch Max. Bore Depth
Item: AA7VZFModel: IT-140400Cross Ref: 16T094
7 In Stock
0.4"
0.0463"
Ships within 2 days via
10.00% off
€54.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Threading Tool |
| Center To Cutting Tip | 0.046" |
| Cutter Material | Carbide |
| Cutting Application | Threading |
| Cutting Direction | Right Hand |
| Features | Corner Radius Profile, Polished Split Face For Improved Edge Retention And Chip Evacuation While Reducing Galling, Split Geometry Makes The Tool As Rigid As Possible |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Head Width | 9/64" |
| Hole Dia. | 0.14" |
| Included Angle | 60° |
| Max. Bore Depth | 2/5" |
| Max. Depth | 2/5" |
| Max. Hole Depth | 2/5" |
| Max. Threads Per Inch | 56 |
| Min. Bore Dia. | 5/32" |
| Min. Hole Dia. | 0.14" |
| Min. Teeth Per Inch | 28 |
| Offset Point | 0.02" |
| Overall Length | 2" |
| Product Datasheet | micro-100-iat-1000-12.pdf |
| Projection | 0.035" |
| Shank Dia. | 3/16" |
| Shank Material | Carbide |
| Shank Type - Machining | Straight With Three Flats |
| Style | Internal Threading Tool |
| System Of Measurement | Imperial |
| Thread Direction | Right Hand |
| Thread Standard | Ansi, Metric 60°, UN |
| Threads Per Inch | 16 to 56 |
Shipping Info:
| Ship height (cm) | 0.48 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 0.48 |
| HS code | 8209000030 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Hole Dia. | Max. Depth | Shank Dia. | Projection | Overall Length | Offset Point | Max. Hole Depth | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| IT-040075 | 1/25" | 0.075" | 1/8" | 0.015" | - | 0.009" | 0.075" | Right Hand | €70.70 | |
| IT-040100 | 1/25" | 0.1" | 1/8" | 0.015" | 1 1/2" | 0.009" | 0.1" | Right Hand | €70.70 | |
| IT-040150 | 1/25" | 0.15" | 1/8" | 0.015" | 1 1/2" | 0.009" | 0.15" | Right Hand | €71.29 | |
| IT-050100 | 0.05" | 0.1" | 1/8" | 0.02" | 1 1/2" | 0.012" | 0.1" | Right Hand | €71.29 | |
| IT-050150 | 0.05" | 0.15" | 1/8" | 0.02" | 1 1/2" | 0.012" | 0.15" | Right Hand | €70.70 | |
| IT-050200 | 0.05" | 1/5" | 1/8" | 0.02" | 1 1/2" | 0.012" | 1/5" | Right Hand | €71.29 | |
| IT-060200 | 0.06" | 1/5" | 1/8" | 0.02" | 1 1/2" | 0.012" | 1/5" | Right Hand | €62.18 |
