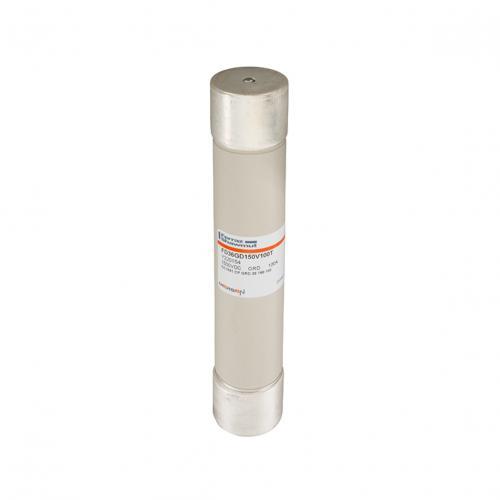

MERSEN FERRAZ Y220154 Fuse, 100A
Get it by Tuesday, Aug 25
€2,352.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac/dc | DC |
| Amps | 100A |
| Body/insulating Material | Ceramic |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Design Details | Grd |
| Dia. | 36 mm |
| Finish | Silver Plated |
| Fuse Size | 36" x 190" |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 190 mm |
| Max. Rated Breaking Capacity Dc | 60 kA |
| Mounting | Clip |
| Power Dissipation @ Rated Amps Value | 42 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Dc Iec | 1500V |
| Rohs Compliant | Yes |
| Speed Characteristic | GR |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 38 |
| Ship width (cm) | 4.5 |
Product Variants
| Product | Model | Amps | Dia. | Fuse Size | Power Dissipation @ Rated Amps Value | Max. Rated Breaking Capacity Dc | Design Details | Mounting | Body/insulating Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B089471 | 10A | 20.6 mm | 20" x 190" | 6.5 W | 60 kA | Grc | Clip | Ceramic | €625.75 | |
 |
D083102 | 6A | 20.6 mm | 20" x 190" | 4.8 W | 60 kA | Grc | Clip | Ceramic | €655.02 | |
 |
E089474 | 20A | 20.6 mm | 20" x 190" | 9.5 W | 60 kA | Grc | Clip | Ceramic | €629.65 | |
 |
G087245 | 10A | 20.6 mm | 20" x 190" | 6.5 W | 60 kA | Grc | Clip | Ceramic | €811.97 | |
 |
K078025 | 100A | 36 mm | 36" x 190" | 42 W | 100 kA | Grd | Clip | Ceramic | €1,367.15 | |
 |
N080420 | 50A | 36 mm | 36" x 190" | 30 W | 60 kA | Grc | Clip | Ceramic | €2,261.04 | |
 |
N088378 | 16A | 20.6 mm | 20" x 190" | 8 W | 60 kA | Grc | Clip | Ceramic | €713.96 |
