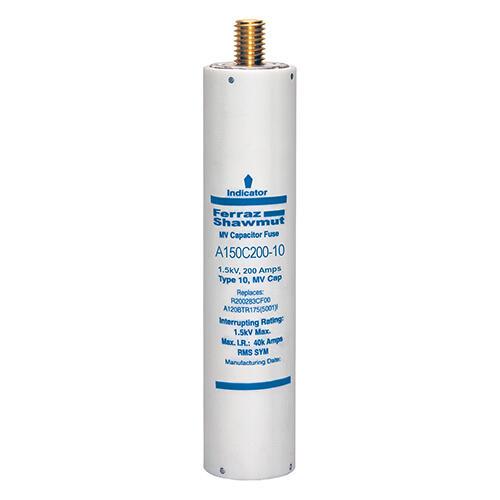

MERSEN FERRAZ A150C200-10 Capacitor Fuse, Medium Voltage, 1500V 200A, Type 10, Striker
Get it by Monday, Aug 24
€917.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Capacitor Fuse |
| Ac Max. I R Breaking Capacity I1 | 40 kA |
| Ac Voltage | 1500V AC |
| Ac/dc | AC |
| Amps | 200A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Male To Female Stud |
| Dia. | 36.1 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 179.8 mm |
| Mounting | Direct Mount |
| Product Datasheet | mersen-ferraz-a100c60-30.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 1500V |
| Rohs Compliant | Yes |
Shipping Info:
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 4.29 |
| Ship width (cm) | 4.29 |
Documentation:
Product Variants
| Product | Model | Ac Voltage | Amps | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Connection/terminal Type | Rated Voltage Ac Ul | Dia. | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A100C60-30 | 1000V AC | 60A | 50 kA | Brass | Female Stud To L Bracket | 1000V | 27.9 mm | 31.5 mm | €693.00 | |
 |
A150C100-10 | 1500V AC | 100A | 40 kA | Copper | Male To Female Stud | 1500V | 36.1 mm | - | €693.00 | |
 |
A150C125-10 | 1500V AC | 125A | 40 kA | Copper | Male To Female Stud | 1500V | 36.1 mm | - | €772.20 | |
 |
A150C125-40 | 1500V AC | 125A | 40 kA | Copper | Female To Female Tube | 1500V | 44.4 mm | - | €772.20 | |
|
A150C140-20 | 1500V AC | 140A | 40 kA | Brass | Male Stud To L Bracket | 1500V | 27.9 mm | 76.2 mm | €772.20 | |
 |
A150C140-40 | 1500V AC | 140A | 40 kA | Copper | Female To Female Tube | 1500V | 44.4 mm | - | €772.20 | |
 |
A150C150-10 | 1500V AC | 150A | 40 kA | Copper | Male To Female Stud | 1500V | 36.1 mm | - | €772.20 |
