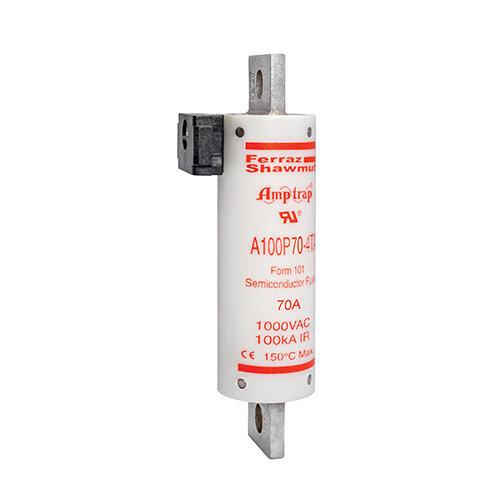

MERSEN FERRAZ A100P70-4TA Semiconductor Fuse, High Speed, 1000V, 70A, aR Class
Get it by Friday, Aug 21
€354.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Semiconductor Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 1000V AC |
| Ac/dc | AC |
| Amps | 70A |
| Body Material | Gmg |
| Body/insulating Material | GMG |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Blade |
| Dia. | 31 mm |
| Finish | TiN Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Ta Indicator |
| Length | 127 mm |
| Mounting | Bolted |
| Product Datasheet | mersen-ferraz-a100p1000-4.pdf |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Ul | 1000V |
| Rohs Compliant | Yes |
| Speed Characteristic | High Speed |
| Speed Type | High Speed |
Shipping Info:
| Ship weight (kg) | 2.51 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 12.7 |
Product Details:
- TA Indicator
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Mounting | Connection/terminal Type | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Finish | Indication System Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A100P1000-4 | 1000A | 88.9 mm | Bolted | Blade | 50 kA | Copper | Silver Plated | - | €2,253.25 | |
|
A100P1000-4TA | 1000A | 88.9 mm | Bolted | Blade | 40 kA | Copper | Silver Plated | Ta Indicator | €2,373.89 | |
 |
A100P100-4 | 100A | 31 mm | Bolted | Blade | 200 kA | Brass | TiN Plated | - | €318.49 | |
 |
A100P100-4TA | 100A | 31 mm | Bolted | Blade | 200 kA | Brass | TiN Plated | Ta Indicator | €368.21 | |
|
A100P100-4TI | 100A | 31 mm | Bolted | Blade | 200 kA | Brass | TiN Plated | Ti Indicator | €356.71 | |
|
A100P1200-4 | 1200A | 111.3 mm | Bolted | Blade | 200 kA | - | - | - | €3,810.78 | |
 |
A100P1200-4TA | 1200A | 111.3 mm | Bolted | Blade | 200 kA | - | - | Ta Indicator | €4,134.53 |
