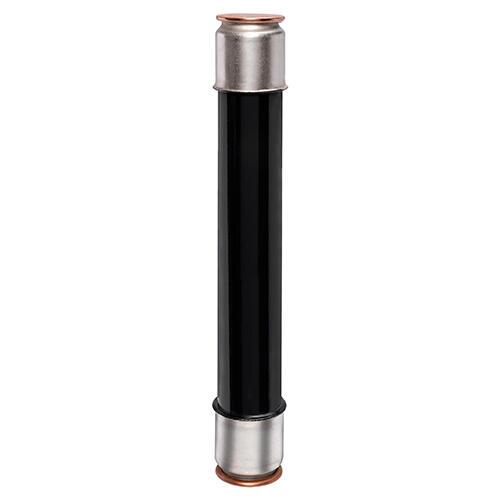

MERSEN FERRAZ 9F60DJD025 Fuse, Medium Voltage, 5500V, 25A, E Rated, Ferrule Mount Striker
Get it by Tuesday, Aug 25
€1,293.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 5500V AC |
| Ac/dc | AC |
| Amps | 25A |
| Body Material | Epoxy |
| Body/insulating Material | Epoxy |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dia. | 50.8 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 360.2 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60ced001.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5500V |
| Speed Characteristic | E Rated |
Shipping Info:
| Ship weight (kg) | 1.47 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 45.09 |
| Ship width (cm) | 10.16 |
Documentation:
Product Variants
| Product | Model | Amps | Ac Max. I R Breaking Capacity I1 | Body/insulating Material | Dia. | Height | Ac Voltage | Mounting | Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9F60CED001 | 1A | 63 kA | Epoxy | 50.8 mm | - | 5500V AC | Clip | 50/60 Hz | €1,254.00 | |
 |
9F60CED002 | 2A | 63 kA | Epoxy | 50.8 mm | - | 5500V AC | Clip | 50/60 Hz | €1,254.00 | |
 |
9F60CED003 | 3A | 63 kA | Epoxy | 50.8 mm | - | 5500V AC | Clip | 50/60 Hz | €1,254.00 | |
 |
9F60CED005 | 5A | 63 kA | Epoxy | 50.8 mm | - | 5500V AC | Clip | 50/60 Hz | €1,254.00 | |
 |
9F60CED007 | 7A | 63 kA | Epoxy | 50.8 mm | - | 5500V AC | Clip | 50/60 Hz | €1,254.00 | |
 |
9F60CED010 | 10A | 63 kA | Epoxy | 50.8 mm | - | 5500V AC | Clip | 50/60 Hz | €1,254.00 | |
 |
9F60CED015 | 15A | 63 kA | Epoxy | 50.8 mm | - | 5500V AC | Clip | 50/60 Hz | €1,412.40 |
