MCKINNEY 55393 Five Knuckle Hinge, 3 Holes per Leaf, 3 1/2 Inch Door Leaf Width, 270 Deg Range of Motion
Item: CT2MNAModel: 55393Cross Ref: 487W03
7 In Stock
Ships within 2 days via
10.00% off
€15.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hinge |
| Bearing Type | Oil Impregnated |
| Corner Type | Square |
| Corners | Square |
| Door Leaf Height | 3 1/2" |
| Door Leaf Thickness | 0.123" |
| Door Leaf Width | 3 1/2" |
| Features | For Flush Door/Frame/Wall Applications |
| Finish | Satin Chrome |
| Frame Leaf Thickness | 0.123" |
| Frame Leaf Width | 1 7/16" |
| Hardware | Yes |
| Holes Per Leaf | 3 |
| Includes Hardware | Hardware Included |
| Ligature Resistant | No |
| Load Capacity | 150 lbs. |
| Material | Steel |
| Mounting | Flushed |
| Mounting Style | Full Mortise |
| Overall Height | 3 1/2" |
| Overall Width | 3 1/2" |
| Pin Dia. | 1/2" |
| Pin Diameter | 9/16" |
| Pin Material | Steel |
| Pin Type | Barrel |
| Range Of Motion | 270° |
| Range Of Motion - Maximum | 270° |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting | Load Capacity | Bearing Type | Frame Leaf Width | Holes Per Leaf | Material | Frame Leaf Thickness | Door Leaf Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

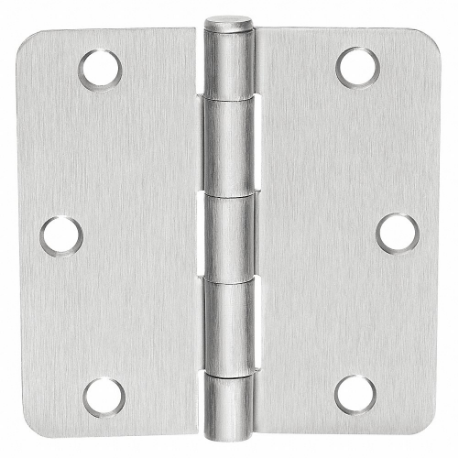

3½x3 1/2 1414 26D | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €7.75 | |
 |

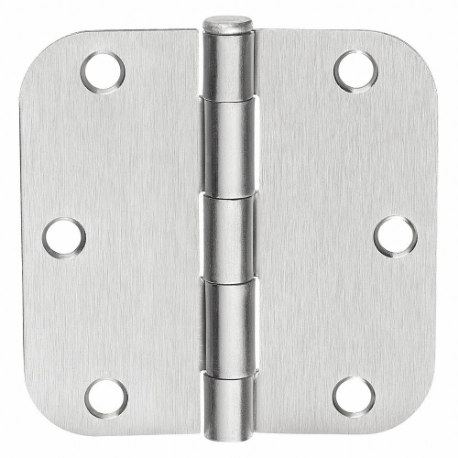

3½x3½ 1458 26D | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €8.61 | |
 |

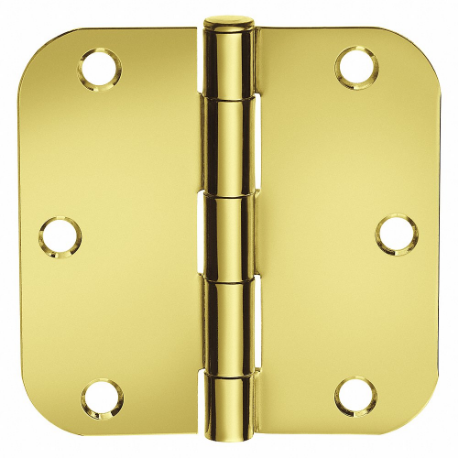

3½x3½ 1458 3 | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €11.23 | |
 |

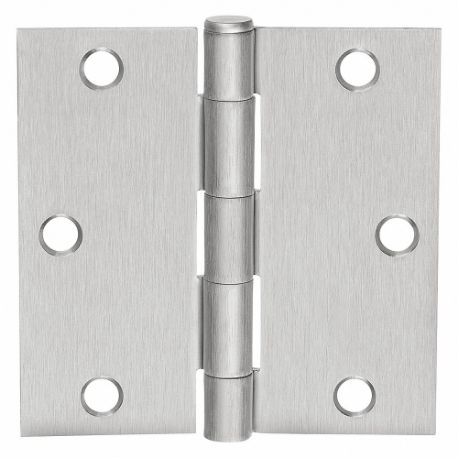

3½x3½ 1400 26D | Screw On | 150 lbs. | Sleeve | 1 1/4" | 3 | Steel | - | 1 1/4" | 1 | €6.73 | |
 |

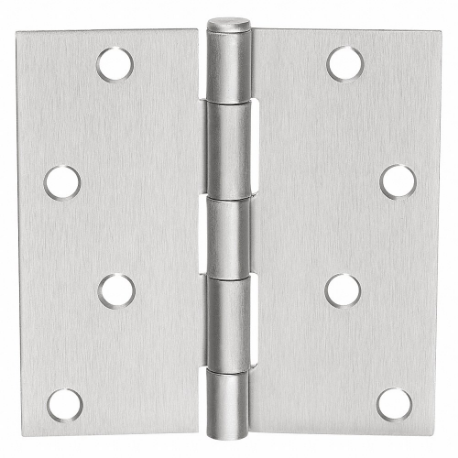

4x4 1400 26D | Screw On | 150 lbs. | Sleeve | 1 1/2" | 4 | Steel | - | 1 1/2" | 1 | €7.61 | |
 |
4 1/2X4 1/2 MP79 26D | Full Mortise | 250 lbs. | Plain | 1 15/16" | 4 | Steel | 0.134" | 4 1/2" | 1 | €16.92 | |
 |
4 1/2X4 1/2 MPS60 26D | Full Mortise | 250 lbs. | Plain | 1 7/8" | 4 | Steel | 0.134" | 4 1/2" | 1 | €29.97 |
