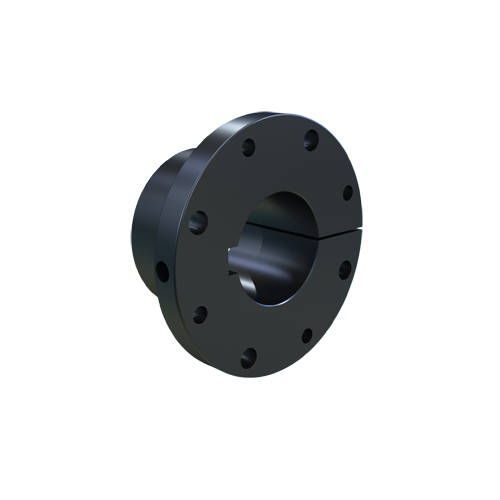

MARTIN SPROCKET WS 6 1/2 Quick Detachable Bushing, 6.5 Inch Bore, Key, 7.250 Inch Length, Cast Iron
6 1/2"
Get it by Wednesday, Aug 26
€2,739.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 10.437" |
| Bolt Circle Dia. | 12 3/4" |
| Bore Dia. | 6 1/2" |
| Flange Dia. | 15" |
| Flange Thickness | 1 1/4" |
| Key Way Size | 1 1/2" x 3/4" |
| Length | 7 1/4" |
| Material | Cast Iron |
| No. Of Bolt Holes | 4 |
| Screw Size | 1 1/8"-7 x 5" |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 60.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Bolt Circle Dia. | Bore Dia. | Key Way Size | No. Of Bolt Holes | Screw Size | Flange Thickness | Barrel Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JS 2 15/16 | Cast Iron | 6 1/4" | 2 15/16" | 3/4" x 3/8" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
 |
JS 2 7/16 | Cast Iron | 6 1/4" | 2 7/16" | 5/8" x 5/16" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
 |
JS 3 15/16 | Ductile Iron | 6 1/4" | 3 15/16" | 1" x 1/8" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
 |
JS 3 7/16 | Cast Iron | 6 1/4" | 3 7/16" | 7/8" x 7/16" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
 |
MS 3 15/16 | Cast Iron | 7 7/8" | 3 15/16" | 1" x 1/2" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
 |
MS 3 7/16 | Cast Iron | 7 7/8" | 3 7/16" | 7/8" x 7/16" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
 |
MS 4 15/16 | Cast Iron | 7 7/8" | 4 15/16" | 1 1/4" x 1/4" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 |
