MARTIN SPROCKET QD Short Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1| Style | Model | Material | Bolt Circle Dia. | Bore Dia. | Key Way Size | No. Of Bolt Holes | Screw Size | Flange Thickness | Barrel Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PS 6 1/2 | Cast Iron | 10" | 6 1/2" | 1 1/2" x 1/4" | 4 | 1" x 4" | 1 3/4" | 8 1/4" | €1,598.23 | |
| B | MS 4 15/16 | Cast Iron | 7 7/8" | 4 15/16" | 1 1/4" x 1/4" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
| C | PS 6 | Cast Iron | 10" | 6" | 1 1/2" x 1/4" | 4 | 1" x 4" | 1 3/4" | 8 1/4" | €1,598.23 | |
| D | WS 8 | Cast Iron | 12 3/4" | 8" | 2" x 1/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| E | WS 7 | Cast Iron | 12 3/4" | 7" | 1 3/4" x 3/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| F | WS 5 15/16 | Cast Iron | 12 3/4" | 5 15/16" | 1 1/2" x 3/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| G | NS 5 7/16 | Cast Iron | 8 1/2" | 5 7/16" | 1 1/4" x 1/4" | 4 | 7/8"-9 x 8" | 1 1/2" | 7" | €963.50 | |
| H | MS 4 7/16 | Cast Iron | 7 7/8" | 4 7/16" | 1" x 1/2" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
| H | JS 3 7/16 | Cast Iron | 6 1/4" | 3 7/16" | 7/8" x 7/16" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
| I | PS 7 | Cast Iron | 10" | 7" | 1 3/4" x 1/8" | 4 | 1" x 4" | 1 3/4" | 8 1/4" | €1,598.23 | |
| J | MS 3 1/2 | Cast Iron | 7 7/8" | 3 1/2" | 7/8" x 7/16" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
| K | JS 3 1/2 | Cast Iron | 6 1/4" | 3 1/2" | 1" x 7/16" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
| L | WS 6 1/2 | Cast Iron | 12 3/4" | 6 1/2" | 1 1/2" x 3/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |

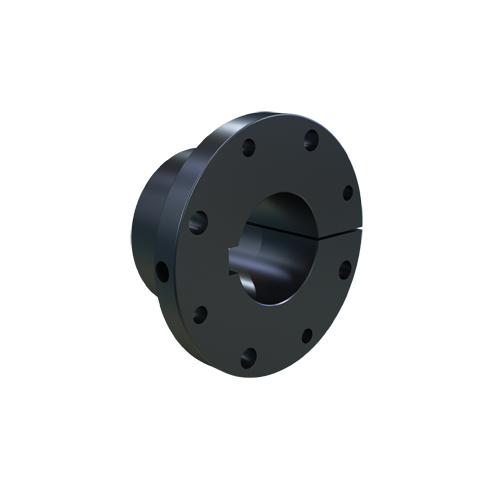

| M | WS 6 7/16 | Cast Iron | 12 3/4" | 6 7/16" | 1 1/2" x 3/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |

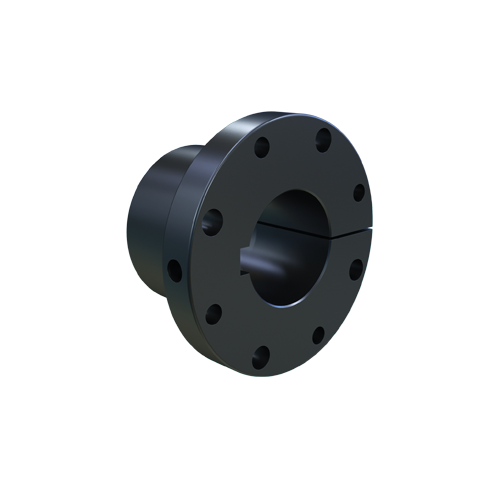

| N | NS 4 7/16 | Cast Iron | 8 1/2" | 4 7/16" | 1" x 1/2" | 4 | 7/8"-9 x 8" | 1 1/2" | 7" | €963.50 | |
| O | NS 6 | Cast Iron | 8 1/2" | 6" | 1 1/2" x 1/4" | 4 | 7/8"-9 x 8" | 1 1/2" | 7" | €963.50 | |

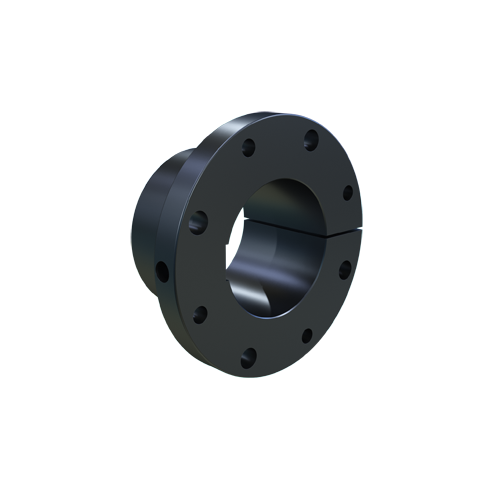

| P | WS 7 15/16 | Cast Iron | 12 3/4" | 7 15/16" | 2" x 1/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| Q | WS 5 7/16 | Cast Iron | 12 3/4" | 5 7/16" | 1 1/4" x 5/8" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| R | WS 8 1/2 | Cast Iron | 12 3/4" | 8 1/2" | 2" x 1/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| S | WS 7 1/2 | Cast Iron | 12 3/4" | 7 1/2" | 1 3/4" x 3/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| T | PS 6 15/16 | Cast Iron | 10" | 6 15/16" | 1 3/4" x 1/8" | 4 | 1" x 4" | 1 3/4" | 8 1/4" | €1,598.23 | |
| U | WS 6 | Cast Iron | 12 3/4" | 6" | 1 1/2" x 3/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |
| V | NS 4 15/16 | Cast Iron | 8 1/2" | 4 15/16" | 1 1/4" x 5/8" | 4 | 7/8"-9 x 8" | 1 1/2" | 7" | €963.50 | |
| W | MS 3 7/16 | Cast Iron | 7 7/8" | 3 7/16" | 7/8" x 7/16" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
| X | JS 2 7/16 | Cast Iron | 6 1/4" | 2 7/16" | 5/8" x 5/16" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
| Y | MS 5 7/16 | Cast Iron | 7 7/8" | 5 7/16" | 1 1/4" x 1/4" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
| Z | MS 3 15/16 | Cast Iron | 7 7/8" | 3 15/16" | 1" x 1/2" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
| A1 | JS 2 15/16 | Cast Iron | 6 1/4" | 2 15/16" | 3/4" x 3/8" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 | |
| B1 | WS 8 7/16 | Cast Iron | 12 3/4" | 8 7/16" | 2" x 1/4" | 4 | 1 1/8"-7 x 5" | 1 1/4" | 10.437" | €2,739.83 | |

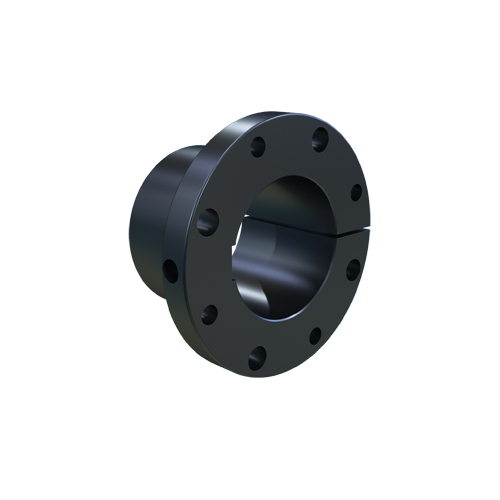

| C1 | PS 6 7/16 | Cast Iron | 10" | 6 7/16" | 1 1/2" x 1/4" | 4 | 1" x 4" | 1 3/4" | 8 1/4" | €1,598.23 | |
| D1 | MS 5 1/2 | Cast Iron | 7 7/8" | 5 1/2" | 1 1/4" x 1/4" | 4 | 3/4"-10 x 3" | 1 1/4" | 6 1/2" | €502.30 | |
| E1 | JS 3 15/16 | Ductile Iron | 6 1/4" | 3 15/16" | 1" x 1/8" | 3 | 5/8"-11 x 2 1/2" | 1" | 5.148" | €273.97 |
