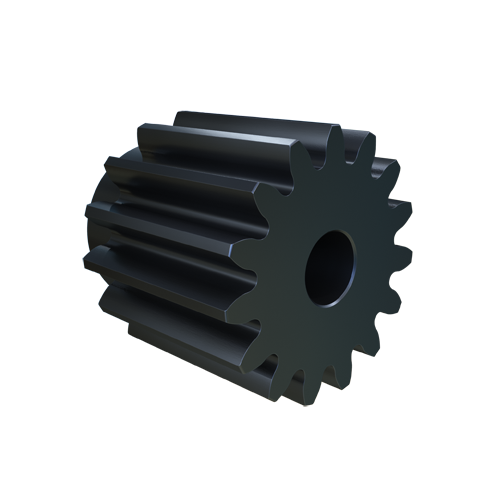

MARTIN SPROCKET TS415 Spur Gear, 4 Diametral Pitch, 3.750 Inch Pitch Dia., Reborable, Steel
3.750"
Get it by Monday, Jul 6
€336.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1 1/8" to 1 7/8" |
| Diametral Pitch | 4 |
| Face Width | 3 1/2" |
| Hub Dia. | 3.016" |
| Hub Projection | 7/8" |
| Hub Type | B |
| Length | 4 3/8" |
| Material | Steel |
| No. Of Teeth | 15 |
| Outside Dia. | 4 1/4" |
| Pitch Dia. | 3 3/4" |
| Pressure Angle | 20° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 5.18 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Pressure Angle | Bore Dia. | Pitch Dia. | Face Width | Hub Dia. | Hub Projection | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

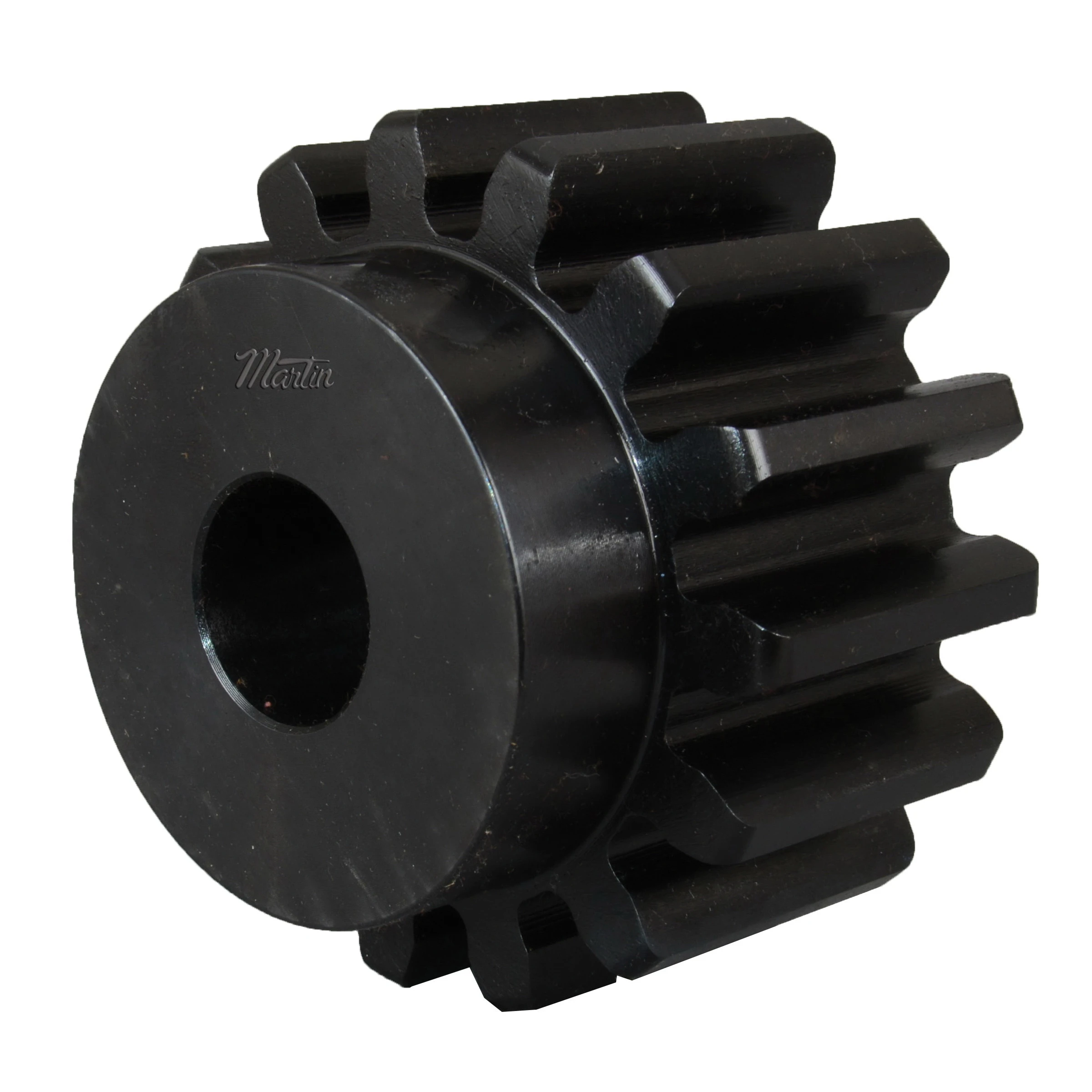

S411 | 3 1/4" | 14.5° | 1 1/8" to 1 5/16" | 2 3/4" | 2" | 2 1/4" | 7/8" | B | €302.54 | |
 |

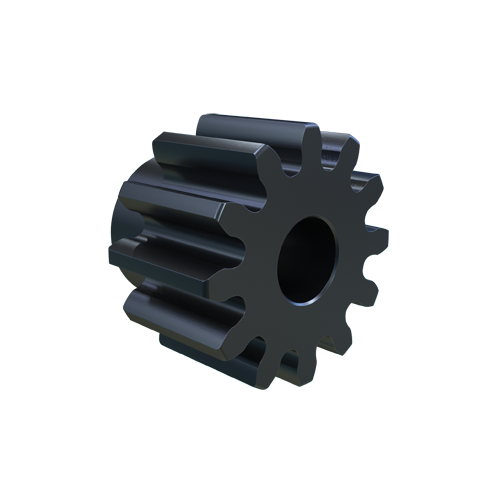

S412 | 3 1/2" | 14.5° | 1.125" to 1.313" | 3" | 2" | 2 1/4" | 7/8" | B | €302.54 | |
 |

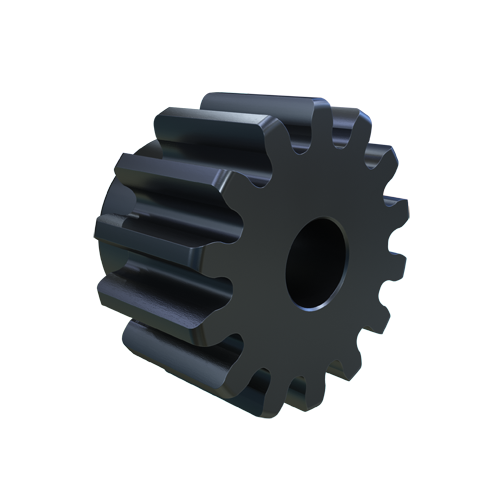

S414 | 4" | 14.5° | 1 1/8" to 1 3/4" | 3 1/2" | 2" | 2 3/4" | 7/8" | B | €326.18 | |
|
S415 | 4 1/4" | 14.5° | 1 1/8" to 1 7/8" | 3 3/4" | 2" | 3" | 7/8" | B | €397.07 | |
 |
S416 | 4 1/2" | 14.5° | 1 1/8" to 2 1/8" | 4" | 2" | 3 1/4" | 7/8" | B | €423.08 | |
 |

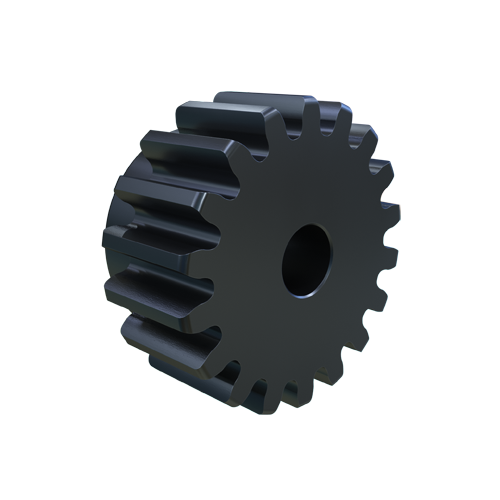

S418 | 5" | 14.5° | 1 1/8" to 2 3/8" | 4 1/2" | 2" | 3 3/4" | 7/8" | B | €437.71 | |
 |

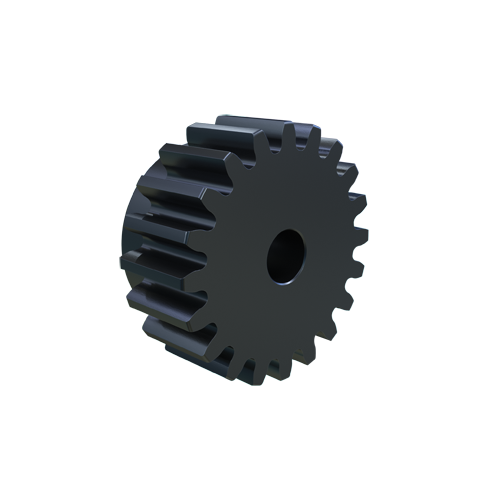

S420 | 5 1/2" | 14.5° | 1 1/8" to 2 3/8" | 5" | 2" | 4 1/4" | 7/8" | B | €421.40 |
