MARTIN SPROCKET Reborable Type Steel Stock Spur Gears, 4 Diameter Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1| Style | Model | Outside Dia. | Pressure Angle | Bore Dia. | Pitch Dia. | Face Width | Hub Dia. | Hub Projection | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S412 | 3 1/2" | 14.5° | 1.125" to 1.313" | 3" | 2" | 2 1/4" | 7/8" | B | €302.54 | |
| B | TS412 | 3 1/2" | 20° | 1.125" to 1.313" | 3" | 3 1/2" | 2.266" | 7/8" | B | €299.38 | |
| C | S411 | 3 1/4" | 14.5° | 1 1/8" to 1 5/16" | 2 3/4" | 2" | 2 1/4" | 7/8" | B | €302.54 | |
| D | S413 | 3 3/4" | 14.5° | 1.125" to 1.313" | 3 1/4" | 2" | 2 1/4" | 7/8" | B | €326.18 | |
| E | S416 | 4 1/2" | 14.5° | 1 1/8" to 2 1/8" | 4" | 2" | 3 1/4" | 7/8" | B | €423.08 | |
| F | TS416 | 4 1/2" | 20° | 1 1/8" to 2 1/8" | 4" | 3 1/2" | 3.266" | 7/8" | B | €358.84 | |
| C | S415 | 4 1/4" | 14.5° | 1 1/8" to 1 7/8" | 3 3/4" | 2" | 3" | 7/8" | B | €397.07 | |
| G | TS415 | 4 1/4" | 20° | 1 1/8" to 1 7/8" | 3 3/4" | 3 1/2" | 3.016" | 7/8" | B | €336.79 | |
| H | S417 | 4 3/4" | 14.5° | 1 1/8" to 2 1/4" | 4 1/4" | 2" | 3 1/2" | 7/8" | B | €437.71 | |
| I | S414 | 4" | 14.5° | 1 1/8" to 1 3/4" | 3 1/2" | 2" | 2 3/4" | 7/8" | B | €326.18 | |
| J | TS414 | 4" | 20° | 1 1/8" to 1 3/4" | 3 1/2" | 3 1/2" | 2.766" | 7/8" | B | €322.76 | |
| K | TS420 | 5 1/2" | 20° | 1 1/8" to 2 3/4" | 5" | 3 1/2" | 4.266" | 7/8" | B | €416.99 | |
| L | S420 | 5 1/2" | 14.5° | 1 1/8" to 2 3/8" | 5" | 2" | 4 1/4" | 7/8" | B | €421.40 | |
| M | S419 | 5 1/4" | 14.5° | 1 1/8" to 2 1/4" | 4 3/4" | 2" | 4" | 7/8" | B | €491.63 | |
| C | S421 | 5 3/4" | 14.5° | 1 1/8" to 2 5/8" | 5 1/4" | 2" | 4 1/2" | 7/8" | B | €475.27 | |
| N | TS418 | 5" | 20° | 1 1/8" to 2 3/8" | 4 1/2" | 3 1/2" | 3.7656" | 7/8" | B | €371.26 | |
| O | S418 | 5" | 14.5° | 1 1/8" to 2 3/8" | 4 1/2" | 2" | 3 3/4" | 7/8" | B | €437.71 | |
| P | S424 | 6 1/2" | 14.5° | 1 1/8" to 2 3/4" | 6" | 2" | 4 3/4" | 1 1/2" | B | €657.19 | |
| Q | TS424 | 6 1/2" | 20° | 1 1/8" to 3 1/8" | 6" | 3 1/2" | 5" | 1 1/4" | B | €650.30 | |
| C | S422 | 6" | 14.5° | 1 1/8" to 2 3/4" | 5 1/2" | 2" | 4 3/4" | 7/8" | B | €490.26 | |
| R | TS422 | 6" | 20° | 1 1/8" to 3" | 5 1/2" | 3 1/2" | 4.766" | 7/8" | B | €485.14 | |
| S | S428 | 7 1/2" | 14.5° | 1 1/8" to 2 3/4" | 7" | 2" | 4 3/4" | 1 1/2" | B | €758.51 | |
| N | TS428 | 7 1/2" | 20° | 1 1/8" to 3 1/8" | 7" | 3 1/2" | 5" | 1 1/4" | B | €750.58 | |
| T | S426 | 7" | 14.5° | 1 1/8" to 2 3/4" | 6 1/2" | 2" | 4 3/4" | 1 1/2" | B | €707.84 | |
| N | TS432 | 8 1/2" | 20° | 1 1/4" to 3 1/8" | 8" | 3 1/2" | 5" | 1 1/2" | B | €1,069.48 | |
| U | S432 | 8 1/2" | 14.5° | 1 1/4" to 2 3/4" | 8" | 2" | 4 3/4" | 1 1/2" | B | €1,049.96 | |
| V | S430 | 8" | 14.5° | 1 1/4" to 2 3/4" | 7 1/2" | 2" | 4 3/4" | 1 1/2" | B | €943.20 | |
| N | TS430 | 8" | 20° | 1 1/4" to 3 1/8" | 7 1/2" | 3 1/2" | 5" | 1 1/4" | B | €933.31 | |
| U | S436 | 9 1/2" | 14.5° | 1 1/4" to 2 3/4" | 9" | 2" | 4 3/4" | 1 1/2" | B | €1,166.82 | |
| N | TS436 | 9 1/2" | 20° | 1 1/4" to 3 1/8" | 9" | 3 1/2" | 5" | 1 1/2" | B | €1,154.63 | |
| W | TS440 | 10 1/2" | 20° | 1 1/4" to 3 1/8" | 10" | 3 1/2" | 5 1/8" | 1 1/2" | B | €1,260.24 | |
| U | S440 | 10 1/2" | 14.5° | 1 1/4" to 3 1/8" | 1" | 2" | 5 1/8" | 1 1/2" | B | €1,273.58 | |
| N | TS444 | 11 1/2" | 20° | 1 1/4" to 3 1/8" | 11" | 3 1/2" | 5 1/8" | 1 1/2" | B | €1,404.42 | |

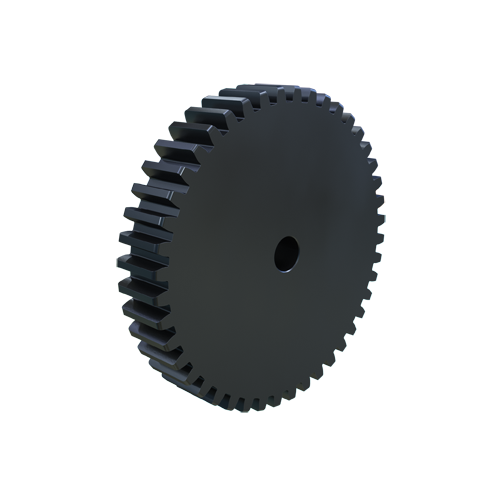

| X | S444 | 11 1/2" | 14.5° | 1 1/4" to 3 1/8" | 11" | 2" | 5 1/8" | 1 1/2" | B | €1,419.29 | |
| U | S442 | 11" | - | - | - | - | - | - | - | €1,351.52 | |
| U | S448 | 12 1/2" | - | - | - | - | - | - | - | €1,565.38 | |
| N | TS448 | 12 1/2" | 20° | 1 1/4" to 3 1/8" | 12" | 3 1/2" | 5 1/8" | 1 1/2" | B | €1,548.98 | |
| Y | S456 | 14 1/2" | 14.5° | 1 1/4" to 3" | 14" | 2" | 5 1/16" | 1 1/2" | B | €2,070.68 | |
| Z | TS456 | 14 1/2" | 20° | 1 1/4" to 3 1/4" | 14" | 3 1/2" | 5 9/16" | 1 1/2" | B | €2,048.99 | |
| A1 | S454 | 14" | 14.5° | 1 1/4" to 3" | 13 1/2" | 2" | 5 1/16" | 1 1/2" | B | €1,924.97 | |
| B1 | S460 | 15 1/2" | 14.5° | 1 1/4" to 3" | 15" | 2" | 5 1/16" | 1 1/2" | B | €2,294.30 | |
| C1 | TS460 | 15 1/2" | 20° | 1 1/4" to 3 1/4" | 15" | 3 1/2" | 5 9/16" | 1 1/2" | B | €2,270.27 | |

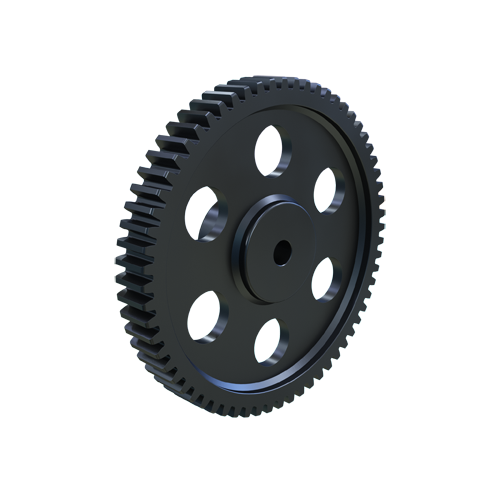

| D1 | S464 | 16 1/2" | 14.5° | 1 1/4" to 3" | 16" | 2" | 5 1/16" | 1 1/2" | B | €2,459.88 | |
| C1 | TS464 | 16 1/2" | 20° | 1 1/4" to 3 1/4" | 16" | 3 1/2" | 5 9/16" | 1 1/2" | B | €2,434.12 | |
| C1 | TS472 | 18 1/2" | 20° | 1 1/4" to 3 1/4" | 18" | 3 1/2" | 5 9/16" | 1 1/2" | B | €2,828.50 | |
| E1 | S472 | 18 1/2" | 14.5° | 1 1/4" to 3 1/4" | 18" | 2" | 5 9/16" | 1 1/2" | B | €2,858.42 | |
| C1 | TS480 | 20 1/2" | 20° | 1 1/4" to 3 1/4" | 20" | 3 1/2" | 5 9/16" | 1 1/2" | B | €3,290.33 | |
| F1 | S480 | 20 1/2" | 14.5° | 1 3/8" to 3 1/4" | 2" | 2" | 5 1/2" | 1 1/2" | B2 | €3,325.15 | |
| C1 | S484 | 21 1/2" | 14.5° | 1 3/8" to 3 1/4" | 21" | 2" | 5 9/16" | 1 1/2" | B | €3,621.13 | |
| G1 | S488 | 22 1/2" | 14.5° | 1 3/8" to 3 3/4" | 22" | 2" | 6 1/16" | 1 3/4" | B | €3,839.16 | |
| C1 | S496 | 24 1/2" | 14.5° | 1 3/8" to 3 3/4" | 24" | 2" | 6 1/16" | 1 3/4" | B | €4,265.72 | |
| H1 | S4120 | 30 1/2" | 14.5° | 1 3/8" to 3 5/8" | 3" | 2" | 6.063" | 1 3/4" | B2 | €5,763.49 | |

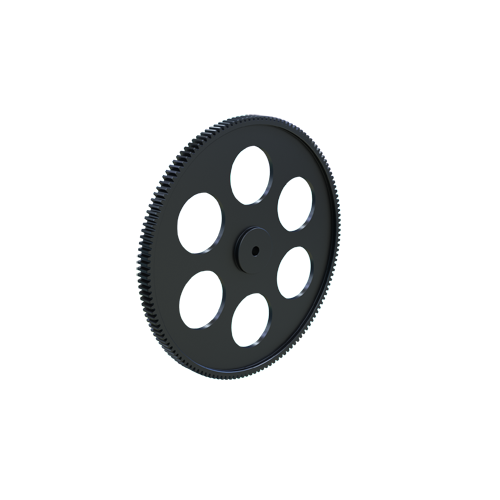

| I1 | S4144 | 36 1/2" | 14.5° | 1 3/8" to 4" | 36" | 2" | 6 9/16" | - | B | €7,126.02 |
