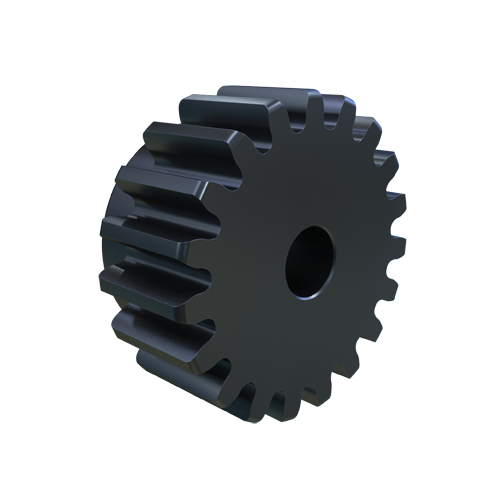

MARTIN SPROCKET S419 Spur Gear, 4 Diametral Pitch, 4.750 Inch Pitch Dia., Reborable, Steel
Item: AK3BABModel: S419
7 In Stock
4.750"
Ships within 2 days via
€491.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 1 1/8" to 2 1/4" |
| Diametral Pitch | 4 |
| Face Width | 2" |
| Hub Dia. | 4" |
| Hub Projection | 7/8" |
| Hub Type | B |
| Length | 2 7/8" |
| Material | Steel |
| No. Of Teeth | 19 |
| Outside Dia. | 5 1/4" |
| Pitch Dia. | 4 3/4" |
| Pressure Angle | 14.5° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 4.74 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 13.34 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Teeth | Pitch Dia. | Pressure Angle | Face Width | Hub Dia. | Bore Dia. | Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S411 | 11 | 2 3/4" | 14.5° | 2" | 2 1/4" | 1 1/8" to 1 5/16" | Reboreable | B | €302.54 | |
 |
S412 | 12 | 3" | 14.5° | 2" | 2 1/4" | 1.125" to 1.313" | External Tooth Reborable | B | €302.54 | |
 |
S414 | 14 | 3 1/2" | 14.5° | 2" | 2 3/4" | 1 1/8" to 1 3/4" | External Tooth Reborable | B | €326.18 | |
|
S415 | 15 | 3 3/4" | 14.5° | 2" | 3" | 1 1/8" to 1 7/8" | Reboreable | B | €397.07 | |
 |
S416 | 16 | 4" | 14.5° | 2" | 3 1/4" | 1 1/8" to 2 1/8" | External Tooth Reborable | B | €423.08 | |
 |
S418 | 18 | 4 1/2" | 14.5° | 2" | 3 3/4" | 1 1/8" to 2 3/8" | External Tooth Reborable | B | €437.71 | |
 |
S420 | 20 | 5" | 14.5° | 2" | 4 1/4" | 1 1/8" to 2 3/8" | External Tooth Reborable | B | €421.40 |
