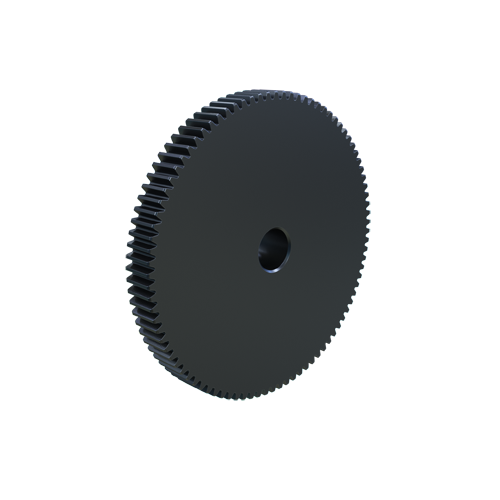

MARTIN SPROCKET TS2090 Spur Gear, 20 Diametral Pitch, 4.5 Inch Pitch Dia., Reborable, Steel
Item: AK3CMXModel: TS2090
7 In Stock
4.5"
Ships within 2 days via
€154.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spur Gear |
| Bore Dia. | 5/8" to 1 1/2" |
| Diametral Pitch | 20 |
| Face Width | 1/2" |
| Hub Dia. | 2 1/2" |
| Hub Projection | 1/2" |
| Hub Type | B |
| Length | 1 1/8" |
| Material | Steel |
| No. Of Teeth | 90 |
| Outside Dia. | 4 3/5" |
| Pitch Dia. | 4 1/2" |
| Pressure Angle | 20° |
| Type | External Tooth Reborable |
Shipping Info:
| Ship weight (kg) | 1.27 |
| Ship height (cm) | 2.87 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 11.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S20132 | 6 3/5" | 14.5° | 132 | 3/8" | 1 3/4" | 1/2" to 1" | External Tooth Reborable | 1/2" | €231.64 | |
 |
S2011 | 3/5" | 14.5° | 11 | 3/8" | 0.4688" | 5/16" | Reboreable | 3/8" | €45.37 | |
 |
S2012 | 3/5" | 14.5° | 12 | 3/8" | 0.469" | 5/16" | External Tooth Reborable | 3/8" | €45.37 | |
 |
S2013 | 0.65" | 14.5° | 13 | 3/8" | 1/2" | 5/16" | Reboreable | 3/8" | €50.36 | |
 |
S2014 | 0.7" | 14.5° | 14 | 3/8" | 0.547" | 5/16" | External Tooth Reborable | 3/8" | €53.19 | |
 |
S2015 | 3/4" | 14.5° | 15 | 3/8" | 0.609" | 3/8" | External Tooth Reborable | 3/8" | €56.73 | |
 |
S2016 | 4/5" | 14.5° | 16 | 3/8" | 0.656" | 3/8" | External Tooth Reborable | 3/8" | €58.14 |
