MARTIN SPROCKET Reborable Type Steel Stock Spur Gears, 20 Diameter Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1| Style | Model | Pitch Dia. | Pressure Angle | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S2014 | 0.7" | 14.5° | 14 | 3/8" | 0.547" | 5/16" | External Tooth Reborable | 3/8" | €53.19 | |
| B | TS2014 | 0.7" | 20° | 14 | 1/2" | 0.5469" | 5/16" | Reboreable | 0.438" | €52.64 | |
| C | TS2018 | 0.9" | 20° | 18 | 1/2" | 3/4" | 3/8" | External Tooth Reborable | 0.438" | €62.47 | |
| D | S2018 | 0.9" | 14.5° | 18 | 3/8" | 3/4" | 3/8" | External Tooth Reborable | 3/8" | €63.13 | |
| B | S2013 | 0.65" | 14.5° | 13 | 3/8" | 1/2" | 5/16" | Reboreable | 3/8" | €50.36 | |
| B | S2017 | 0.85" | 14.5° | 17 | 3/8" | 0.7031" | 3/8" | Reboreable | 3/8" | €59.53 | |
| E | S2019 | 0.95" | 14.5° | 19 | 3/8" | 0.797" | 3/8" | External Tooth Reborable | 3/8" | €64.52 | |
| F | S2030 | 1 1/2" | 14.5° | 30 | 3/8" | 1.359" | 3/8" to 13/16" | External Tooth Reborable | 3/8" | €77.96 | |
| G | TS2030 | 1 1/2" | 20° | 30 | 1/2" | 1.359" | 1/2" to 13/16" | External Tooth Reborable | 0.438" | €77.15 | |
| H | S2025 | 1 1/4" | 14.5° | 25 | 3/8" | 1.109" | 3/8" to 5/8" | External Tooth Reborable | 3/8" | €77.29 | |
| I | TS2025 | 1 1/4" | 20° | 25 | 1/2" | 1.109" | 1/2" to 5/8" | External Tooth Reborable | 0.438" | €76.50 | |
| J | S2024 | 1 1/5" | 14.5° | 24 | 3/8" | 1.063" | 3/8" to 9/16" | External Tooth Reborable | 3/8" | €75.90 | |
| K | TS2024 | 1 1/5" | 20° | 24 | 1/2" | 1.063" | 1/2" to 9/16" | External Tooth Reborable | 0.438" | €75.11 | |
| L | S2028 | 1 2/5" | 14.5° | 28 | 3/8" | 1.266" | 3/8" to 11/16" | External Tooth Reborable | 3/8" | €80.85 | |
| B | TS2028 | 1 2/5" | 20° | 28 | 1/2" | 1.2656" | 1/2" to 11/16" | Reboreable | 7/16" | €79.99 | |
| M | TS2035 | 1 3/4" | 20° | 35 | 1/2" | 1.563" | 1/2" to 7/8" | External Tooth Reborable | 1/2" | €93.56 | |
| N | S2035 | 1 3/4" | 14.5° | 35 | 3/8" | 1 9/16" | 3/8" to 7/8" | Reboreable | 3/8" | €94.55 | |
| O | TS2032 | 1 3/5" | 20° | 32 | 1/2" | 1.438" | 1/2" to 7/8" | External Tooth Reborable | 1/2" | €91.85 | |
| P | S2032 | 1 3/5" | 14.5° | 32 | 3/8" | 1.438" | 3/8" to 7/8" | External Tooth Reborable | 3/8" | €92.84 | |
| N | TS2036 | 1 4/5" | 20° | 36 | 1/2" | 1 5/8" | 1/2" to 15/16" | Reboreable | 1/2" | €95.91 | |
| N | S2036 | 1 4/5" | 14.5° | 36 | 3/8" | 1 5/8" | 3/8" to 15/16" | Reboreable | 1/2" | €96.94 | |
| Q | TS2020 | 1" | 20° | 20 | 1/2" | 0.859" | 1/2" | External Tooth Reborable | 0.438" | €67.39 | |
| R | S2020 | 1" | 14.5° | 20 | 3/8" | 0.859" | 3/8" | External Tooth Reborable | 3/8" | €68.08 | |
| B | S2021 | 1.05" | 14.5° | 21 | 3/8" | 7/8" | 3/8" | Reboreable | 3/8" | €69.50 | |
| S | TS2021 | 1.05" | 20° | 21 | 1/2" | 7/8" | 1/2" | Reboreable | 7/16" | €68.78 | |
| T | TS2022 | 1.1" | 20° | 22 | 1/2" | 0.969" | 1/2" | External Tooth Reborable | 0.438" | €72.27 | |
| B | S2022 | 1.1" | 14.5° | 22 | 3/8" | 0.9688" | 3/8" | Reboreable | 3/8" | €73.03 | |
| U | S2023 | 1.15" | 14.5° | 23 | 3/8" | 0.969" | 3/8" | External Tooth Reborable | 3/8" | €74.45 | |
| V | TS2050 | 2 1/2" | 20° | 50 | 1/2" | 2" | 1/2" to 1 1/4" | External Tooth Reborable | 1/2" | €117.10 | |
| W | S2050 | 2 1/2" | 14.5° | 50 | 3/8" | 2" | 3/8" to 1 1/4" | External Tooth Reborable | 1/2" | €118.33 | |
| X | S2045 | 2 1/4" | 14.5° | 45 | 3/8" | 2" | 3/8" to 1 1/4" | External Tooth Reborable | 3/8" | €107.54 | |
| N | TS2045 | 2 1/4" | 20° | 45 | 1/2" | 2" | 1/2" to 1 1/4" | Reboreable | 1/2" | €106.43 | |
| Y | S2048 | 2 2/5" | 14.5° | 48 | 3/8" | 2" | 3/8" to 1 1/4" | External Tooth Reborable | 3/8" | €111.84 | |
| N | S2055 | 2 3/4" | 14.5° | 55 | 3/8" | 2" | 3/8" to 1 1/4" | Reboreable | 1/2" | €124.36 | |
| Z | TS2040 | 2" | 20° | 40 | 1/2" | 1.813" | 1/2" to 1 1/16" | External Tooth Reborable | 1/2" | €98.80 | |
| A1 | S2040 | 2" | 14.5° | 40 | 3/8" | 1.813" | 3/8" to 1 1/16" | External Tooth Reborable | 1/2" | €99.86 | |
| N | TS2070 | 3 1/2" | 20° | 70 | 1/2" | 2 3/8" | 1/2" to 1 7/16" | Reboreable | 1/2" | €131.32 | |
| B1 | S2070 | 3 1/2" | 14.5° | 70 | 3/8" | 2" | 3/8" to 1 1/4" | External Tooth Reborable | 1/2" | €132.71 | |
| N | S2064 | 3 1/5" | 14.5° | 64 | 3/8" | 2" | 3/8" to 1 1/4" | Reboreable | 1/2" | €127.12 | |
| C1 | S2075 | 3 3/4" | 14.5° | 75 | 3/8" | 2 1/4" | 3/8" to 1 5/16" | Reboreable | 1/2" | €144.36 | |
| D1 | TS2072 | 3 3/5" | 20° | 72 | 1/2" | 2 3/8" | 1/2" to 1 7/16" | Reboreable | 1/2" | €136.80 | |
| E1 | S2072 | 3 3/5" | 14.5° | 72 | 3/8" | 2 1/4" | 3/8" to 1 5/16" | External Tooth Reborable | 1/2" | €138.27 | |
| F1 | TS2060 | 3" | 20° | 60 | 1/2" | 2 1/8" | 1/2" to 1 5/16" | External Tooth Reborable | 1/2" | €119.79 | |
| G1 | S2060 | 3" | 14.5° | 60 | 3/8" | 2" | 3/8" to 1 1/4" | External Tooth Reborable | 1/2" | €121.06 | |
| H1 | S2015 | 3/4" | 14.5° | 15 | 3/8" | 0.609" | 3/8" | External Tooth Reborable | 3/8" | €56.73 | |
| I1 | TS2015 | 3/4" | 20° | 15 | 1/2" | 0.609" | 3/8" | External Tooth Reborable | 0.437" | €56.13 | |
| J1 | TS2012 | 3/5" | 20° | 12 | 1/2" | 0.469" | 0.313" | External Tooth Reborable | 0.438" | €44.92 | |
| K1 | S2012 | 3/5" | 14.5° | 12 | 3/8" | 0.469" | 5/16" | External Tooth Reborable | 3/8" | €45.37 | |
| L1 | S2011 | 3/5" | 14.5° | 11 | 3/8" | 0.4688" | 5/16" | Reboreable | 3/8" | €45.37 | |
| M1 | S2090 | 4 1/2" | 14.5° | 90 | 3/8" | 2 1/4" | 1/2" to 1 5/16" | External Tooth Reborable | 1/2" | €155.97 | |
| N1 | TS2090 | 4 1/2" | 20° | 90 | 1/2" | 2 1/2" | 5/8" to 1 1/2" | External Tooth Reborable | 1/2" | €154.34 | |
| O1 | TS2084 | 4 1/5" | 20° | 84 | 1/2" | 2 1/2" | 5/8" to 1 1/2" | External Tooth Reborable | 1/2" | €148.35 | |

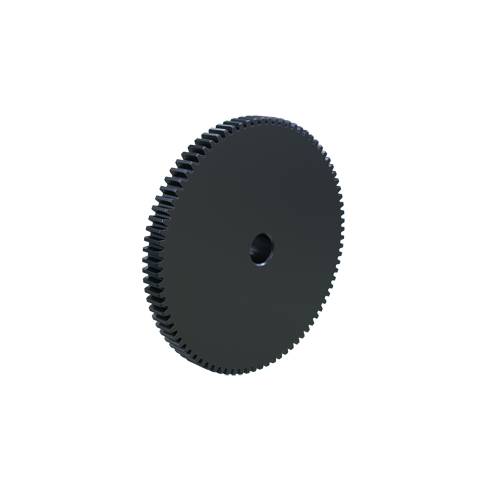

| P1 | S2084 | 4 1/5" | 14.5° | 84 | 3/8" | 2 1/4" | 1/2" to 1 5/16" | External Tooth Reborable | 1/2" | €149.94 | |
| N | S2096 | 4 4/5" | 14.5° | 96 | 3/8" | 2 1/4" | 1/2" to 1 5/16" | Reboreable | 1/2" | €161.59 | |
| Q1 | TS2096 | 4 4/5" | 20° | 96 | 1/2" | 2 1/2" | 5/8" to 1 1/2" | Reboreable | 1/2" | €159.89 | |

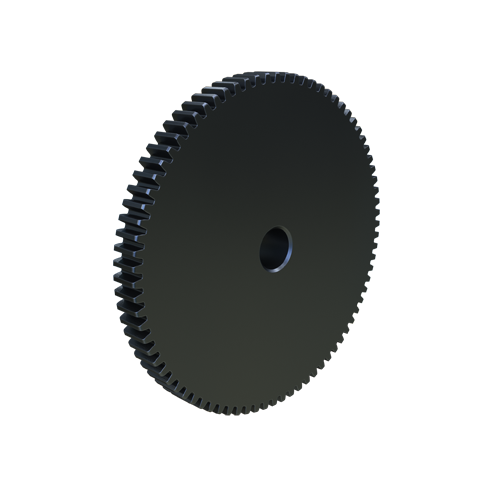

| R1 | S2080 | 4" | 14.5° | 80 | 3/8" | 2 1/4" | 1/2" to 1 5/16" | External Tooth Reborable | 1/2" | €144.36 | |
| S1 | TS2080 | 4" | 20° | 80 | 1/2" | 2 1/2" | 5/8" to 1 1/2" | External Tooth Reborable | 1/2" | €142.84 | |
| T1 | TS2016 | 4/5" | 20° | 16 | 1/2" | 0.656" | 3/8" | External Tooth Reborable | 0.437" | €57.55 | |
| U1 | S2016 | 4/5" | 14.5° | 16 | 3/8" | 0.656" | 3/8" | External Tooth Reborable | 3/8" | €58.14 | |
| V1 | S20112 | 5 3/5" | 14.5° | 112 | 3/8" | 1 3/4" | 1/2" to 1" | Reboreable | 1/2" | €177.75 | |
| W1 | TS20100 | 5" | 20° | 100 | 1/2" | 2 1/2" | 5/8" to 1 1/2" | External Tooth Reborable | 1/2" | €165.38 |
