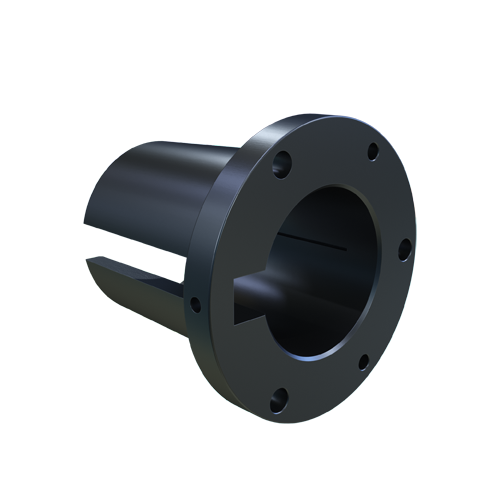

MARTIN SPROCKET R2 3 Bushing, 4.875 Inch Length Through Bore, 3/4 x 3/8 Inch Key, 3 Inch Bore, Ductile Iron
Item: AZ9TCUModel: R2 3
7 In Stock
3"
Ships within 2 days via
€211.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bushing |
| Bolt Circle Dia. | 4 5/8" |
| Bore Dia. | 3" |
| Cap Screw Size | 3/8"-16 x 1 3/4" |
| Flange Dia. | 5 3/8" |
| Flange Thickness | 0.62" |
| Hub Dia. | 5 3/4" |
| Key Way Size | 3/4" x 3/8" |
| Large End Barrel Dia. | 4" |
| Length | 4 22/25" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Set Screw Size | 5/16"-18 x 5/16" |
| Small End Barrel Dia. | 3 3/4" |
| Suitable For Use With | MST Sprockets, HR2 Weld On Hub |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship length (cm) | 12.4 |
| Country of Origin | US |
