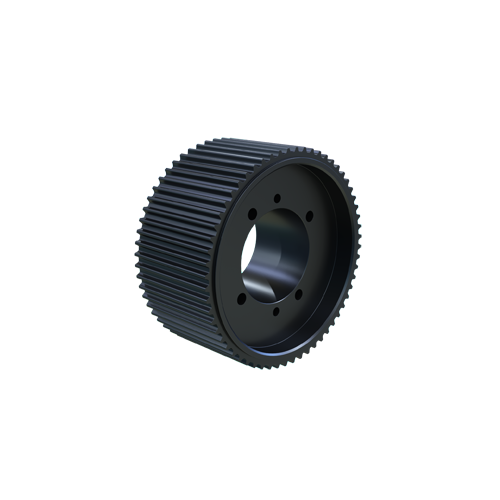

MARTIN SPROCKET P6020M170-M Sprocket, M Bushing, 5.5 Inch Max Bore, 60 Teeth, 15.038 Inch Pitch Dia., Cast Iron
15.038"
Get it by Tuesday, Sep 1
€3,650.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 2" to 5 1/2" |
| Bore Type | Minimum Plain |
| Bushing Type | M |
| Face Width | 7 1/2" |
| Flange Dia. | 14.764" |
| Length | 7 1/2" |
| Material | Cast Iron |
| No. Of Grooves | 60 |
| No. Of Teeth | 60 |
| Outside Dia. | 14.8715" |
| Pitch | 0.7874" |
| Pitch Dia. | 15.038" |
| Suitable For Use With | RPP, RPP Plus, Hawk Pd, HTD belts |
| Type | Solid Type AF-1 |
Shipping Info:
| Ship weight (kg) | 89.55 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | No. Of Teeth | Pitch Dia. | Pitch | Type | Bore Dia. | Face Width | No. Of Grooves | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P3420M115-F | Steel | 34 | 8.522" | 0.7874" | Solid Type AF-1 | 1" to 4" | 5.38" | 34 | €1,480.84 | |
 |
P3620M115-F | Steel | 36 | 9.023" | 0.7874" | Solid Type AF-1 | 1" to 4" | 5.38" | 36 | €1,578.43 | |
 |
P3820M115-F | Steel | 38 | 9.524" | 0.7874" | Solid Type AF-1 | 1" to 4" | 5.38" | 38 | €1,676.00 | |
|
P4020M115-F | Cast Iron | 40 | 10.026" | 0.7874" | Solid Type AF-1 | 1" to 4" | 5.38" | 40 | €1,776.46 | |
|
P4420M115-F | Steel | 44 | - | - | - | - | - | - | €1,974.47 | |
|
P4820M115-J | Cast Iron | 48 | 12.031" | 0.7874" | Solid Type AF-1 | 1 1/4" to 4 1/2" | 5.38" | 48 | €2,169.61 | |
|
P5220M115-J | Cast Iron | 52 | 13.033" | 0.7874" | Web Type AF-2 | 3/8" to 1 1/4" | 5.38" | 52 | €2,399.21 |
