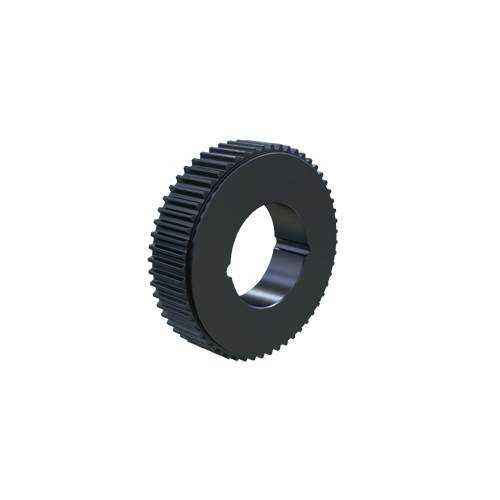

MARTIN SPROCKET P568M30-2012 Sprocket, Bushed, 2012 Bushing, 2 Inch Max Bore, 56 Teeth, Steel
Item: AL4ZJNModel: P568M30-2012
7 In Stock
Ships within 2 days via
€393.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 1/2" to 2 1/8" |
| Bore Type | TB Bushed |
| Bushing Type | 2012 |
| Face Width | 1 1/2" |
| Flange Dia. | 5.945" |
| Length | 1 1/4" |
| Material | Steel |
| No. Of Grooves | 56 |
| No. Of Teeth | 56 |
| Outside Dia. | 5 14/25" |
| Pitch | 8 mm |
| Pitch Dia. | 5.614" |
| Type | Solid Type DF-1 |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 14.12 |
| Ship width (cm) | 14.12 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | No. Of Teeth | Pitch Dia. | Pitch | Type | Bore Dia. | Face Width | No. Of Grooves | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P248M20-1108 | Steel | 24 | 2.406" | 8 mm | Solid Type KF-1 | 1/2" to 1 1/8" | 1 1/8" | 24 | €200.35 | |
|
P268M20-1108 | Steel | 26 | 2.607" | 8 mm | Solid Type KF-1 | 1/2" to 1 1/8" | 1 1/8" | 26 | €204.14 | |
 |
P288M20-1108 | Steel | 28 | 2.807" | 8 mm | Solid Type KF-1 | 1/2" to 1" | 1 1/8" | 28 | €207.92 | |
 |
P308M20-1210 | Steel | 30 | - | - | - | - | - | - | €215.47 | |
 |
P328M20-1210 | Steel | 32 | 3.208" | 8 mm | Solid Type KF-1 | 1/2" to 1 1/4" | 1 1/8" | 32 | €223.03 | |
 |
P348M20-1610 | Steel | 34 | 3.409" | 8 mm | Solid Type KF-1 | 1/2" to 1 11/16" | 1 1/8" | 34 | €226.81 | |
 |
P368M20-1610 | Steel | 36 | 3.609" | 8 mm | Solid Type KF-1 | 1/2" to 1 5/8" | 1 1/8" | 36 | €234.38 |
