MARTIN SPROCKET Taper Bushed Type High Torque Sprockets, 8MM Belt Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1| Style | Model | Pitch Dia. | Bore Type | Face Width | Type | Pitch | Bushing Type | Flange Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

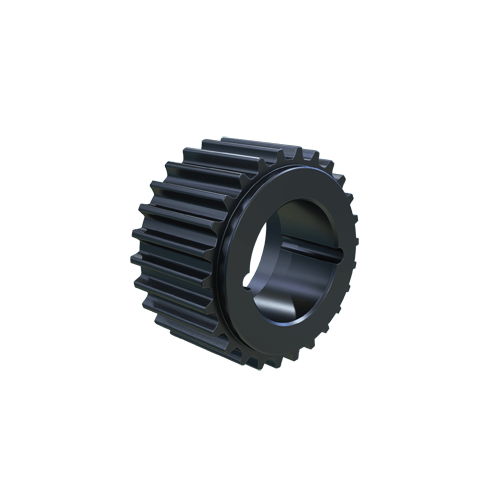

| A | P268M30-1108 | - | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1108 | 2.937" | €211.69 | |
| B | P248M20-1108 | - | Taper Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 1108 | 2 3/4" | €200.35 | |
| C | P408M85-2012 | - | TB Bushed | 3 3/4" | Solid Type KF-1 | 8 mm | 2012 | 4.344" | €400.70 | |
| D | P288M30-1108 | - | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1108 | 3.161" | €223.03 | |
| E | P568M85-2517 | - | Taper Bushed | 3 3/4" | Solid Type WF-1 | 0.31496" | 2517 | - | €529.23 | |
| C | P808M85-3020 | - | TB Bushed | 3 3/4" | Solid Type WF-1 | 8 mm | 3020 | - | €628.59 | |

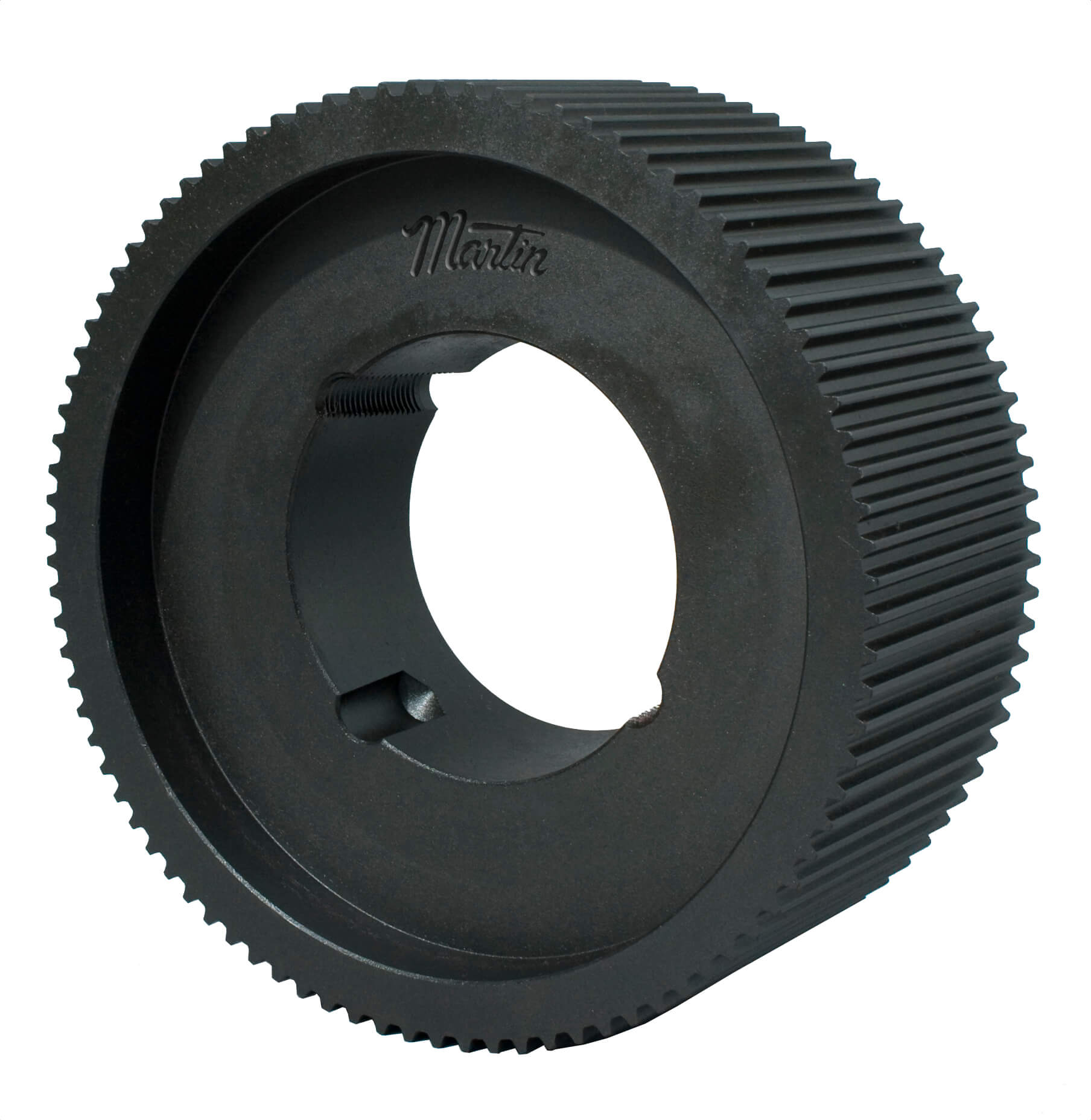

| F | P908M85-3020 | - | Taper Bushed | 3 3/4" | Solid Type W-1 | 0.31496" | 3020 | - | €793.84 | |
| G | P368M85-1615 | - | Taper Bushed | 3 3/4" | Solid Type WF-1 | 0.31496" | 1615 | - | €378.01 | |
| G | P348M85-1615 | - | Taper Bushed | 3 3/4" | Solid Type WF-1 | 0.31496" | 1615 | - | €359.12 | |
| H | P568M50-2517 | - | Taper Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 2517 | - | €434.71 | |
| I | P388M85-1615 | - | Taper Bushed | 3 3/4" | Solid Type WF-1 | 0.31496" | 1615 | 4.16" | €385.59 | |
| J | P288M20-1108 | - | TB Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 1108 | 3.161" | €207.92 | |
| H | P808M50-2517 | - | Taper Bushed | 2 3/8" | Solid Type KF-1 | 0.31496" | 2517 | 8.38" | €502.23 | |
| K | P308M20-1210 | - | - | - | - | - | - | - | €215.47 | |
| L | P328M20-1210 | - | TB Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 1210 | 3.562" | €223.03 | |
| M | P348M20-1610 | - | TB Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 1610 | - | €226.81 | |
| H | P368M20-1610 | - | Taper Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 1610 | - | €234.38 | |

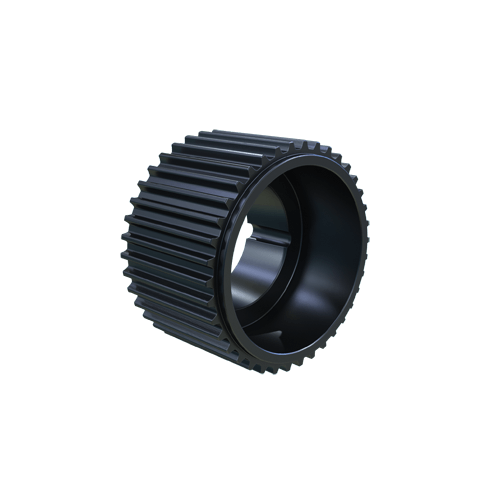

| N | P388M20-1610 | - | TB Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 1610 | 4.156" | €241.94 | |
| H | P408M20-1610 | - | Taper Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 2012 | 4.34" | €257.05 | |
| O | P568M20-2012 | - | TB Bushed | 1 1/8" | Solid Type DF-1 | 8 mm | 2012 | 5.945" | €385.59 | |
| P | P808M20-2517 | - | Taper Bushed | 1 1/8" | Web Type CF-2 | 0.31496" | 2517 | 8.38" | €447.14 | |
| Q | P908M20-2517 | - | Taper Bushed | 1 1/8" | Web Type C-2 | 0.31496" | 2517 | - | €460.09 | |
| R | P248M30-1108 | - | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1108 | - | €204.14 | |

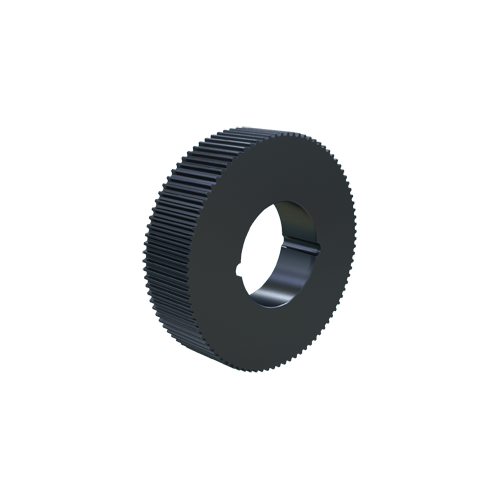

| S | P908M50-3020 | - | Taper Bushed | 2 3/8" | Solid Type W-1 | 0.31496" | 3020 | - | €602.68 | |
| B | P268M20-1108 | - | Taper Bushed | 1 1/8" | Solid Type KF-1 | 8 mm | 1108 | - | €204.14 | |
| T | P408M30-2012 | - | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 2012 | 4.344" | €294.85 | |
| H | P368M50-1610 | - | Taper Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 1610 | - | €321.32 | |
| U | P568M30-2012 | - | TB Bushed | 1 1/2" | Solid Type DF-1 | 8 mm | 2012 | 5.945" | €393.13 | |
| L | P808M30-2517 | - | TB Bushed | 1 1/2" | Solid Type CF-2 | 8 mm | 2517 | - | €460.09 | |
| V | P908M30-2517 | - | TB Bushed | 1 1/2" | Type C-2 Web | 8 mm | 2517 | - | €473.06 | |
| W | P288M50-1108 | - | TB Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 1210 | 3.161" | €302.42 | |
| H | P308M50-1210 | - | Taper Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 1210 | 3.34" | €309.97 | |
| X | P368M30-1610 | - | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1610 | 3.938" | €257.05 | |
| Y | P388M30-1610 | - | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1610 | 4.156" | €264.63 | |
| Z | P348M50-1610 | - | TB Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 1610 | - | €317.54 | |
| A1 | P328M50-1210 | - | TB Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 1610 | 3.562" | €313.75 | |
| B1 | P348M30-1610 | - | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1610 | - | €238.16 | |
| H | P328M30-1210 | - | Taper Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1210 | 3.56" | €234.38 | |
| C1 | P388M50-1610 | - | TB Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 1610 | 4.156" | €325.12 | |
| L | P408M50-2012 | - | TB Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 2012 | 4.344" | €332.66 | |
| H | P308M30-1210 | - | Taper Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 1210 | 3.34" | €226.81 | |
| D1 | P448M30-2012 | 4.411" | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 2012 | - | €325.12 | |
| E1 | P448M85-2012 | 4.411" | Taper Bushed | 3 3/4" | Solid Type WF-1 | 0.31496" | 2012 | 4.357" | €415.82 | |
| F1 | P448M50-2012 | 4.411" | TB Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 2012 | - | €355.34 | |
| H | P448M20-2012 | 4.411" | Taper Bushed | 1 1/8" | Solid Type CF-1 | 8 mm | 2012 | - | €298.63 | |
| G1 | P488M30-2012 | 4.812" | TB Bushed | 1 1/2" | Solid Type KF-1 | 8 mm | 2012 | 5.156" | €351.57 | |
| H1 | P488M50-2012 | 4.812" | TB Bushed | 2 3/8" | Solid Type KF-1 | 8 mm | 2012 | 5.156" | €370.48 | |
| I1 | P488M85-2012 | 4.812" | Taper Bushed | 3 3/4" | Solid Type WF-1 | 0.31496" | 2012 | 4.758" | €388.81 | |

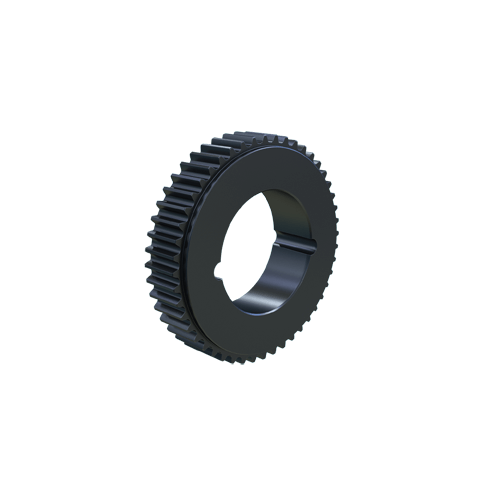

| J1 | P488M20-2012 | 4.812" | TB Bushed | 1 1/8" | Solid Type CF-1 | 8 mm | 2012 | 5.156" | €347.79 | |
| G | P648M85-2517 | 6.416" | Taper Bushed | 3 3/4" | Solid Type WF-1 | 0.31496" | 2517 | - | €528.16 | |
| H | P648M50-2517 | 6.416" | Taper Bushed | 2 3/8" | Solid Type KF-1 | 0.31496" | 2517 | - | €421.24 | |
| K1 | P648M30-2517 | 6.416" | TB Bushed | 1 1/2" | Solid Type CF-1 | 8 mm | 2517 | - | €476.29 | |
| H | P648M20-2012 | 6.416" | Taper Bushed | 1 1/8" | Solid Type CF-1 | 0.31496" | 2012 | - | €472.55 | |
| H | P728M20-2012 | 7.218" | Taper Bushed | 1 1/8" | Solid Type CF-1 | 0.31496" | 2012 | 7.56" | €483.86 | |
| H | P728M50-2517 | 7.218" | Taper Bushed | 2 3/8" | Solid Type KF-1 | 0.31496" | 2517 | 7.56" | €466.59 | |
| H | P728M30-2517 | 7.218" | Taper Bushed | 1 1/2" | Solid Type CF-1 | 0.31496" | 2517 | 7.56" | €447.14 | |
| C | P728M85-3020 | 7.218" | TB Bushed | 3 3/4" | Solid Type WF-1 | 8 mm | 3020 | 7.562" | €573.51 | |
| L1 | P1128M30-2517 | 11.229" | Taper Bushed | 1 1/2" | Arms Type C-3 | 0.31496" | 2517 | - | €602.68 | |
| M1 | P1128M85-3020 | 11.229" | Taper Bushed | 3 3/4" | Arms Type W-3 | 0.31496" | 3020 | - | €997.98 | |
| N1 | P1128M50-3020 | 11.229" | Taper Bushed | 2 3/8" | Arms Type W-3 | 0.31496" | 3020 | - | €758.20 | |
| L1 | P1448M85-3535 | 14.437" | Taper Bushed | 3 3/4" | Arms Type W-3 | 0.31496" | 3535 | - | €1,393.27 |
