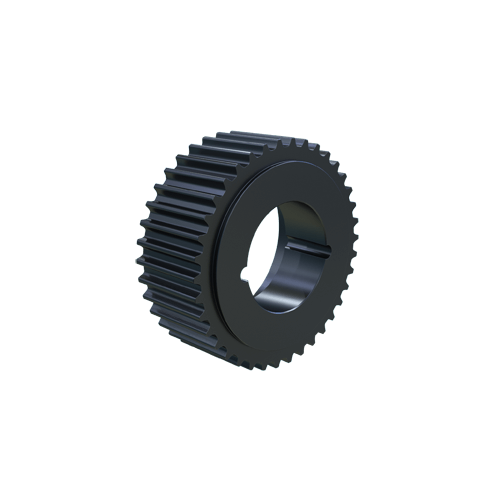

MARTIN SPROCKET P3814M55-2517 Sprocket, 2517 Bushing, 2.5 Inch Max Bore, 38 Teeth, 6.667 Inch Pitch Dia., Cast Iron
6.667"
Get it by Tuesday, Sep 1
€453.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Bore Dia. | 1/2" to 2 1/2" |
| Bore Type | Taper Bushed |
| Bushing Type | 2517 |
| Face Width | 2 3/4" |
| Flange Dia. | 7.16" |
| Length | 2 3/4" |
| Material | Cast Iron |
| No. Of Grooves | 38 |
| No. Of Teeth | 38 |
| Outside Dia. | 6.5595" |
| Pitch | 0.55118" |
| Pitch Dia. | 6.667" |
| Suitable For Use With | RPP, RPP Plus, Hawk Pd, HTD belts |
| Type | Solid Type KF-1 |
Shipping Info:
| Ship weight (kg) | 5.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | No. Of Teeth | Pitch Dia. | Pitch | Type | Bore Dia. | Face Width | No. Of Grooves | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P2814M40-2012 | Steel | 28 | 4.912" | 0.55118" | Solid Type KF-1 | 1/2" to 2" | 2 1/8" | 28 | €321.32 | |
 |
P2914M40-2012 | Steel | 29 | 5.088" | 0.55118" | Solid Type KF-1 | 1/2" to 2" | 2 1/8" | 29 | €340.23 | |
|
P3014M40-2012 | Steel | 30 | 5.263" | 0.55118" | Solid Type KF-1 | 1/2" to 2" | 2 1/8" | 30 | €351.57 | |
 |
P3214M40-2012 | Steel | 32 | 5.614" | 14 mm | Solid Type KF-1 | 1/2" to 2 1/8" | 2 1/8" | 32 | €385.59 | |
 |
P3414M40-2012 | Cast Iron | 34 | 5.965" | 14 mm | Solid Type KF-1 | 1/2" to 2 1/8" | 2 1/8" | 34 | €396.92 | |
 |
P3614M40-2517 | Cast Iron | 36 | 6.316" | 0.55118" | Solid Type KF-1 | 1/2" to 2 1/2" | 2 1/8" | 36 | €434.71 | |
 |
P3814M40-2517 | Cast Iron | 38 | 6.667" | 0.55118" | Solid Type KF-1 | 1/2" to 2 1/2" | 2 1/8" | 38 | €491.44 |
