MARTIN SPROCKET Taper Bushed Type High Torque Sprockets, 14MM Belt Pitch
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1| Style | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Bore Type | Face Width | Type | Pitch | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P3014M55-2517 | - | - | - | - | - | - | - | - | €408.28 | |
| B | P7214M55-3020 | 0.938" to 3" | 12.632" | 12.5255" | Taper Bushed | 2 3/4" | Web Type WF-2 | 0.55118" | 3020 | €939.65 | |
| C | P9014M55-3020 | 0.938" to 3" | 15.79" | 15.6835" | Taper Bushed | 2 3/4" | Arms Type W-3 | 0.55118" | 3020 | €1,117.85 | |
| D | P4014M115-3020 | 0.938" to 3" | 7.018" | 6.9105" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 3020 | €673.96 | |
| D | P6414M40-3020 | 0.938" to 3" | 11.229" | 11.122" | Taper Bushed | 2 1/8" | Web Type WF-2 | 0.55118" | 3020 | €842.45 | |
| D | P6814M40-3020 | 0.938" to 3" | 11.93" | 11.823" | Taper Bushed | 2 1/8" | Web Type WF-2 | 0.55118" | 3020 | €858.66 | |
| D | P7214M40-3020 | 0.938" to 3" | 12.632" | 12.5255" | Taper Bushed | 2 1/8" | Web Type WF-2 | 0.55118" | 3020 | €881.33 | |
| E | P8014M40-3020 | 0.938" to 3" | 14.036" | 13.9295" | Taper Bushed | 2 1/8" | Arms Type WF-3 | 0.55118" | 3020 | €907.25 | |
| F | P4814M55-3020 | 0.938" to 3" | 8.421" | 8.314" | Taper Bushed | 2 3/4" | Solid Type KF-1 | 0.55118" | 3020 | €550.83 | |
| G | P3614M85-3020 | 0.938" to 3" | 6.316" | 6.2085" | Taper Bushed | 4" | Solid Type WF-1 | 0.55118" | 3020 | €498.97 | |
| H | P8014M55-3020 | 0.938" to 3" | 14.036" | 13.9295" | Taper Bushed | 2 3/4" | Arms Type WF-3 | 0.55118" | 3020 | €1,095.17 | |
| I | P11214M55-3020 | 0.938" to 3" | 19.65" | 19.5435" | Taper Bushed | 2 3/4" | Arms Type W-3 | 0.55118" | 3020 | €1,312.27 | |
| J | P14414M40-3020 | 0.938" to 3" | 25.264" | 25.158" | Taper Bushed | 2 1/8" | Arms Type W-3 | 0.55118" | 3020 | €1,555.28 | |
| K | P4014M85-3020 | 0.938" to 3" | 7.018" | 6.9105" | Taper Bushed | 4" | Solid Type WF-1 | 0.55118" | 3020 | €544.34 | |
| D | P4414M85-3020 | 0.938" to 3" | 7 18/25" | 7.613" | Taper Bushed | 4" | Solid Type WF-1 | 0.55118" | 3020 | €583.24 | |
| D | P3614M115-3020 | 0.938" to 3" | 6.316" | 6.2085" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 3020 | €615.64 | |
| L | P11214M40-3020 | 0.938" to 3" | 19.65" | 19.5435" | Taper Bushed | 2 1/8" | Arms Type W-3 | 0.55118" | 3020 | €1,182.66 | |
| D | P5614M55-3020 | 0.938" to 3" | 9.825" | 9.718" | Taper Bushed | 2 3/4" | Solid Type KF-1 | 0.55118" | 3020 | €583.24 | |
| D | P6014M55-3020 | 0.938" to 3" | 10.527" | 10.42" | Taper Bushed | 2 3/4" | Web Type WF-2 | 0.55118" | 3020 | €777.65 | |
| M | P6414M55-3020 | 0.938" to 3" | 11.229" | 11.122" | Taper Bushed | 2 3/4" | Web Type WF-2 | 0.55118" | 3020 | €891.06 | |
| H | P6814M55-3020 | 0.938" to 3" | 11.93" | 11.823" | Taper Bushed | 2 3/4" | Web Type WF-2 | 0.55118" | 3020 | €923.44 | |
| N | P3814M115-3020 | 0.938" to 3" | 6.667" | 6.5595" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 3020 | €648.02 | |
| D | P5214M55-3020 | 0.938" to 3" | 9.123" | 9.016" | Taper Bushed | 2 3/4" | Solid Type KF-1 | 0.55118" | 3020 | €576.76 | |
| L | P14414M55-3020 | 0.938" to 3" | 25.264" | 25.158" | Taper Bushed | 2 3/4" | Arms Type W-3 | 0.55118" | 3020 | €1,684.89 | |
| O | P4414M170-3535 | 1.188" to 3.5" | 7 18/25" | 7.613" | Taper Bushed | 7 3/8" | Solid Type WF-1 | 0.55118" | 3535 | €972.05 | |
| D | P6814M85-3535 | 1.188" to 3.5" | 11.93" | 11.823" | Taper Bushed | 4" | Solid Type KF-1 | 0.55118" | 3535 | €1,020.65 | |
| P | P4814M170-3535 | 1.188" to 3.5" | 8.421" | 8.314" | Taper Bushed | 7 3/8" | Solid Type WF-1 | 0.55118" | 3535 | €978.55 | |
| Q | P9014M85-3535 | 1.188" to 3.5" | 15.79" | 15.6835" | Taper Bushed | 4" | Arms Type W-3 | 0.55118" | 3535 | €1,263.67 | |
| H | P8014M85-3535 | 1.188" to 3.5" | 14.036" | 13.9295" | Taper Bushed | 4" | Web Type WF-2 | 0.55118" | 3535 | €1,231.26 | |
| R | P7214M85-3535 | 1.188" to 3.5" | 12.632" | 12.5255" | Taper Bushed | 4" | Solid Type KF-1 | 0.55118" | 3535 | €1,036.87 | |
| S | P6414M85-3535 | 1.188" to 3.5" | 11.229" | 11.122" | Taper Bushed | 4" | Solid Type KF-1 | 0.55118" | 3535 | €972.05 | |
| T | P5614M85-3535 | 1.188" to 3.5" | 9.825" | 9.718" | Taper Bushed | 4" | Solid Type KF-1 | 0.55118" | 3535 | €793.84 | |
| D | P5214M85-3535 | 1.188" to 3.5" | 9.123" | 9.016" | Taper Bushed | 4" | Solid Type KF-1 | 0.55118" | 3535 | €712.84 | |
| U | P19214M55-3535 | 1.188" to 3.5" | 33.686" | 33.5805" | Taper Bushed | 2 3/4" | Arms Type C-3 | 0.55118" | 3535 | €2,721.75 | |
| D | P6014M85-3535 | 1.188" to 3.5" | 10.527" | 10.42" | Taper Bushed | 4" | Solid Type KF-1 | 0.55118" | 3535 | €939.65 | |
| V | P4814M115-3535 | 1.188" to 3.5" | 8.421" | 8.314" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 3535 | €764.69 | |

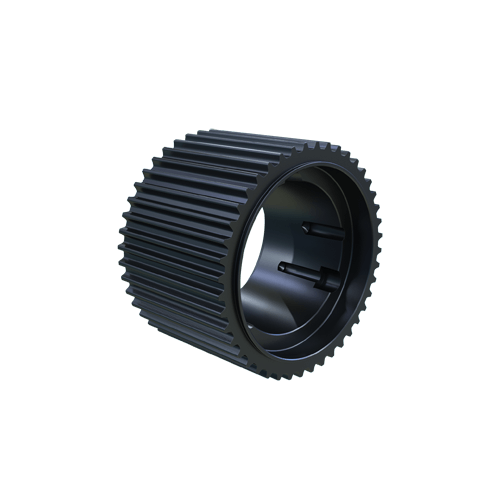

| W | P4414M115-3535 | 1.188" to 3.5" | 7 18/25" | 7.613" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 3535 | €712.84 | |
| L | P14414M85-4040 | 1.438" to 4" | 25.264" | 25.158" | Taper Bushed | 4" | Arms Type W-3 | 0.55118" | 4040 | €1,911.70 | |
| L | P19214M85-4040 | 1.438" to 4" | 33.686" | 33.5805" | Taper Bushed | 4" | Arms Type W-3 | 0.55118" | 4040 | €3,045.74 | |

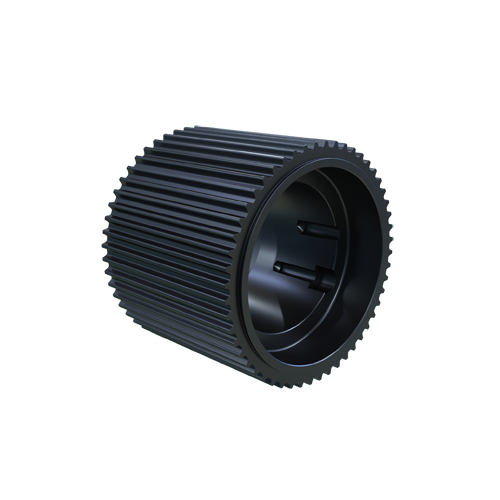

| X | P5214M170-4040 | 1.438" to 4" | 9.123" | 9.016" | Taper Bushed | 7 3/8" | Solid Type WF-1 | 0.55118" | 4040 | €1,036.87 | |
| D | P5214M115-4040 | 1.438" to 4" | 9.123" | 9.016" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 4040 | €891.06 | |
| D | P5614M115-4040 | 1.438" to 4" | 9.825" | 9.718" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 4040 | €923.44 | |

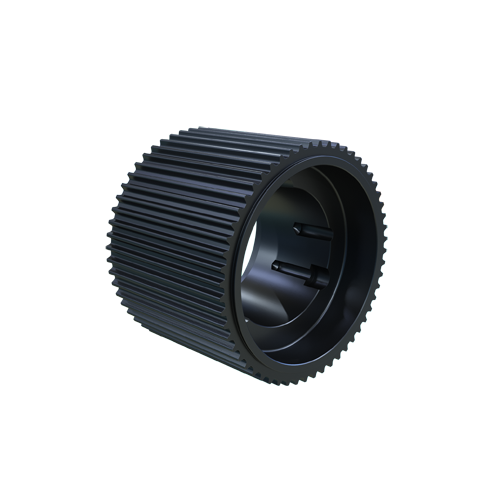

| Y | P5614M170-4040 | 1.438" to 4" | 9.825" | 9.718" | Taper Bushed | 7 3/8" | Solid Type WF-1 | 0.55118" | 4040 | €1,069.26 | |
| Z | P16814M85-4040 | 1.438" to 4" | 29.475" | 29.369" | Taper Bushed | 4" | Arms Type W-3 | 0.55118" | 4040 | €2,527.34 | |
| A1 | P6014M115-4040 | 1.438" to 4" | 10.527" | 10.42" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 4040 | €1,101.66 | |
| B1 | P6014M170-4545 | 1.938" to 4.5" | 10.527" | 10.42" | Taper Bushed | 7 3/8" | Solid Type WF-1 | 0.55118" | 4545 | €1,393.27 | |
| C1 | P6414M115-4545 | 1.938" to 4.5" | 11.229" | 11.122" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 4545 | €1,182.66 | |
| D1 | P14414M115-4545 | 1.938" to 4.5" | 25.2645" | 25.158" | Taper Bushed | 5 1/4" | Arms Type W-3 | 0.55118" | 4545 | €2,527.34 | |
| E1 | P9014M115-4545 | 1.938" to 4.5" | 15.79" | 15.6835" | Taper Bushed | 5 1/4" | Web Type WF-2 | 0.55118" | 4545 | €1,620.08 | |
| F1 | P7214M115-4545 | 1.938" to 4.5" | 12.6325" | 12.5255" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 4545 | €1,263.67 | |
| G1 | P16814M115-4545 | 1.938" to 4.5" | 29.4755" | 29.369" | Taper Bushed | 5 1/4" | Arms Type W-3 | 0.55118" | 4545 | €3,142.96 | |
| H1 | P6814M170-4545 | 1.938" to 4.5" | 11.93" | 11.823" | Taper Bushed | 7 3/8" | Solid Type WF-1 | 0.55118" | 4545 | €1,587.69 | |
| D | P6814M115-4545 | 1.938" to 4.5" | 11.93" | 11.823" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 4545 | €1,237.74 | |
| I1 | P7214M170-4545 | 1.938" to 4.5" | 12.632" | 12.5255" | Taper Bushed | 7 3/8" | Solid Type WF-1 | 0.55118" | 4545 | €1,684.89 | |
| J1 | P8014M115-4545 | 1.938" to 4.5" | 14.036" | 13.9295" | Taper Bushed | 5 1/4" | Web Type WF-2 | 0.55118" | 4545 | €1,458.07 | |
| K1 | P9014M170-4545 | 1.938" to 4.5" | 15.79" | 15.6835" | Taper Bushed | 7 3/8" | Web Type W-2 | 0.55118" | 4545 | €1,976.53 | |
| L1 | P3214M115-2517 | 1/2" to 2 1/2" | 5.614" | 5.5065" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 2517 | €557.30 | |
| M1 | P3414M115-2517 | 1/2" to 2 1/2" | 5.965" | 5.8575" | Taper Bushed | 5 1/4" | Solid Type WF-1 | 0.55118" | 2517 | €592.95 | |
| D | P3614M55-2517 | 1/2" to 2 1/2" | 6.316" | 6.2085" | Taper Bushed | 2 3/4" | Solid Type KF-1 | 0.55118" | 2517 | €405.04 | |
| N1 | P3414M55-2517 | 1/2" to 2 1/2" | 5.965" | 5.8575" | Taper Bushed | 2 3/4" | Solid Type KF-1 | 0.55118" | 2517 | €453.62 | |
| O1 | P3614M40-2517 | 1/2" to 2 1/2" | 6.316" | 6.2085" | Taper Bushed | 2 1/8" | Solid Type KF-1 | 0.55118" | 2517 | €434.71 |
