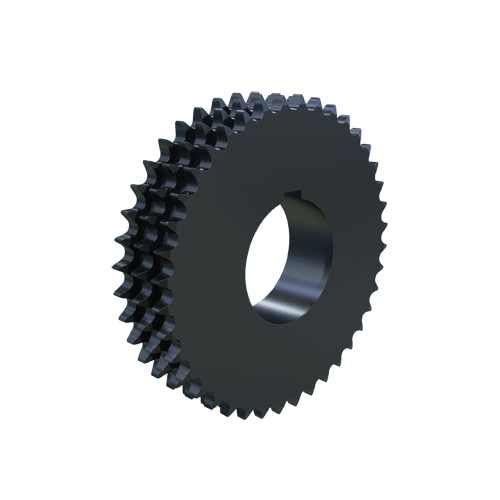

MARTIN SPROCKET E60R40 Roller Chain Sprocket, 60 Chain, Bushed MST, 40 Teeth, 9.559 Inch Pitch Dia., Steel
Get it by Tuesday, Aug 25
€831.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | R1 |
| Bushing Size | R1 |
| Bushing Type | MST R1 |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" |
| Length Through Bore | 2.2325" , 2.238" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 40 |
| Outside Dia. | 9.98" |
| Pitch | 3/4" |
| Pitch Dia. | 9.5591" |
| Single Strand Tooth Thickness | 0.444" |
| Storage Dimension Height | 2 6/25" |
| Storage Dimension Length | 9.98" |
| Storage Dimension Width | 9.98" |
| Type | Type 25 Triple Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 5.69 |
| Ship length (cm) | 25.35 |
| Ship width (cm) | 25.35 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E60P13H | 3.1339" | 13 | 3.844" | 3/4" to 1 3/4" | #60 | 3.493" | 3.493" | 3 21/25" | €275.29 | |
 |
E60P14H | 3.3705" | 14 | 3" | 3/4" to 1 3/4" | #60 | 3.736" | 3.736" | 3" | €296.33 | |
 |
E60P15H | 3.6073" | 15 | 3" | 3/4" to 1 3/4" | #60 | 3.978" | 3.978" | 3" | €317.51 | |
 |
E60P16H | 3.8444" | 16 | 2.2325" | 1/2" to 1 3/4" | #60 | 4.221" | 4.221" | 2 6/25" | €338.68 | |
|
E60Q17H | 4.0816" | 17 | 4" | 0.75" to 2.688" | #60 | 4.462" | 4.462" | 4" | €359.89 | |
|
E60Q18H | 4.3191" | 18 | 1 3/4" | 0.75" to 2.688" | #60 | 4.703" | 4.703" | 3 4/25" | €381.08 | |
 |
E60Q19H | 4.5567" | 19 | 1 3/4" | 0.75" to 2.688" | #60 | 4.945" | 4.945" | 3 4/25" | €402.26 |
