MARTIN SPROCKET E50R72 Roller Chain Sprocket, 50 Chain, Bushed MST, 72 Teeth, 14.329 Inch Pitch Dia., Steel
Get it by Tuesday, Aug 25
€944.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Bushed |
| Bushing Part Number | R1 |
| Bushing Size | R1 |
| Bushing Type | MST R1 |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | #50 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Dia. | 5 1/2" |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Key Way Size | 3/4" |
| Keyway Width | 3/4" |
| Length Through Bore | 2" |
| Length Thru Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 72 |
| Outside Dia. | 14.69" |
| Pitch | 5/8" |
| Pitch Dia. | 14.3285" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 14.69" |
| Storage Dimension Width | 14.69" |
| Type | Type 22 Triple Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 27.95 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 37.31 |
| Ship width (cm) | 37.31 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

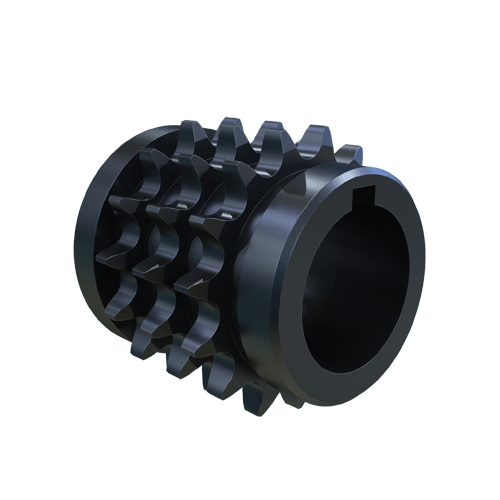

E50P15H | 3.0061" | 15 | 3 1/4" | 3/4" to 1 3/4" | #50 | 3.315" | 3.315" | 3 1/4" | €238.49 | |
 |

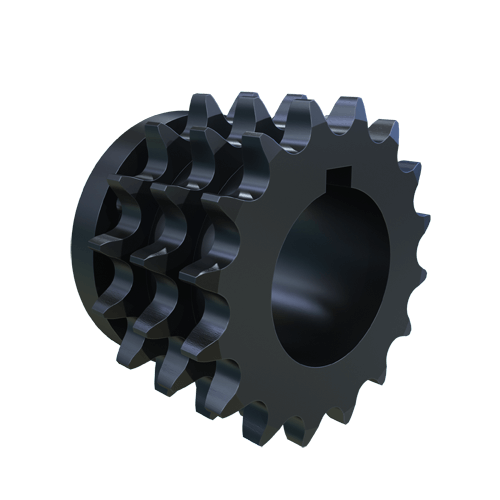

E50P16H | 3.2036" | 16 | 2 1/2" | 3/4" to 1 3/4" | #50 | 3.517" | 3.517" | 2 1/2" | €254.40 | |
 |
E50P18H | 3.5992" | 18 | 2 1/2" | 3/4" to 1 3/4" | #50 | 3 23/25" | 3 23/25" | 2 1/2" | €286.16 | |
 |

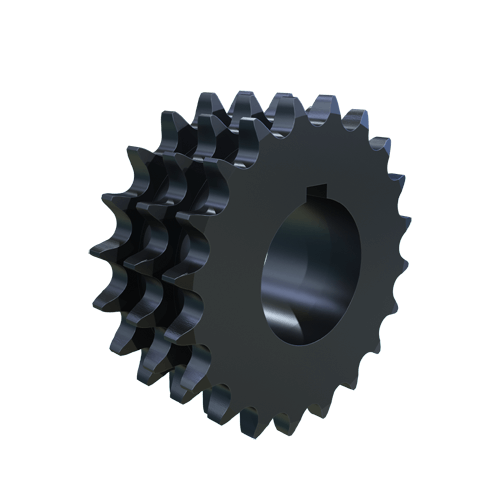

E50P20H | 3.9953" | 20 | 1.753" | 1/2" to 1 3/4" | #50 | 4.321" | 4.321" | 1 19/25" | €317.79 | |
 |

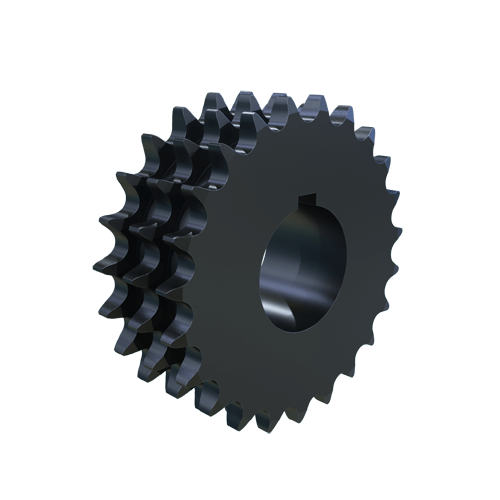

E50P23H | 4.59" | 23 | 1.753" | 1/2" to 1 3/4" | #50 | 4.922" | 4.922" | 1 19/25" | €365.48 | |
 |
E50Q24H | 4.788" | 24 | 2 1/2" | 0.75" to 2.688" | 50 | 5.122" | 5.122" | 1 3/4" | €381.50 | |
 |

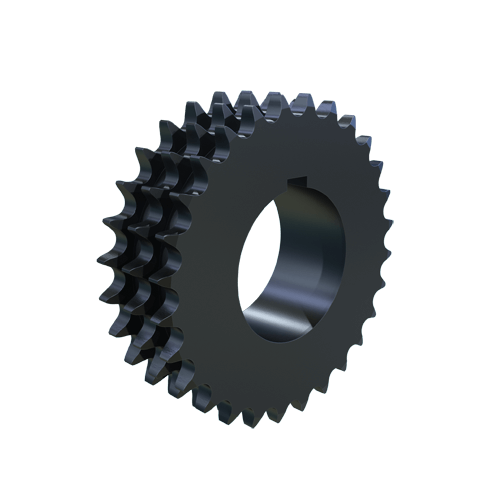

E50Q28H | 5.5821" | 28 | 1.753" | 0.75" to 2.688" | #50 | 5.922" | 5.922" | 1 3/4" | €444.78 |
