MARTIN SPROCKET E40Q76 Sprocket, MST, 40 Chain, 76 Teeth, 12.099 Inch Pitch Dia., 12.389 Inch O.D., Steel
12.389"
Get it by Thursday, Dec 18
€644.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Keyway Width | 1/2" |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 3 |
| Number Of Teeth | 76 |
| Outside Dia. | 12.389" |
| Pitch | 1/2" |
| Pitch Dia. | 12.0992" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 12.389" |
| Storage Dimension Width | 12.389" |
Shipping Info:
| Ship weight (kg) | 18.78 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 31.47 |
| Ship width (cm) | 31.47 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

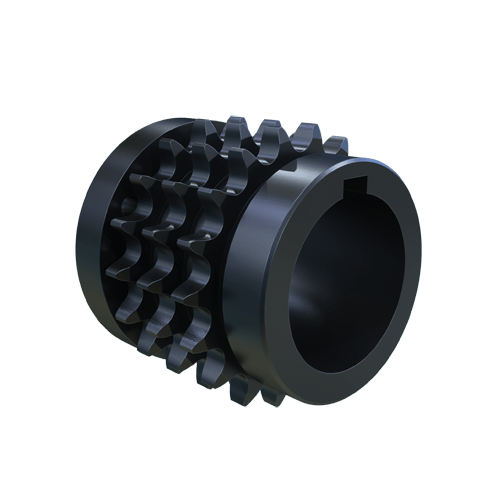

E40P18H | 18 | 2.8794" | 3.136" | 2 7/8" | MST P1 | 40 | 1/2" | Bushed | €214.16 | |
 |
E40P20H | 20 | 3.1962" | 3.457" | 2 1/8" | MST P1 | 40 | 1/2" | Bushed | €237.77 | |
 |

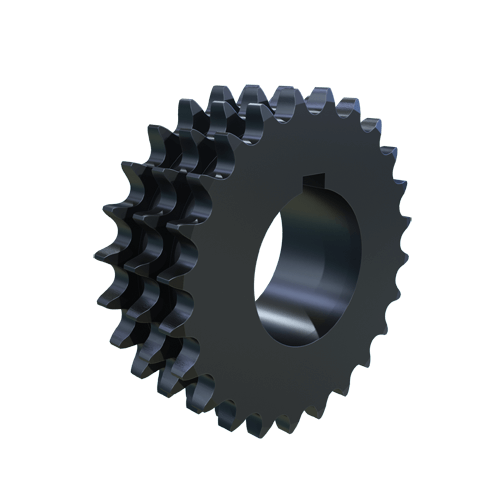

E40P24H | 24 | 3.8306" | 4.098" | 1.4025" | MST P1 | 40 | 1/2" | Bushed | €285.45 | |
 |

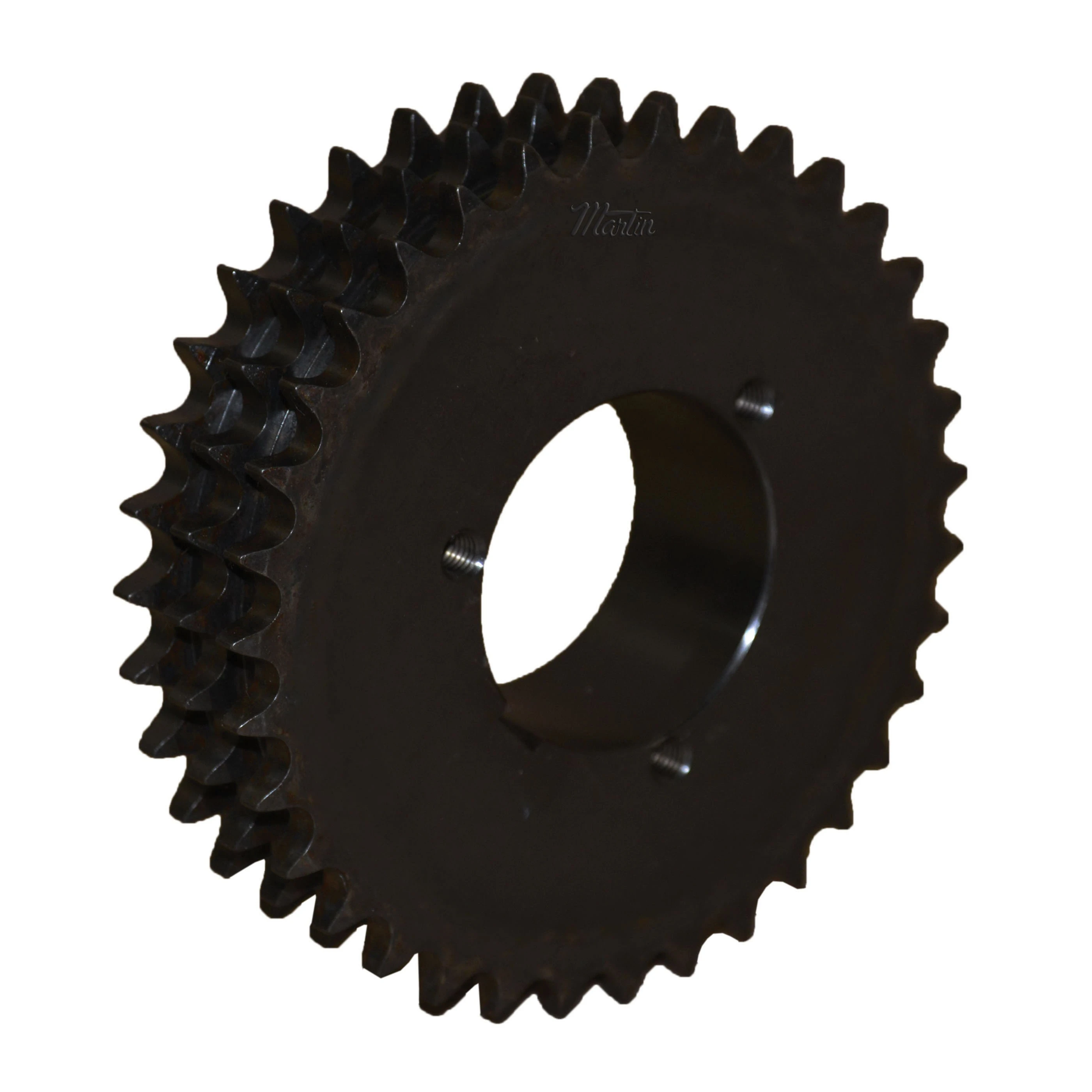

E40Q30H | 30 | 4.7834" | 5.057" | 1 3/4" | MST Q1 | 40 | 1/2" | Bushed | €356.88 | |
 |
E40Q35H | 35 | 5.5779" | 5.855" | 1 3/4" | MST Q1 | 40 | 1/2" | Bushed | €416.00 | |
 |

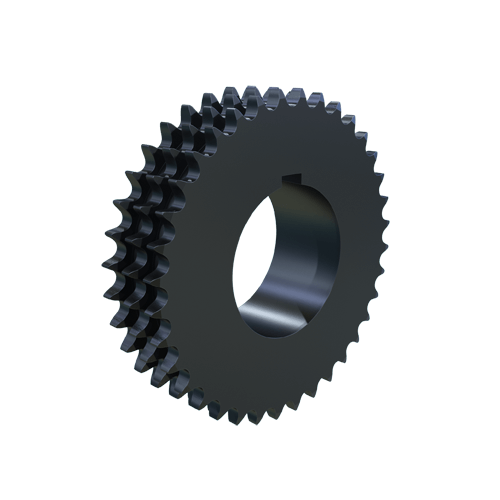

E40Q36H | 36 | 5.7369" | 6.015" | 2 1/2" | Type Q1 Split Taper | 40 | 1/2" | Bushed | €428.18 | |
 |

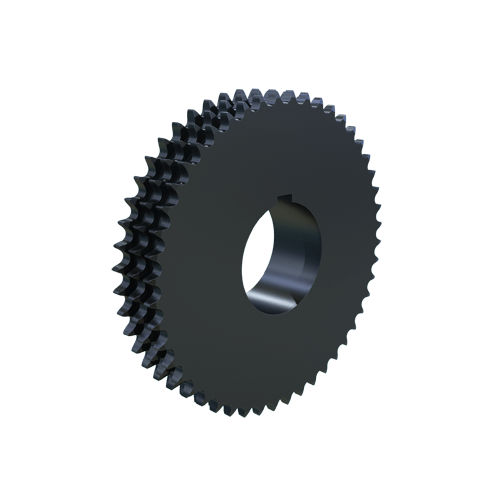

E40Q48H | 48 | 7.6449" | 7.929" | 1 3/4" | MST Q1 | 40 | 1/2" | Bushed | €419.39 |
