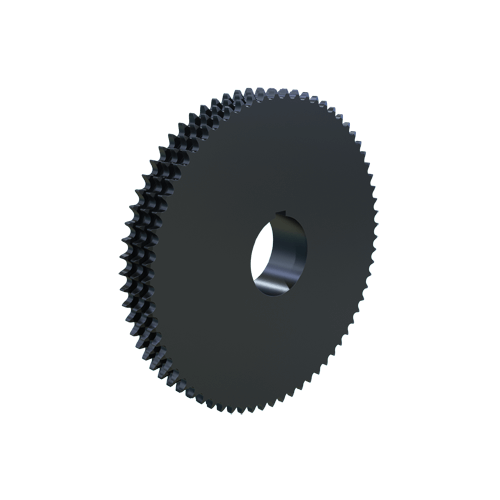

MARTIN SPROCKET E40Q68 Sprocket, MST, 40 Chain, 68 Teeth, 10.826 Inch Pitch Dia., 11.115 Inch O.D., Steel
11.115"
Get it by Tuesday, Aug 25
€549.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | MST Q1 |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | B |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Keyway Width | 1/2" |
| Length Through Bore | 1 3/4" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 3 |
| No. Of Teeth | 68 |
| Outside Dia. | 11.115" |
| Pitch | 1/2" |
| Pitch Dia. | 10.8264" |
| Single Strand Tooth Thickness | 0.275" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 11.115" |
| Storage Dimension Width | 11.115" |
| Type | Type 22 Triple Strand Solid Bushed |
Shipping Info:
| Ship weight (kg) | 14.78 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 28.24 |
| Ship width (cm) | 28.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E40P18H | 2.8794" | 18 | 2 7/8" | 1/2" to 1 3/4" | #40 | 3.136" | 3.136" | 2 22/25" | €214.16 | |
 |
E40P20H | 3.1962" | 20 | 2 1/8" | 1/2" to 1 3/4" | #40 | 3.457" | 3.457" | 2.13" | €237.77 | |
 |
E40P24H | 3.8306" | 24 | 1.4025" | 1/2" to 1 3/4" | #40 | 4.098" | 4.098" | 1.41" | €285.45 | |
 |
E40Q30H | 4.7834" | 30 | 1 3/4" | 0.75" to 2.688" | #40 | 5.057" | 5.057" | 1 3/4" | €356.88 | |
 |
E40Q35H | 5.5779" | 35 | 1 3/4" | 0.75" to 2.688" | #40 | 5.855" | 5.855" | 1 3/4" | €416.00 | |
 |
E40Q36H | 5.737" | 36 | 2 1/2" | 0.75" to 2.688" | 40 | 6.015" | 6.015" | 1 3/4" | €428.18 | |
 |
E40Q48H | 7.6449" | 48 | 1 3/4" | 0.75" to 2.688" | #40 | 7.929" | 7.929" | 1 3/4" | €419.39 |
