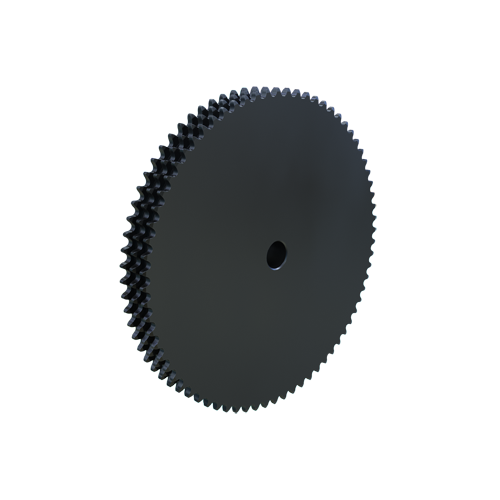

MARTIN SPROCKET E35B72 Sprocket, Stock Bore, 35 Chain, 72 Teeth, 8.597 Inch Pitch Dia., 8.814 Inch O.D., Steel
8.814"
Get it by Wednesday, Dec 17
€257.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Diameter | 3 1/2" |
| Hub Outside Dia. | 3 1/2" |
| Individually Packaged | No |
| Length Through Bore | 1 7/8" |
| Length Thru Bore | 1 7/8" |
| Material | Steel |
| Max. Bore Size | 2 3/8" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 3 |
| Number Of Teeth | 72 |
| Outside Dia. | 8.814" |
| Pitch | 3/8" |
| Pitch Dia. | 8.5971" |
| Single Strand Tooth Thickness | 0.162" |
| Storage Dimension Height | 1 7/8" |
| Storage Dimension Length | 8.814" |
| Storage Dimension Width | 8.814" |
Shipping Info:
| Ship weight (kg) | 7.74 |
| Ship height (cm) | 4.76 |
| Ship length (cm) | 22.38 |
| Ship width (cm) | 22.38 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E35B13H | 13 | 1.567" | 1.746" | 1 3/4" | 35 | 3/8" | Finished Bore | 3/8" | €97.44 | |
|
E35B14H | 14 | 1.6852" | 1.868" | 1 3/4" | 35 | 3/8" | Finished Bore | 3/8" | €98.62 | |
|
E35B15H | 15 | 1.8037" | 1.989" | 1 3/4" | 35 | 3/8" | Finished Bore | 3/8" | €100.07 | |
|
E35B16H | 16 | 1.9222" | 2.11" | 1 3/4" | 35 | 3/8" | Finished Bore | 3/8" | €101.80 | |
 |
E35B17H | 17 | 2.0408" | 2.231" | 1 3/4" | 35 | 3/8" | Finished Bore | 3/8" | €103.87 | |
 |
E35B18H | 18 | 2 4/25" | 2.352" | 1 3/4" | 35 | 3/8" | Finished Bore | 3/8" | €110.27 | |
|
E35B19H | 19 | 2.2783" | 2.472" | 1 3/4" | 35 | 3/8" | Finished Bore | 3/8" | €110.22 |
