MARTIN SPROCKET E100B25 Sprocket, 100 Chain, 25 Teeth, 9.973 Inch Pitch Dia., 10.645 Inch O.D., Steel
Get it by Thursday, Dec 18
€1,367.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 3/4" |
| Individually Packaged | No |
| Length Through Bore | 4 3/4" |
| Length Thru Bore | 4 3/4" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 3 |
| Number Of Teeth | 25 |
| Outside Dia. | 10.645" |
| Pitch | 1 1/4" |
| Pitch Dia. | 9.9734" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 4 3/4" |
| Storage Dimension Length | 10.645" |
| Storage Dimension Width | 10.645" |
Shipping Info:
| Ship weight (kg) | 32.85 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 27.05 |
| Ship width (cm) | 27.05 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

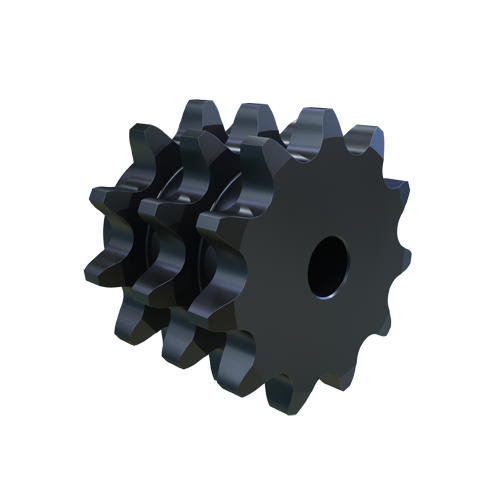

E100B11 | 11 | 4.4368" | 5.007" | 4 1/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €397.82 | |
 |

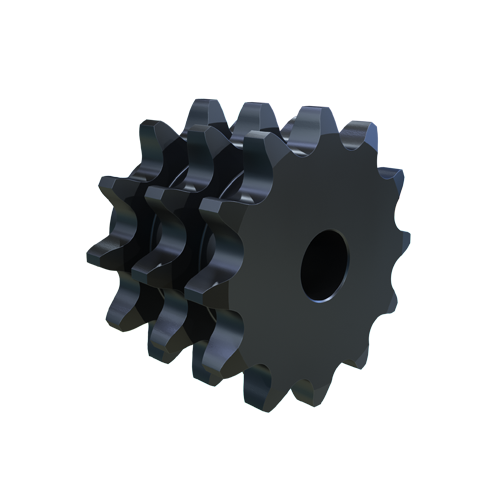

E100B12 | 12 | 4.8296" | 5.415" | 4 1/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €425.08 | |
 |
E100B13 | 13 | 5.2232" | 5.821" | 4 1/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €465.67 | |
|
E100B14 | 14 | 5.6174" | 6.227" | 4 1/4" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €526.38 | |
|
E100B15 | 15 | 6.0122" | 6.631" | 4 1/2" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €581.99 | |
|
E100B16 | 16 | 6.4073" | 7.034" | 4 1/2" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €617.52 | |
|
E100B17 | 17 | 6.8027" | 7.437" | 4 1/2" | 100 | 1 1/4" | Finished Bore | 1 1/4" | €656.99 |
