MARTIN SPROCKET DS50P23H Sprocket, 50 Chain, 23 Teeth, 4.590 Inch Pitch Dia., 4.920 Inch O.D., Steel
Item: AL7DGUModel: DS50P23H
7 In Stock
Ships within 2 days via
€368.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Type | Bushed |
| Bushing Part Number | P1 |
| Bushing Size | P1 |
| Bushing Type | Type P1 Split Taper |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | 50 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Individually Packaged | Yes |
| Key Way Size | 3/8" x 2.064" |
| Length Through Bore | 1 5/16" , 1.656" |
| Material | Steel |
| Max. Bore Size | 1 3/4" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 23 |
| Outside Dia. | 4 23/25" , 4.92" |
| Pitch | 5/8" |
| Pitch Dia. | 4.59" |
| Product Datasheet | martin-sprocket-ds100r17h.pdf |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 2 1/8" |
| Storage Dimension Length | 4 5/8" |
| Storage Dimension Width | 4 5/8" |
| Type | MST Bushed Type B |
Shipping Info:
| Ship weight (kg) | 2.2 |
| Ship height (cm) | 4.22 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 12.5 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Length Through Bore | Type | Bushing Type | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS50H17H | 3.401" | 3 18/25" | 1.656" | MST Bushed Type BH | Type H1 Split Taper | 50 | 5/8" | Bushed | €326.09 | |
 |

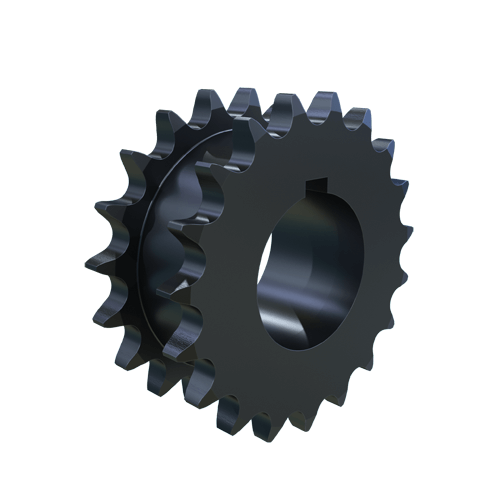

DS50P19H | 3.797" | 4 3/25" | 1.656" | MST Bushed Type B | Type P1 Split Taper | 50 | 5/8" | Bushed | €336.60 | |
 |

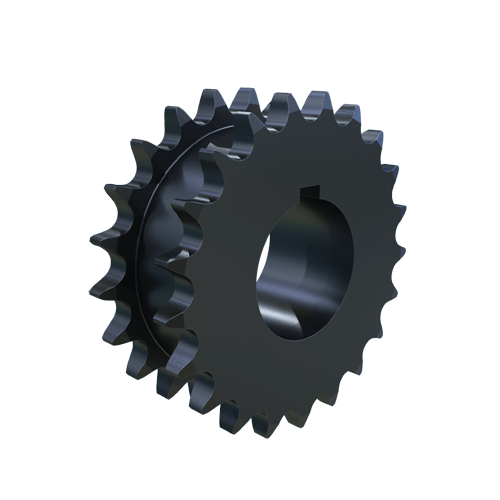

DS50P21H | 4.194" | 4 13/25" | 1.656" | MST Bushed Type B | Type P1 Split Taper | 50 | 5/8" | Bushed | €360.74 | |
|
DS50P24H | 4.788" | 5 3/25" | 1.656" | MST Bushed Type B | Type P1 Split Taper | 50 | 5/8" | Bushed | €379.60 |
