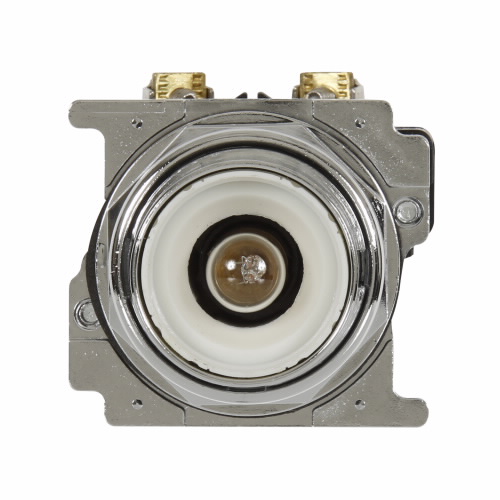

EATON 10250T474 Illuminated Push Button Operator, 30 mm Size, Full Volt, Momentary, No Cap, 12 VAC
Item: BJ4WJRModel: 10250T474Cross Ref: 39P832
7 In Stock
Ships within 2 days via
10.00% off
€304.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Action | Maintained/Momentary |
| Application | Pushbutton |
| Bezel Material | Zinc Die Cast |
| Features | Drainage Holes, Grounding Nibs, One Piece Body |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Head Material | Plastic |
| Height | 1.38" |
| Illumination | Illuminated |
| Ip Rating | IP65 |
| Lamp Bulb Type | Incandescent |
| Lamp Module Type | Full Voltage |
| Lamp Voltage - Maximum | 12V AC/DC |
| Length | 3 1/2" |
| Light Unit Type | Incandescent, Full Voltage |
| Light Unit Voltage | 12V AC/DC |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Notes | Contact Blocks 10250T55 And 10250T57 Cannot Be Used With This Operator |
| Number Of Indicator Lights | 1 |
| Number Of Positions | 3 |
| Number Of Push Buttons | 1 |
| Operating Mode | Intermediate: Maintained Pull: Momentary Push: Momentary |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 1°F |
| Operator Illumination | Illuminated |
| Operator Material | Polymer |
| Overall Depth | 3.5" |
| Overall Height | 1.38" |
| Overall Width | 2 2/5" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Series | 10250T Series |
| Special Features | 10250T Series |
| Standards | Ce, Csa, Ul Listed |
| Terminal Connection | Screw Clamp |
| Type | 30.5 mm Heavy-Duty Watertight/Oiltight |
| Warranty | 1 yr. |
| Width | 2 2/5" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.51 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 6.1 |
| Country of Origin | US |
Product Variants
| Model | Height | Lamp Module Type | Head Material | Terminal Connection | Bezel Material | Contact Form | Bezel | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10250T397LAD24-1 | 3" | Full Voltage | Metal | Screw Clamp | Chrome Plated Zinc Die Cast | 1NO/1NC | Chrome | IP65 | €620.64 | |
| 10250T397LAD24-53 | 1.78" | Full Voltage | Metal | Screw Clamp | Chrome Plated Zinc Die Cast | 1NO | Chrome | IP65 | €465.31 | |
| 10250T397LAD2A-51 | 1.78" | Full Voltage | Metal | Screw Clamp | Chrome Plated Zinc Die Cast | 1NC | Chrome | IP65 | €465.31 | |
| 10250T397LAD24-51 | 1.78" | - | - | - | - | - | Chrome | - | €465.31 | |
| 10250T397LAD2A-1 | 1.78" | Full Voltage | Metal | Screw Clamp | Chrome Plated Zinc Die Cast | 1NO/1NC | Chrome | IP65 | €620.64 | |
| 10250T397LAD2A-53 | 1.78" | Full Voltage | Metal | Screw Clamp | Chrome Plated Zinc Die Cast | 1NO | Chrome | IP65 | €465.31 | |
| 10250T397LGD24-51 | 1.78" | Full Voltage | Metal | Screw Clamp | Chrome Plated Zinc Die Cast | 1NC | Chrome | IP65 | €465.31 |
