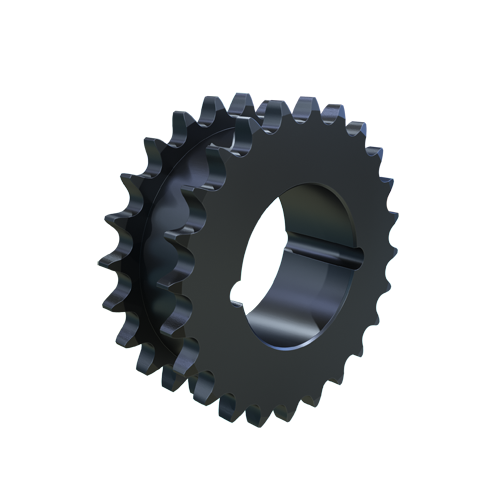

MARTIN SPROCKET DS40ATB24H Sprocket, Taper, 40 Chain, 24 Teeth, 3.831 Inch Pitch Dia., 4.098 Inch O.D., Steel
Item: AJ9LJVModel: DS40ATB24H
7 In Stock
Ships within 2 days via
€244.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 1 5/8" |
| Bore Type | Bushed |
| Bushing Part Number | 1615 |
| Bushing Type | 1615 Taper Lock |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | 40 |
| Construction | Solid |
| Construction Type | Solid |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | A |
| Hub Dia. | 3 17/64" |
| Individually Packaged | Yes |
| Length Through Bore | 1 13/32" |
| Length Thru Bore | 1.406" |
| Material | Steel |
| Max. Bore Size | 1 5/8" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 24 |
| Outside Dia. | 4.098" |
| Pitch | 1/2" |
| Pitch Dia. | 3.8306" , 3.831" |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 7/16" |
| Storage Dimension Length | 4 3/16" |
| Storage Dimension Width | 4 3/16" |
| Type | Double Single TB Bushed Solid Type A |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 3.58 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 10.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Max. Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

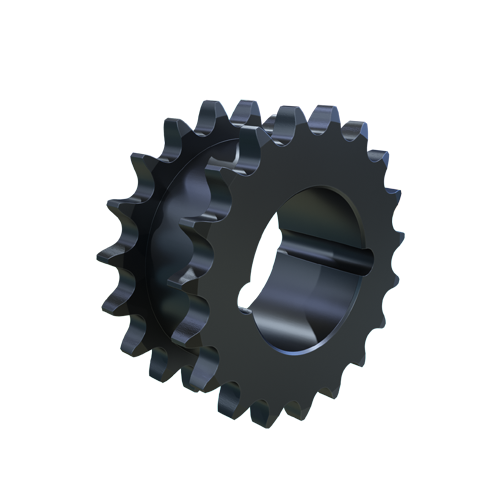

DS40ATB19H | 3.038" | 19 | 2 1/2" | 1/2" to 1 1/4" | 3 3/8" | 3 3/8" | 1 1/2" | 1 1/4" | €200.13 | |
 |

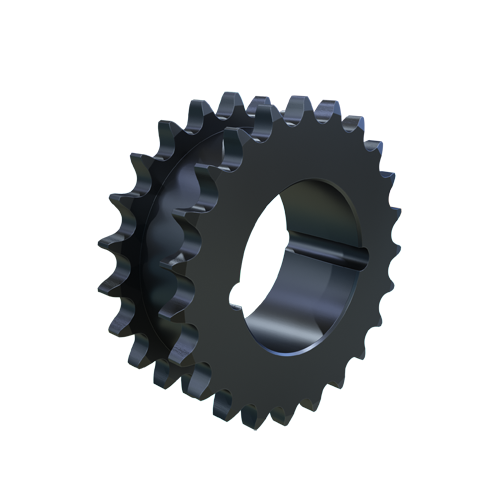

DS40ATB23H | 3.672" | 23 | 3.0938" | 1/2" to 1 5/8" | 4" | 4" | 1 1/2" | 1 5/8" | €228.26 | |
 |
DS40ATB20H | 3.196" | 20 | 2 5/8" | 1/2" to 1 1/4" | 4" | 4" | 1 1/2" | 1 1/4" | €222.09 | |
 |

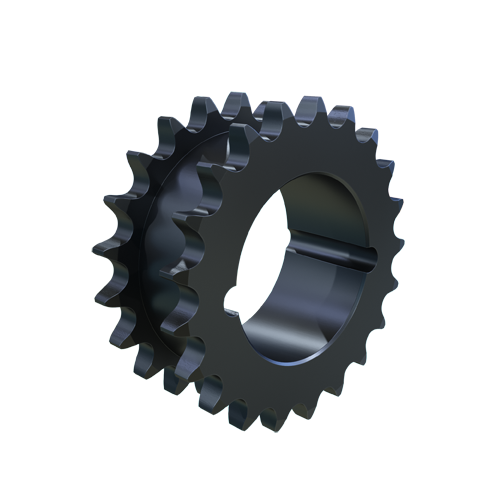

DS40ATB21H | 3.355" | 21 | 2.7813" | 1/2" to 1 5/8" | 4" | 4" | 1 1/2" | 1 5/8" | €225.11 | |
 |

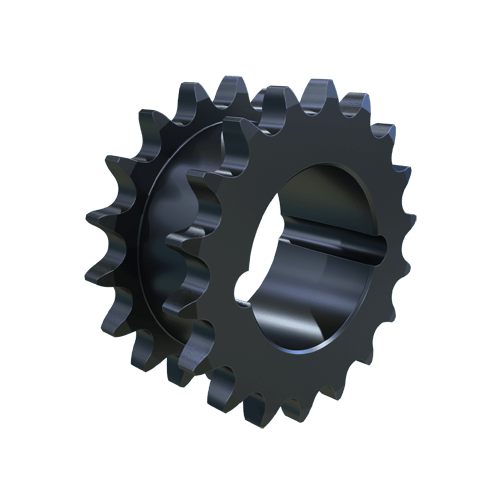

DS40ATB18H | 2.879" | 18 | 2.296" | 1/2" to 1 1/4" | 3.136" | 3.136" | 1.4063" | 1 1/4" | €185.82 |
