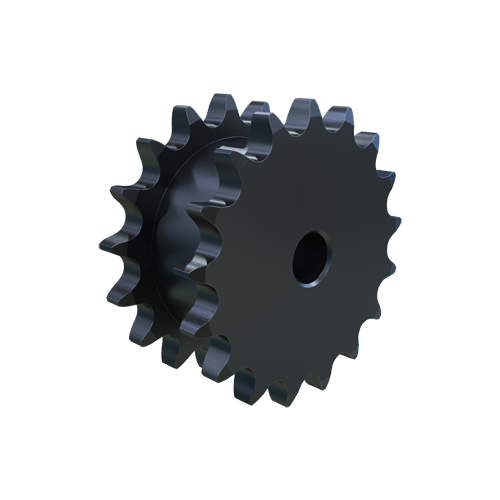

MARTIN SPROCKET DS40A17 Sprocket, Stock Bore, 40 Chain, 17 Teeth, 2.721 Inch Pitch Dia., 2.975 Inch O.D., Steel
Item: AZ8ZJFModel: DS40A17
7 In Stock
Ships within 2 days via
€125.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 1 5/16" |
| Bore Type | Finished Bore |
| Chain Number | 40 |
| Chain Pitch | 1/2" |
| Chain Size | #40 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1/2" |
| For Chain Number | 40 |
| For Chain Pitch | 1/2" |
| Hub Configuration | A |
| Hub Dia. | 2 1/8" |
| Individually Packaged | Yes |
| Length Through Bore | 1 13/32" |
| Length Thru Bore | 1.406" |
| Material | Steel |
| Max. Bore Size | 1.313" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 17 |
| Outside Dia. | 2.975" |
| Pitch | 1/2" |
| Pitch Dia. | 2.7211" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Single Strand Tooth Thickness | 0.284" |
| Storage Dimension Height | 1 1/2" |
| Storage Dimension Length | 3 1/16" |
| Storage Dimension Width | 3 1/16" |
| Type | Type A Double Single Strand Reboreable |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 3.58 |
| Ship length (cm) | 7.57 |
| Ship width (cm) | 7.57 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DS40A24 | 5/8" to 2 1/4" | 3.831" | 4.098" | 3 17/64" | 1.406" | 40 | 1/2" | Finished Bore | €193.97 | |
 |
DS40A15 | 1/2" to 1 1/4" | 2.405" | 2.652" | 1 13/16" | 1.406" | 40 | 1/2" | Finished Bore | €116.45 | |
 |
DS40A20 | 5/8" to 1 3/4" | 3.196" | 3.457" | 2 5/8" | 1.406" | 40 | 1/2" | Finished Bore | €153.23 | |
 |
DS40A18 | 1/2" to 1 1/2" | 2.879" | 3.136" | 2 5/16" | 1.406" | 40 | 1/2" | Finished Bore | €131.29 | |
 |
DS40A23 | 5/8" to 2 1/16" | 3.672" | 3.938" | 3.0938" | 1 13/32" | 40 | 1/2" | Finished Bore | €181.35 | |
 |
DS40A16 | 1/2" to 1 1/4" | 2.5629" | 2.814" | 2" | 1 13/32" | 40 | 1/2" | Finished Bore | €123.01 | |
 |
DS40A22 | 0.625" to 1.813" | 3.513" | 3.778" | 2 15/16" | 1.406" | 40 | 1/2" | Finished Bore | €172.03 |
