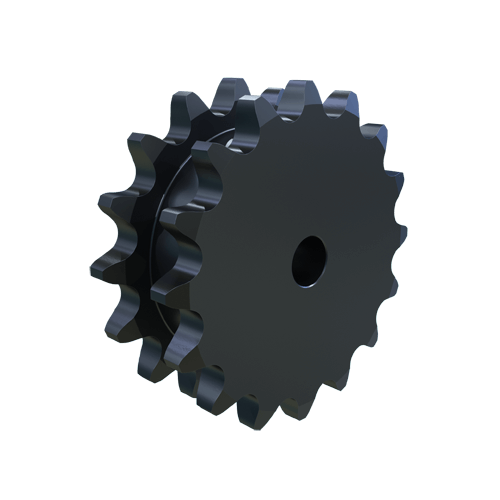

MARTIN SPROCKET DS140A16 Sprocket, 140 Chain, 16 Teeth, 8.970 Inch Pitch Dia., 9.848 Inch O.D., Steel
Get it by Friday, Jul 10
€1,115.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 7/16" to 5 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Chain Size | #140 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 7/16" |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | A |
| Hub Dia. | 7.011" |
| Individually Packaged | No |
| Length Through Bore | 3.354" , 3.604" |
| Material | Steel |
| Max. Bore Size | 5 1/4" |
| Min. Bore Size | 1.438" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 16 |
| Outside Dia. | 9.848" |
| Pitch | 1 3/4" |
| Pitch Dia. | 8.9702" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 3.354" |
| Storage Dimension Length | 9.848" |
| Storage Dimension Width | 9.848" |
| Type | Type A Double Single Strand Reboreable |
Shipping Info:
| Ship weight (kg) | 21.88 |
| Ship height (cm) | 8.52 |
| Ship length (cm) | 25.02 |
| Ship width (cm) | 25.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

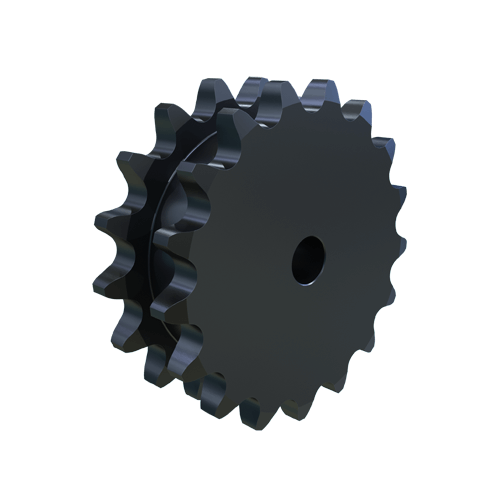

DS140A17 | 1 7/16" to 5 9/16" | 9.5238" | 10.412" | 7.574" | 3.354" | 140 | 1 3/4" | Finished Bore | €1,092.87 | |
 |
DS140A15 | 1 7/16" to 4 7/16" | 8.417" | 9.283" | 6.446" | 3.354" | 140 | 1 3/4" | Finished Bore | €1,041.27 | |
 |
DS140A14 | 1 7/16" to 3 7/8" | 7.8644" | 8.717" | 5 22/25" | 3.354" | 140 | 1 3/4" | Finished Bore | €949.10 | |
 |

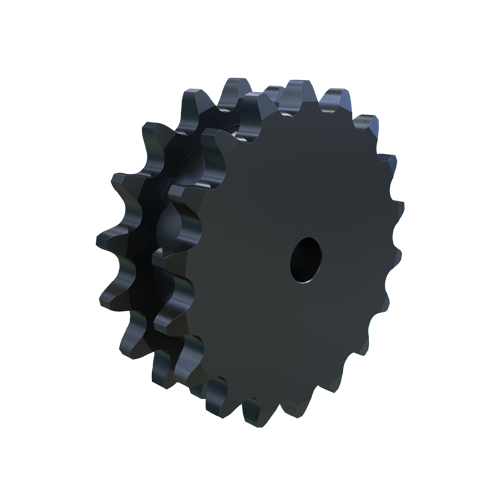

DS140A18 | 1 7/16" to 6 1/8" | 10.0778" | 10.975" | 8.138" | 3.354" | 140 | 1 3/4" | Finished Bore | €1,228.39 |
