MARTIN SPROCKET Double Single Stock Bore Type Roller Chain Sprockets, 140 Chain Number
Filter
A
B
C
D
E| Style | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DS140A14 | 14 | 7.8644" | 8.717" | 3.354" | 140 | 1 3/4" | Finished Bore | 1 3/4" | €949.10 | |
| B | DS140A15 | 15 | 8.417" | 9.283" | 3.354" | 140 | 1 3/4" | Finished Bore | 1 3/4" | €1,041.27 | |

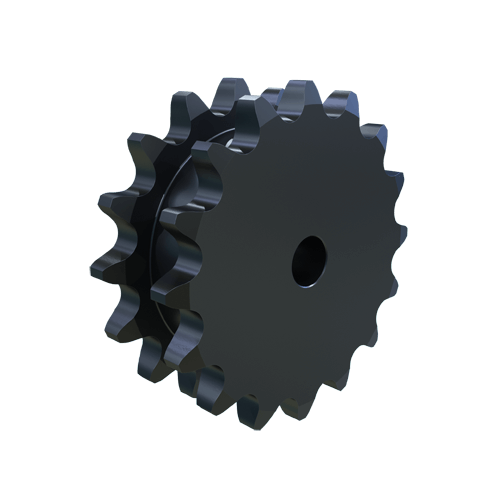

| C | DS140A16 | 16 | 8.9702" | 9.848" | 3.354" | 140 | 1 3/4" | Finished Bore | 1 3/4" | €1,115.46 | |

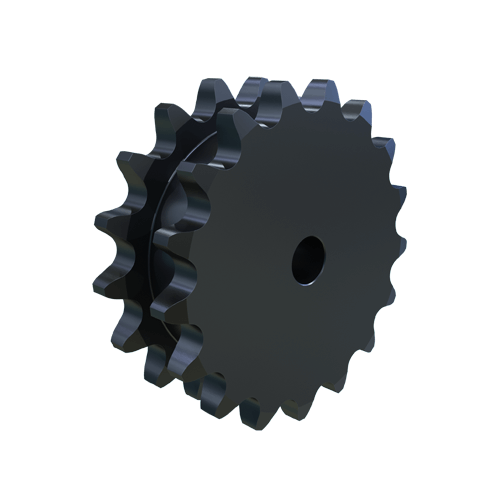

| D | DS140A17 | 17 | 9.5238" | 10.412" | 3.354" | 140 | 1 3/4" | Finished Bore | 1 3/4" | €1,092.87 | |
| E | DS140A18 | 18 | 10.0778" | 10.975" | 3.354" | 140 | 1 3/4" | Finished Bore | 1 3/4" | €1,228.39 |
