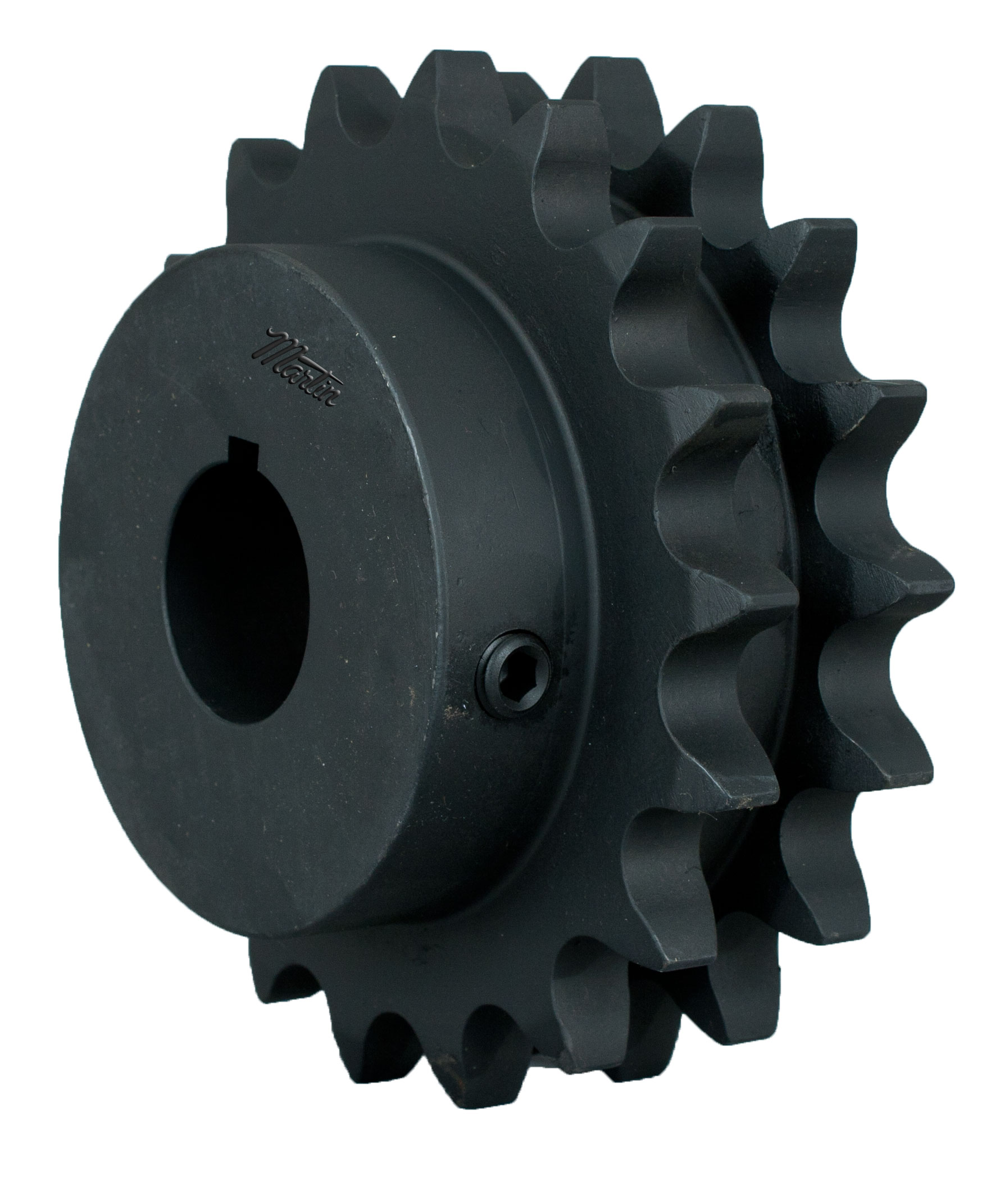

MARTIN SPROCKET D80BS24HW 2 Roller Chain Sprocket, 2 Inch Bore, 8.196 Inch Outside Dia. Steel, Hardened
Get it by Thursday, Dec 18
€510.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 2" |
| Bore Type | Bored To Size |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 2" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 4 1/4" |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 2 3/4" |
| Length Thru Bore | 2 3/4" |
| Material | Steel |
| No. Of Teeth | 24 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 24 |
| Outside Dia. | 8.196" |
| Pitch | 1" |
| Pitch Dia. | 7.6613" |
| Pitch Diameter | 7.661" |
| Set Screw Location | (1) At 90° F/Keyway |
| Set Screw Size | 1/2"-13 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 2 3/4" |
| Storage Dimension Length | 8.196" |
| Storage Dimension Width | 8.196" |
Shipping Info:
| Ship weight (kg) | 10.62 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 20.83 |
| Ship width (cm) | 20.83 |
| Country of Origin | US |
Product Variants
| Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Type | Length Through Bore | Set Screw Size | For Chain Number | For Chain Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D80BS15HW 1 1/2 | 15 | 4.8097" | 5.305" | Bored To Size | 2 1/2" | 3/8"-16 | 80 | 1" | €304.49 | |
| D80BS12HW 1 1/4 | 12 | 3.8637" | 4.332" | Finished Bore | 2 1/2" | 5/16"-18 | 80 | 1" | €256.84 | |
| D80BS12HW 1 1/2 | 12 | 3.8637" | 4.332" | Finished Bore | 2 1/2" | 3/8"-16 | 80 | 1" | €256.84 | |
| D80BS12HW 1 3/4 | 12 | 3.8637" | 4.332" | Finished Bore | 2 1/2" | 3/8"-16 | 80 | 1" | €256.84 | |
| D80BS15HW 1 1/4 | 15 | 4.8097" | 5.305" | Bored To Size | 2 1/2" | 5/16"-18 | 80 | 1" | €304.49 | |
| D80BS15HW 1 3/4 | 15 | 4.8097" | 5.305" | Bored To Size | 2 1/2" | 3/8"-16 | 80 | 1" | €304.49 | |
| D80BS18HW 1 1/2 | 18 | 5.7588" | 6.271" | Bored To Size | 2 3/4" | 3/8"-16 | 80 | 1" | €318.78 |
