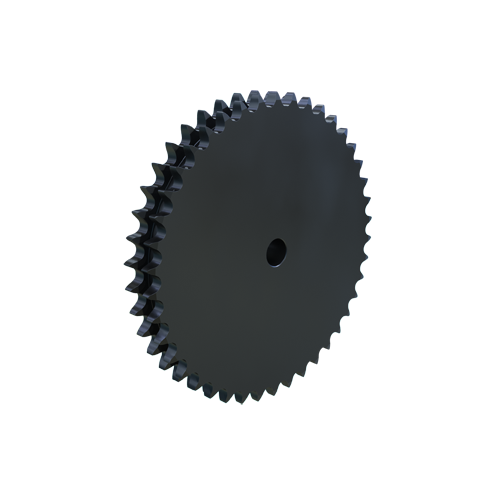

MARTIN SPROCKET D80B42 Sprocket, 80 Chain, 42 Teeth, 13.382 Inch Pitch Dia., 13.944 Inch O.D., Steel
13.944"
Get it by Friday, Aug 21
€785.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | 80-2 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Dia. | 5 3/4" |
| Hub Outside Dia. | 5 3/4" |
| Individually Packaged | No |
| Length Through Bore | 3 1/8" |
| Length Thru Bore | 3" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/4" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 42 |
| Outside Dia. | 13.944" |
| Pitch | 1" |
| Pitch Dia. | 13.3815" , 13.382" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 3 1/8" |
| Storage Dimension Length | 13.944" |
| Storage Dimension Width | 13.944" |
| Type | Double Strand Stock Bore Type B Welded |
Shipping Info:
| Ship weight (kg) | 32.16 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 35.41 |
| Ship width (cm) | 35.41 |
| Country of Origin | US |
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D80B10H | 3.236" | 10 | 2 3/4" | 2.563" | 1" | 80-2 | 3.678" | 3.678" | €204.14 | |
| D80B11H | 3.55" | 11 | 2 1/2" | 2 1/2" | 1" | 80-2 | 4.006" | 4.006" | €205.94 | |
| D80B12H | 3.864" | 12 | 2 1/2" | 2.83" | 1" | 80-2 | 4.332" | 4.332" | €218.28 | |
| D80B13H | 4.179" | 13 | 2 1/2" | 3.15" | 1" | 80-2 | 4.657" | 4.657" | €235.27 | |
| D80B14H | 4.494" | 14 | 2 1/2" | 3.47" | 1" | 80-2 | 4.981" | 4.981" | €247.10 | |
| D80B15H | 4.81" | 15 | 2 1/2" | 3.79" | 1" | 80-2 | 5.305" | 5.305" | €267.45 | |
| D80B16H | 5.126" | 16 | 2 3/4" | 4" | 1" | 80-2 | 5.627" | 5.627" | €249.98 |
