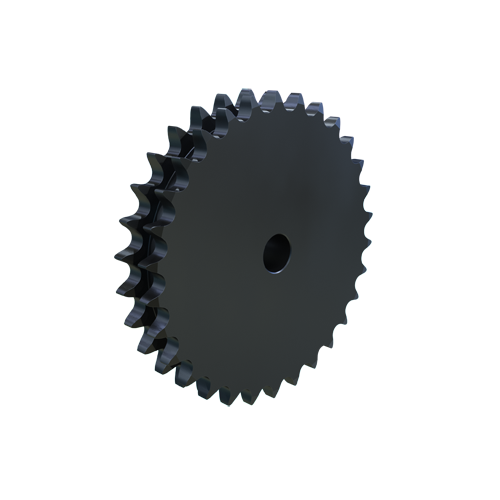

MARTIN SPROCKET D80B30 Sprocket, 80 Chain, 30 Teeth, 9.567 Inch Pitch Dia., 10.114 Inch O.D., Steel
10.114"
Get it by Thursday, Dec 18
€627.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 1/4" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 3/4" |
| Individually Packaged | No |
| Length Through Bore | 3" |
| Length Thru Bore | 3" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/4" |
| No. Of Teeth | 30 |
| Number Of Chain Rows | 2 |
| Number Of Teeth | 30 |
| Outside Dia. | 10.114" |
| Pitch | 1" |
| Pitch Dia. | 9.5668" |
| Pitch Diameter | 9.567" |
| Single Strand Tooth Thickness | 0.557" |
| Storage Dimension Height | 3" |
| Storage Dimension Length | 10.114" |
| Storage Dimension Width | 10.114" |
Shipping Info:
| Ship weight (kg) | 17.76 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 25.68 |
| Ship width (cm) | 25.68 |
| Country of Origin | US |
Product Variants
| Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Bore Type | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

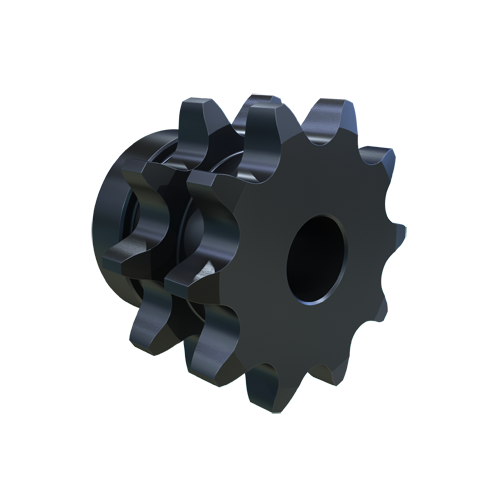

| D80B10H | 10 | 3.2361" | 3.678" | 2 3/4" | 80 | 1" | Finished Bore | 1" | €204.14 | |
| D80B11H | 11 | 3.5495" | 4.006" | 2 1/2" | 80 | 1" | Finished Bore | 1" | €205.94 | |
| D80B12H | 12 | 3.8637" | 4.332" | 2 1/2" | 80 | 1" | Finished Bore | 1" | €218.28 | |
| D80B13H | 13 | 4.1786" | 4.657" | 2 1/2" | 80 | 1" | Finished Bore | 1" | €235.27 | |
| D80B14H | 14 | 4.494" | 4.981" | 2 1/2" | 80 | 1" | Finished Bore | 1" | €247.10 | |
| D80B15H | 15 | 4.8097" | 5.305" | 2 1/2" | 80 | 1" | Finished Bore | 1" | €267.45 | |
| D80B16H | 16 | 5.1258" | 5.627" | 2 3/4" | 80 | 1" | Finished Bore | 1" | €249.98 |
