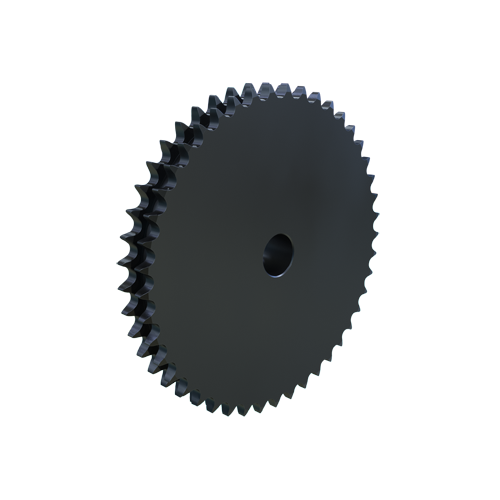

MARTIN SPROCKET D50B45 Sprocket, Stock Bore, 50 Chain, 45 Teeth, 8.960 Inch Pitch Dia., 9.313 Inch O.D., Steel
9.313"
Get it by Tuesday, Jul 7
€281.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 3/16" |
| Bore Type | Finished Bore |
| Chain Number | 50 |
| Chain Pitch | 5/8" |
| Chain Size | 50-2 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 50 |
| For Chain Pitch | 5/8" |
| Hub Configuration | B |
| Hub Dia. | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 2 1/8" |
| Length Thru Bore | 2 1/8" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1 3/16" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 45 |
| Outside Dia. | 9.313" |
| Pitch | 5/8" |
| Pitch Dia. | 8 24/25" , 8.9597" |
| Single Strand Tooth Thickness | 0.332" |
| Storage Dimension Height | 2 1/8" |
| Storage Dimension Length | 9.313" |
| Storage Dimension Width | 9.313" |
| Type | Double Strand Solid Stock Bore Type B |
Shipping Info:
| Ship weight (kg) | 9.17 |
| Ship height (cm) | 5.41 |
| Ship length (cm) | 23.65 |
| Ship width (cm) | 23.65 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Pitch Dia. | Outside Dia. | Hub Dia. | Length Through Bore | For Chain Number | For Chain Pitch | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D50B11H | 5/8" | 2.218" | 2.504" | 1.469" | 1 3/4" | 50 | 5/8" | 5/8" | €126.13 | |
 |
D50B12H | 5/8" | 2.415" | 2.708" | 1.688" | 1 3/4" | 50 | 5/8" | 5/8" | €126.64 | |
 |
D50B13H | 5/8" | 2.612" | 2.911" | 1 7/8" | 1 3/4" | 50 | 5/8" | 5/8" | €129.99 | |
 |
D50B14H | 5/8" | 2.809" | 3.113" | 2.063" | 1 3/4" | 50 | 5/8" | 5/8" | €131.95 | |
 |
D50B15H | 3/4" | 3.006" | 3.315" | 2.313" | 1 3/4" | 50 | 5/8" | 5/8" | €132.83 | |
 |
D50B16H | 3/4" | 3.204" | 3.517" | 2 1/2" | 1 3/4" | 50 | 5/8" | 5/8" | €136.17 | |
 |
D50B17H | 3/4" | 3.401" | 3.718" | 2.688" | 1 3/4" | 50 | 5/8" | 5/8" | €139.77 |
