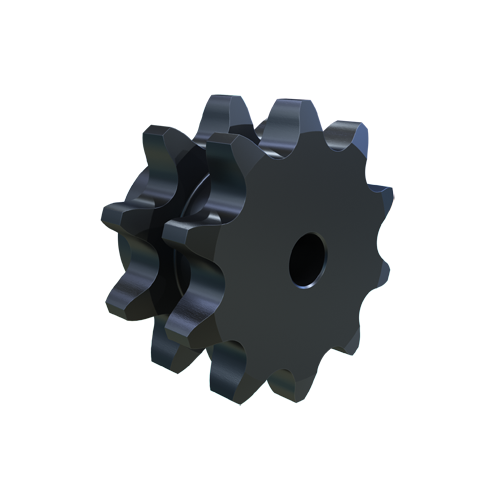

MARTIN SPROCKET D20B10 Sprocket, 20B-2 Chain, 10 Teeth, 102.745 mm Pitch Dia., 123.383 mm O.D., Steel
Item: BA2LTPModel: D20B10
7 In Stock
123.383 mm
Ships within 2 days via
€550.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 20 mm to 48 mm |
| Chain Size | #20B-2 |
| Hub Diameter | 69.05 mm |
| Length Through Bore | 75.006 mm |
| Material | High Carbon Steel |
| No. Of Teeth | 10 |
| O.d. | 123.383 mm |
| Outside Dia. | 123.383 mm |
| Pitch | 31.75 mm |
| Pitch Dia. | 102.745 mm |
| Type | Type B Double Strand Solid Stock Bore |
Shipping Info:
| Ship weight (kg) | 0.72 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.34 |
| Ship width (cm) | 12.34 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Number Of Teeth | Length Through Bore | Pitch | Price | |
|---|---|---|---|---|---|---|---|---|
 |
D20B16 | 162.745 mm | 183.383 mm | 16 | 80.01 mm | 31.75 mm | €795.93 | |
 |
D20B17 | 172.79 mm | 193.427 mm | 17 | 80.01 mm | 31.75 mm | €775.93 | |
 |
D20B19 | 192.898 mm | 213.536 mm | 19 | 80.01 mm | 31.75 mm | €1,071.47 | |
 |
D20B20 | 202.96 mm | 223.598 mm | - | 80.01 mm | 31.75 mm | €1,101.17 | |
 |
D20B22 | 223.097 mm | 243.734 mm | 22 | 80.01 mm | 31.75 mm | €1,217.05 | |
 |
D20B23 | 233.17 mm | 253.808 mm | 23 | 80.01 mm | 31.75 mm | €1,262.98 | |
 |
D20B30 | 303.745 mm | 324.383 mm | 30 | 80.01 mm | 31.75 mm | €1,857.65 |
