MARTIN SPROCKET D100C45 Sprocket, 100 Chain, 45 Teeth, 17.920 Inch Pitch Dia., 18.626 Inch O.D., Steel
Get it by Friday, Aug 21
€1,638.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 1/2" |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100-2 |
| Construction | Welded |
| Construction Type | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | C |
| Hub Dia. | 6" |
| Hub Outside Dia. | 6" |
| Individually Packaged | No |
| Length Through Bore | 4 1/2" |
| Length Thru Bore | 4 1/2" |
| Material | Steel |
| Max. Bore Size | 3 13/16" |
| Min. Bore Size | 1 1/2" |
| No. Of Chain Rows | 2 |
| No. Of Teeth | 45 |
| Outside Dia. | 18.626" |
| Pitch | 1 1/4" |
| Pitch Dia. | 17 23/25" , 17.9195" |
| Single Strand Tooth Thickness | 0.669" |
| Storage Dimension Height | 4 1/2" |
| Storage Dimension Length | 18.626" |
| Storage Dimension Width | 18.626" |
| Type | Double Strand Stock Bore Type C Welded |
Shipping Info:
| Ship weight (kg) | 46.35 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 47.32 |
| Ship width (cm) | 47.32 |
| Country of Origin | US |
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| D100C35 | 13.945" | 35 | 4 1/4" | 6" | 1 1/2" to 3 13/16" | #100 | 14.639" | 14.639" | €1,255.95 | |

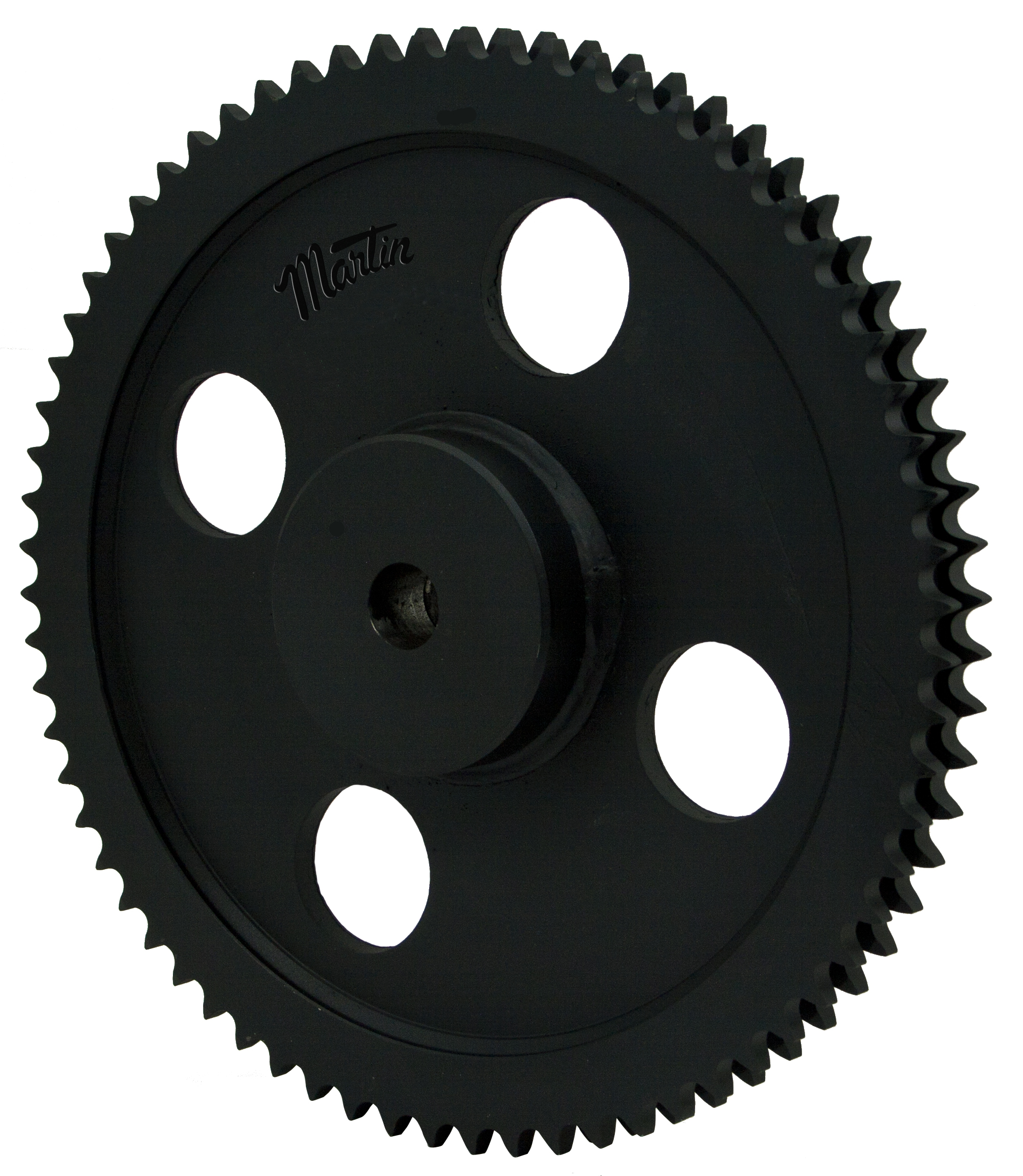

| D100C60 | 23.884" | 60 | 5" | 7 1/2" | 1 1/2" | 100-2 | 24.601" | 24.601" | €2,422.06 | |
| D100C70 | 27.8615" | 70 | 5" | 7 1/2" | 1 1/2" to 5 3/8" | #100 | 28.583" | 28.583" | €3,578.07 | |
| D100C80 | 31.839" | 80 | 5" | 7 1/2" | 1 1/2" to 5 3/8" | #100 | 32.565" | 32.565" | €4,316.10 |
