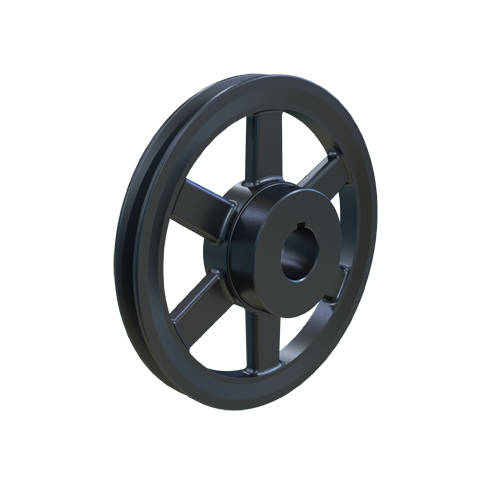

MARTIN SPROCKET AK74 1 1/8 Sheave, 1.125 Inch Bore, 0.750 Inch Face Width, 7.250 Inch Outside Dia., Cast Iron
7.250"
1.125"
Get it by Tuesday, Mar 3
€73.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 3l Belt Pitch Dia. | 6.66" |
| 4la Or A Belt Pitch Dia. | 7" |
| Bore Diameter | 1 1/8" |
| Bore Type | Finished |
| Bushing Type | H |
| Face Width | 3/4" |
| Hub Projection | 0.719" |
| Length | 1 15/32" |
| Material | Cast Iron |
| Number Of Grooves | 1 |
| Outside Dia. | 7 1/4" |
| Outside Diameter | 7 1/4" |
| Series | AK Series |
| Suitable For Use With | A, 3L, 4L Cross Section Belts |
| Type | Arm, Spoke Bored to Size Type C |
Shipping Info:
| Ship weight (kg) | 2.03 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 18.42 |
| Ship width (cm) | 18.42 |
| Country of Origin | US |
