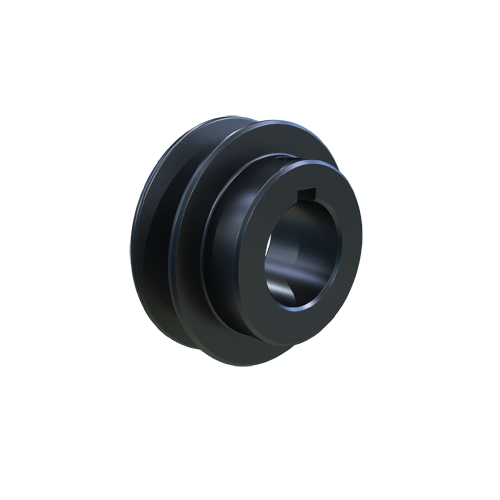

MARTIN SPROCKET AK24 1 Sheave, 1 Inch Bore, 2.4 Inch Outside Dia., 1 Groove, Steel
2.4"
1"
Get it by Wednesday, Aug 26
€22.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sheave |
| 3l Belt Pitch Dia. | 1.86" |
| 4la Or A Belt Pitch Dia. | 2 1/5" |
| Bore Dia. | 1" |
| Bore Type | Finished |
| Face Width | 0.656" |
| Hub Dia. | 1 3/4" |
| Hub Projection | 7/16" |
| Length | 1 3/32" |
| Material | Steel |
| No. Of Grooves | 1 |
| Outside Dia. | 2 2/5" |
| Series | AK Series |
| Suitable For Use With | A, 4L Cross Section Belts |
| Type | Bored to Size Solid Type A |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.77 |
| Ship length (cm) | 6.1 |
| Ship width (cm) | 6.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Face Width | Bore Dia. | Material | Price | |
|---|---|---|---|---|---|---|---|
 |
AK104 1 | 10 1/4" | 3/4" | 1" | Cast Iron | €107.15 | |
 |
AK104 1 1/4 | 10 1/4" | 3/4" | 1 1/4" | Cast Iron | €107.15 | |
 |
AK104 1 3/16 | 10 1/4" | 3/4" | 1 3/16" | Cast Iron | €107.15 | |
 |
AK104 1 7/16 | 10 1/4" | 3/4" | 1.438" | Cast Iron | €107.15 | |
 |
AK104 3/4 | 10 1/4" | 3/4" | 3/4" | Cast Iron | €107.15 | |
|
AK104 5/8 | 10 1/4" | 3/4" | 5/8" | Cast Iron | €107.15 | |
 |
AK109 1 | 10 3/4" | 3/4" | 1" | Cast Iron | €114.87 |
