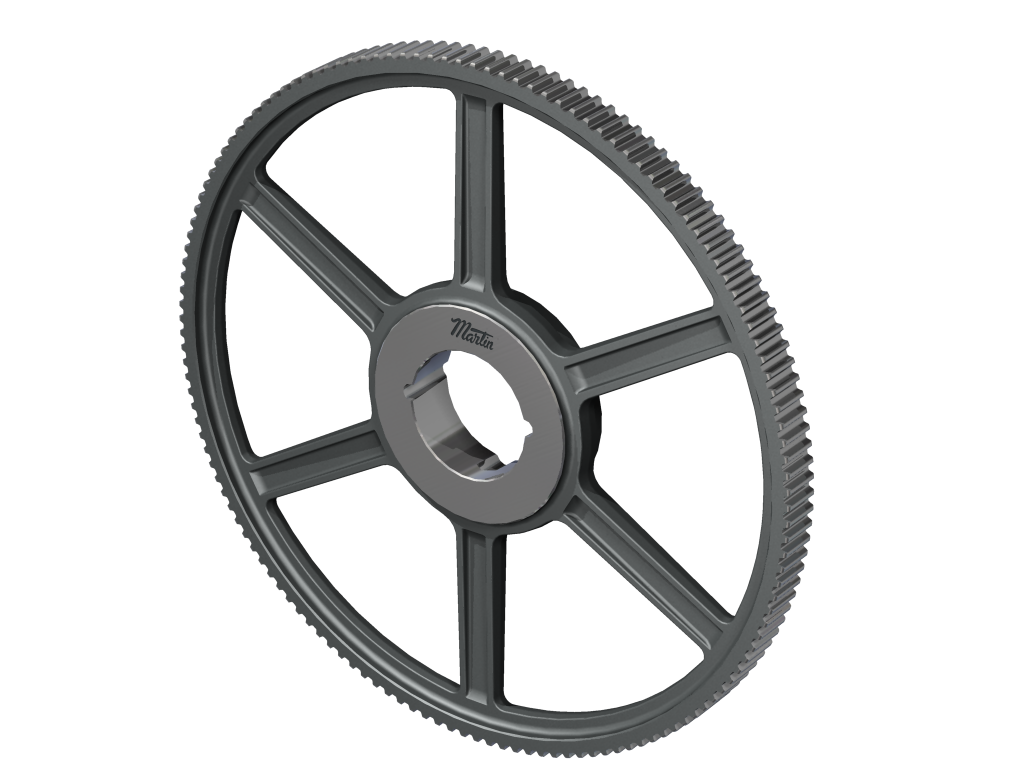

MARTIN SPROCKET 8MX140S12-2012 Sprocket, Bushed, 13.973 Inch Max Bore, 140 Teeth, 14.036 Inch Pitch Dia., Steel
14.036"
Get it by Thursday, Aug 27
€534.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Pitch | 8 mm |
| Belt Width | 0.472" |
| Bore Type | Bushed |
| Bushing Part No. | 2012 |
| Construction Type | Spoked |
| Face Width | 0.85" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 1/2" |
| No. Of Teeth | 140 |
| Outside Dia. | 13.973" |
| Pitch Dia. | 14.036" |
Shipping Info:
| Ship weight (kg) | 7.79 |
| Ship height (cm) | 2.16 |
| Ship length (cm) | 35.48 |
| Ship width (cm) | 35.48 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Min. Bore Size | Max. Bore Size | Belt Width | Face Width | Bore Type | Construction Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8MX34S21-1610 | 3.409" | 34 | 1/2" | 1 5/8" | 0.827" | 1 1/5" | Bushed | Solid | €212.67 | |
|
8MX38S21-1610 | 3.81" | 38 | 1/2" | 1 5/8" | 0.827" | 1 1/5" | Bushed | Solid | €227.32 | |
 |
8MX40S21-2012 | 4.01" | 40 | 1/2" | 2" | 0.827" | 1 1/4" | TB Bushed | Solid | €241.99 | |
|
8MX53S21-2012 | 5.314" | 53 | 1/2" | 2" | 0.827" | 1 1/4" | Bushed | Solid | €350.36 | |
 |
8MX71S36-2517 | 7.118" | 71 | 1/2" | 2 1/2" | 1.417" | 1.86" | Bushed | Solid | €499.75 | |
|
8MX71S21-2517 | 7.118" | 71 | 1/2" | 2 1/2" | 0.827" | 1 1/5" | Bushed | Solid | €447.30 | |
 |
8MX90S21-2517 | 9.023" | 90 | 1/2" | 2 1/2" | 0.827" | 1 1/5" | Bushed | Web | €498.64 |
