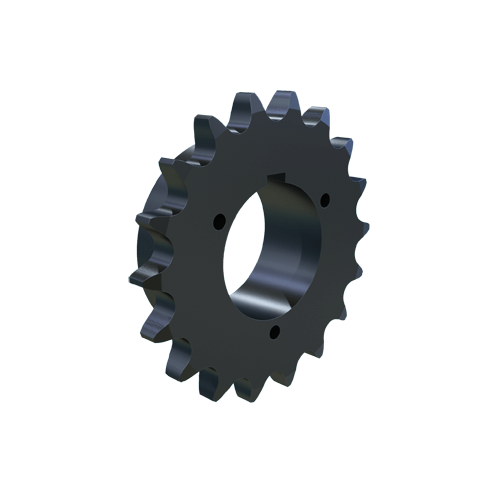

MARTIN SPROCKET 80Q18H Sprocket, MST, 80 Chain, 18 Teeth, 5.759 Inch Pitch Dia., 6.271 Inch O.D., Steel
Item: AL4XDZModel: 80Q18H
7 In Stock
6.271"
Ships within 2 days via
€262.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 0.75" to 2.688" |
| Bore Type | Bushed |
| Bushing Part Number | Q1 |
| Bushing Size | Q1 |
| Bushing Type | Type Q1 Split Taper |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4 1/4" |
| Hub Outside Dia. | 4.203" |
| Individually Packaged | No |
| Key Way Size | 1/2" |
| Length Through Bore | 2 1/2" |
| Length Thru Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 18 |
| Pitch | 1" |
| Pitch Dia. | 5.7588" , 5.759" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 6.271" |
| Storage Dimension Width | 6.271" |
| Type | MST Q1 Bushed Type 4 Welded |
Shipping Info:
| Ship weight (kg) | 2.39 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 15.93 |
| Ship width (cm) | 15.93 |
| Country of Origin | US |
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Bushing Size | Construction Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 80Q31 | 9.8845" | 31 | 1 3/4" | 10.434" | 10.434" | 1 3/4" | Q1 | Welded | €325.77 | |
| 80Q32 | 10.202" | 32 | 2 1/2" | 10.753" | 10.753" | 1 3/4" | Q1 | Welded | €330.93 | |
| 80Q33 | 10.5201" | 33 | 1 3/4" | 11.072" | 11.072" | 1 3/4" | Q1 | Welded | €339.04 | |
| 80Q34 | 10.838" | 34 | 1 3/4" | 11.392" | 11.392" | 1 3/4" | Q1 | Welded | €348.72 | |
| 80Q35 | 11.1558" | 35 | 1 3/4" | 11.711" | 11.711" | 1 3/4" | Q1 | Welded | €355.60 | |
| 80Q37 | 11.7916" | 37 | 1 3/4" | 12.349" | 12.349" | 1 3/4" | Q1 | Welded | €366.39 | |
| 80Q38 | 12.1096" | 38 | 1 3/4" | 12.668" | 12.668" | 1 3/4" | Q1 | Welded | €381.71 |
