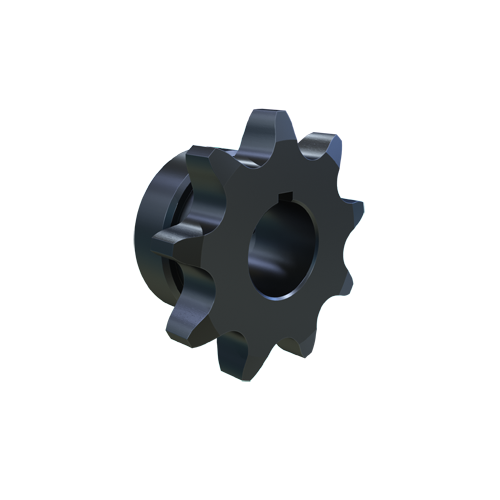

MARTIN SPROCKET 80BS9HT 1 3/16 Roller Chain Sprocket, 1.188 Inch Bore, 3.347 Inch Outside Dia. Steel, Hardened
Item: BA6CYPModel: 80BS9HT 1 3/16
7 In Stock
Ships within 2 days via
€99.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1 3/16" |
| Bore Size | 1 3/16" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | #80 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 3/16" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 2 1/4" |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | No |
| Key Way Size | 1/4" x 1/8" |
| Length Through Bore | 1 5/8" |
| Length Thru Bore | 1 5/8" |
| Material | Steel |
| Max. Bore Size | 1 5/16" |
| Min. Bore Size | 1 3/16" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 9 |
| Pitch | 1" |
| Pitch Dia. | 2.9238" |
| Screw Size | 5/16"-18 x 5/16" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1.63" |
| Storage Dimension Length | 3.347" |
| Storage Dimension Width | 3.347" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 4.14 |
| Ship length (cm) | 8.51 |
| Ship width (cm) | 8.51 |
| Country of Origin | US |
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 80BS15HT 1 1/8 | 4.81" | 15 | 1 1/2" | 3 1/2" | 1 1/8" | 5 3/4" | 5 3/4" | 1 14/25" | €150.50 | |
| 80BS19HT 2 | 6.076" | 19 | 1 1/2" | 4 1/4" | 2" | 6.593" | 6.593" | 1 1/2" | €212.08 | |
| 80BS9HT 1 | 2.9238" | 9 | 1 5/8" | 2 1/4" | 1" | 3.347" | 3.347" | 1.63" | €99.25 | |
| 80BS10HT 1 | 3.236" | 10 | 1 5/8" | 2.563" | 1" | 4 3/4" | 4 3/4" | 1 14/25" | €108.53 | |
| 80BS10HT 1 1/4 | 3.236" | 10 | 1 5/8" | 2.563" | 1 1/4" | 4 3/4" | 4 3/4" | 1 14/25" | €108.53 | |
| 80BS11HT 1 1/4 | 3.55" | 11 | 1 5/8" | 2.813" | 1 1/4" | 4.006" | 4.006" | 1.63" | €112.66 | |
| 80BS11HT 1 1/2 | 3.55" | 11 | 1 5/8" | 2.813" | 1 1/2" | 4 3/4" | 4 3/4" | 1 14/25" | €112.66 |
