BROWNING Q-D Sheaves For B Belts, 2 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Bushing Type | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1004134 | 3 1/5" | 1/2" to 1 5/8" | Type E1 | 3 2/5" | 3" | 3.7" | SH | 0.7" | €196.71 | |
| B | 1004142 | 3 2/5" | 1/2" to 1 5/8" | Type D1 | - | - | 3.9" | SH | 0.5125" | €183.52 | |
| C | 1004159 | 3 3/5" | 1/2" to 1 5/8" | Type D1 | 3 4/5" | 3 2/5" | 4.1" | SH | 0.5125" | €151.20 | |
| D | 1004167 | 3 4/5" | 1/2" to 1 5/8" | Type D1 | - | - | 4.3" | SH | 0.0125" | €201.89 | |
| E | 1004183 | 4 1/5" | 1/2" to 1 5/8" | Type D1 | 4 2/5" | 4" | 4.7" | SH | 0.0125" | €253.27 | |
| F | 1004191 | 4 2/5" | 1/2" to 2" | Type D1 | 4 3/5" | 4 1/5" | 4.9" | SDS | 0.04375" | €177.39 | |

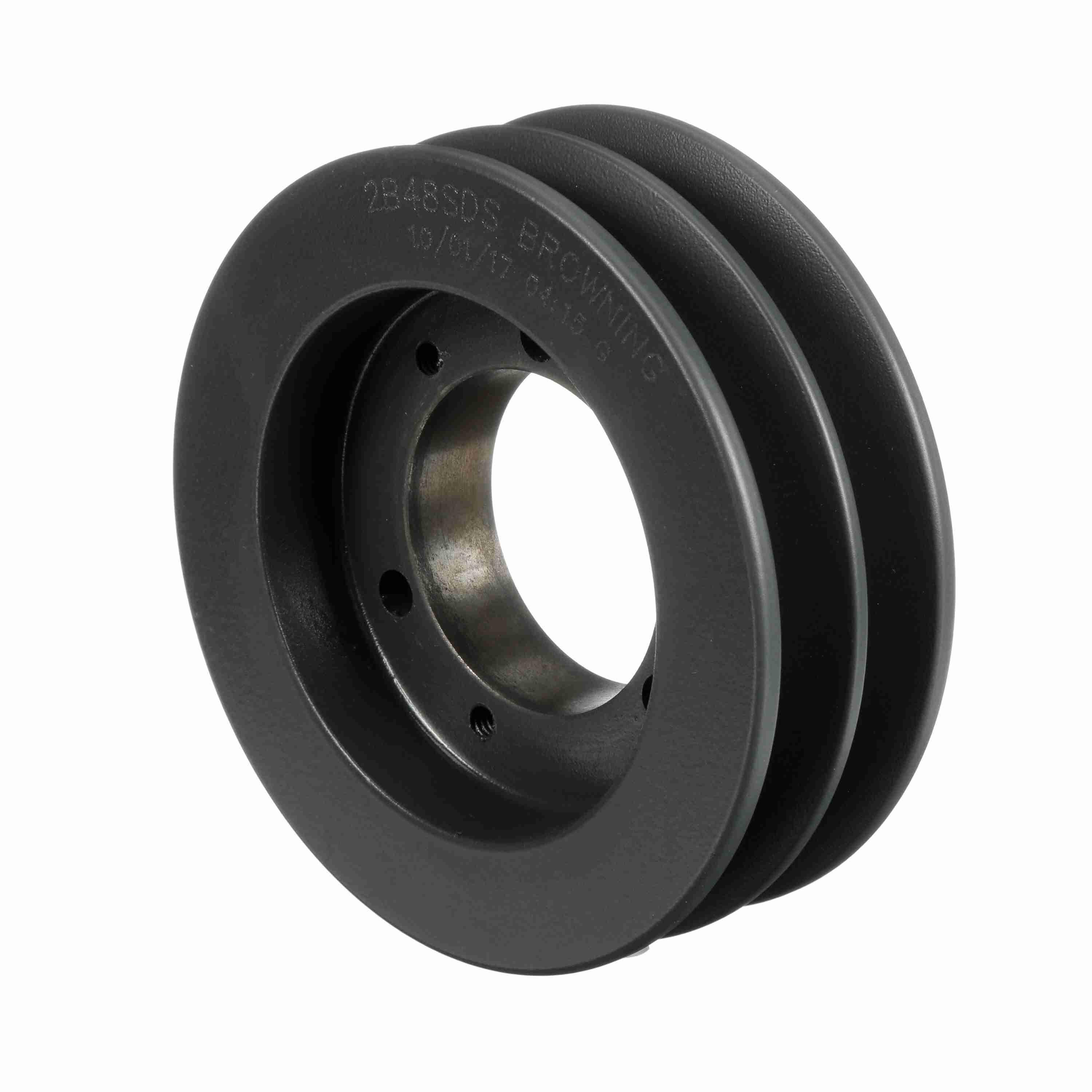

| G | 1004209 | 4 3/5" | 1/2" to 2" | Type D1 | 4 4/5" | 4 2/5" | 5.1" | SDS | 0.04375" | €187.19 | |
| H | 1004217 | 4 4/5" | 1/2" to 2" | Type D1 | 5" | 4 3/5" | 5.3" | SDS | 0.04375" | €194.39 | |
| I | 1004175 | 4" | 1/2" to 1 5/8" | Type D1 | 4 1/5" | 3 4/5" | 4 1/2" | SH | 0.0125" | €242.73 | |
| J | 1004233 | 5 1/5" | 1/2" to 2" | Type A1 | 5 2/5" | 5" | 5.7" | SDS | - | €208.79 | |
| K | 1004241 | 5 2/5" | 1/2" to 2" | Type D1 | 5 3/5" | 5 1/5" | 5.9" | SDS | 0.04375" | €215.99 | |
| L | 1004258 | 5 3/5" | 1/2" to 2" | Type D2 | 5 4/5" | 5 2/5" | 6.1" | SDS | 0.04375" | €223.18 | |
| M | 1004266 | 5 4/5" | 1/2" to 2" | Type D2 | - | - | 6.3" | SDS | 0.35625" | €230.39 | |
| N | 1004225 | 5" | 1/2" to 2" | Type D1 | 5 1/5" | 4 4/5" | 5 1/2" | SDS | 0.04375" | €201.58 | |

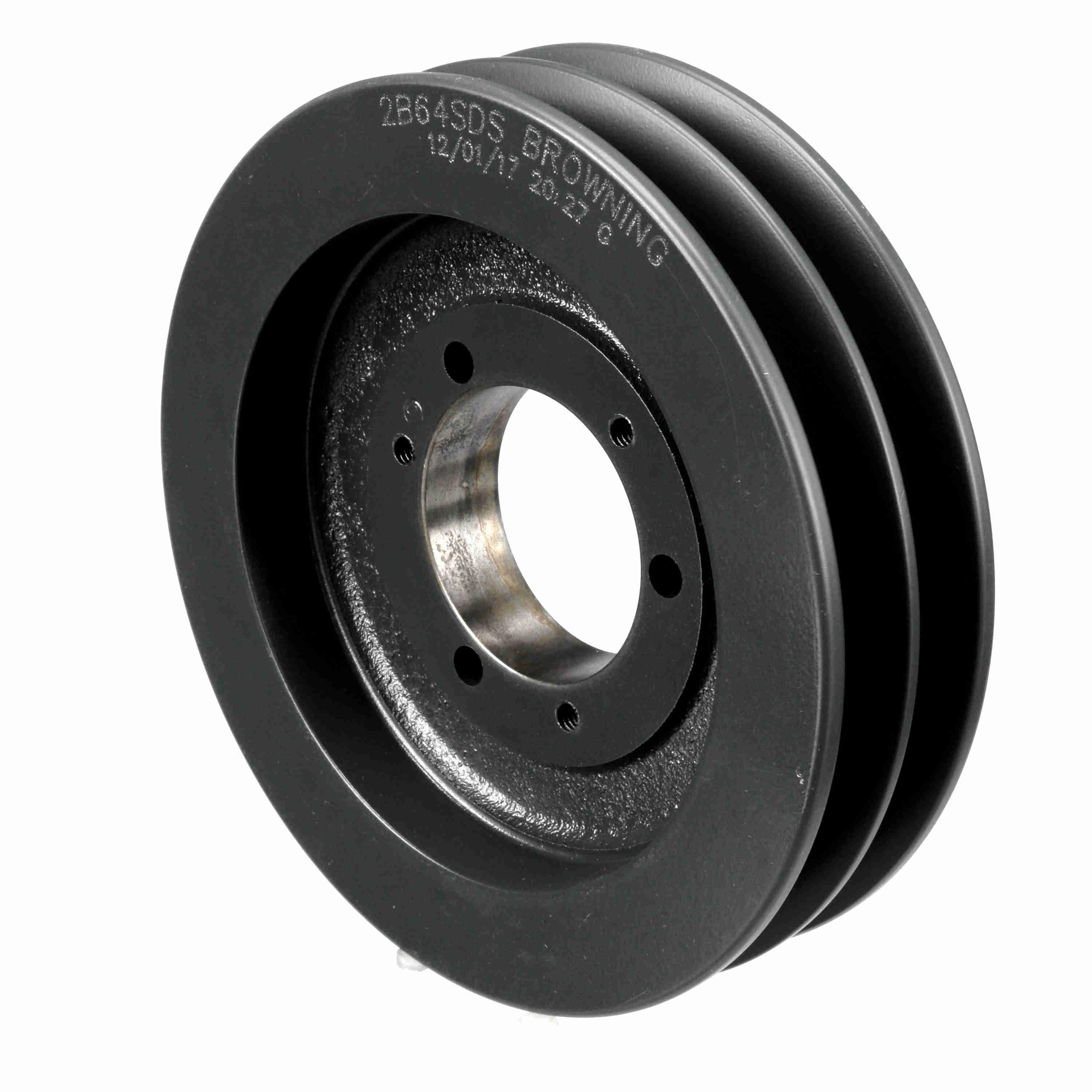

| O | 1004282 | 6 1/5" | 1/2" to 2" | Type D2 | - | - | 6.7" | SDS | 0.04375" | €244.80 | |
| P | 1004290 | 6 2/5" | 1/2" to 2" | Type D2 | 6 3/5" | 6 1/5" | 6.9" | SDS | 0.325" | €248.39 | |
| Q | 1004308 | 6 3/5" | 1/2" to 2" | Type D3 | 6 4/5" | 6 2/5" | 7.1" | SDS | 0.325" | €251.98 | |
| R | 1004316 | 6 4/5" | 1/2" to 2 5/8" | Type D1 | 7" | 6 3/5" | 7.3" | SK | 21/32" | €255.44 | |

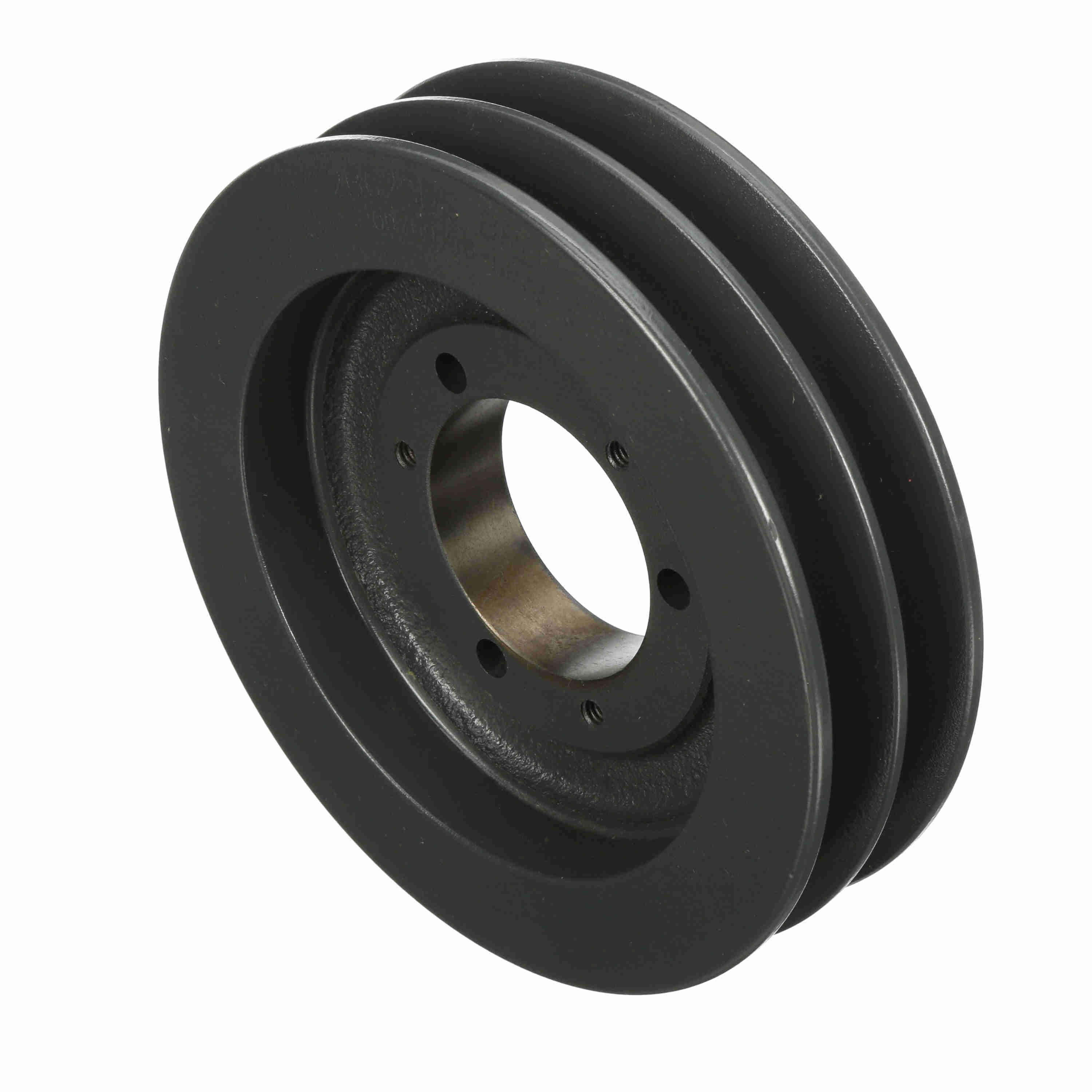

| S | 1004274 | 6" | 1/2" to 2" | Type D2 | 6 1/5" | 5 4/5" | 6 1/2" | SDS | 0.04375" | €237.58 | |

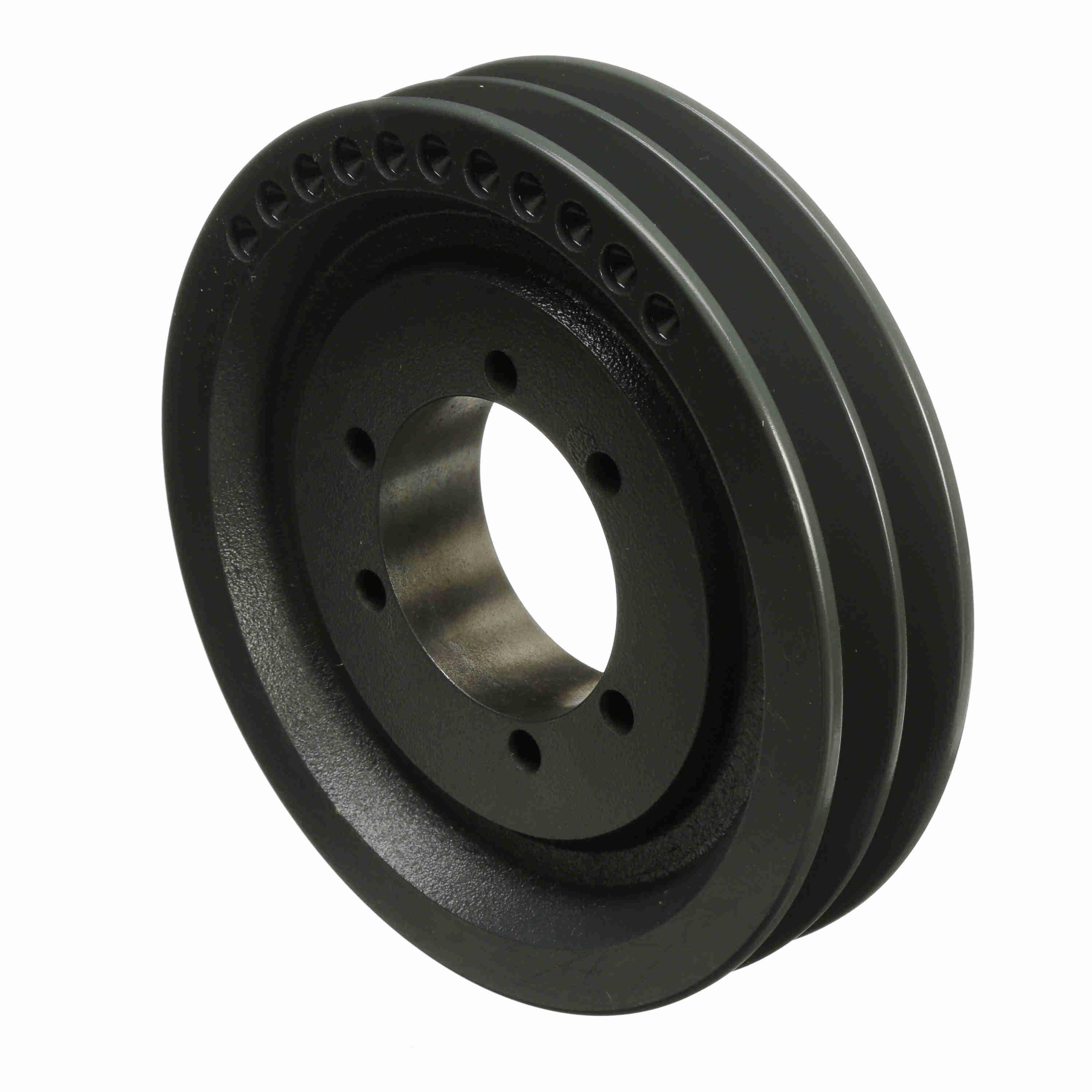

| T | 1004324 | 7 1/5" | 1/2" to 2 5/8" | Type D3 | 7 2/5" | 7" | 7.7" | SK | 43/64" | €262.78 | |
| U | 1004332 | 7 4/5" | 1/2" to 2 5/8" | Type D3 | 8" | 7 3/5" | 8.3" | SK | 3/64" | €225.03 | |
| V | 1004340 | 8 2/5" | 1/2" to 2 5/8" | Type D3 | 8 3/5" | 8 1/5" | 8.9" | SK | 21/32" | €234.50 | |
| W | 1004357 | 9 1/5" | 1/2" to 2 5/8" | Type D3 | 9 2/5" | 9" | 9.7" | SK | 3/64" | €237.19 | |
| X | 1004365 | 10 4/5" | 1/2" to 2 5/8" | Type D3 | 11" | 10 3/5" | 11.3" | SK | 3/64" | €243.27 | |

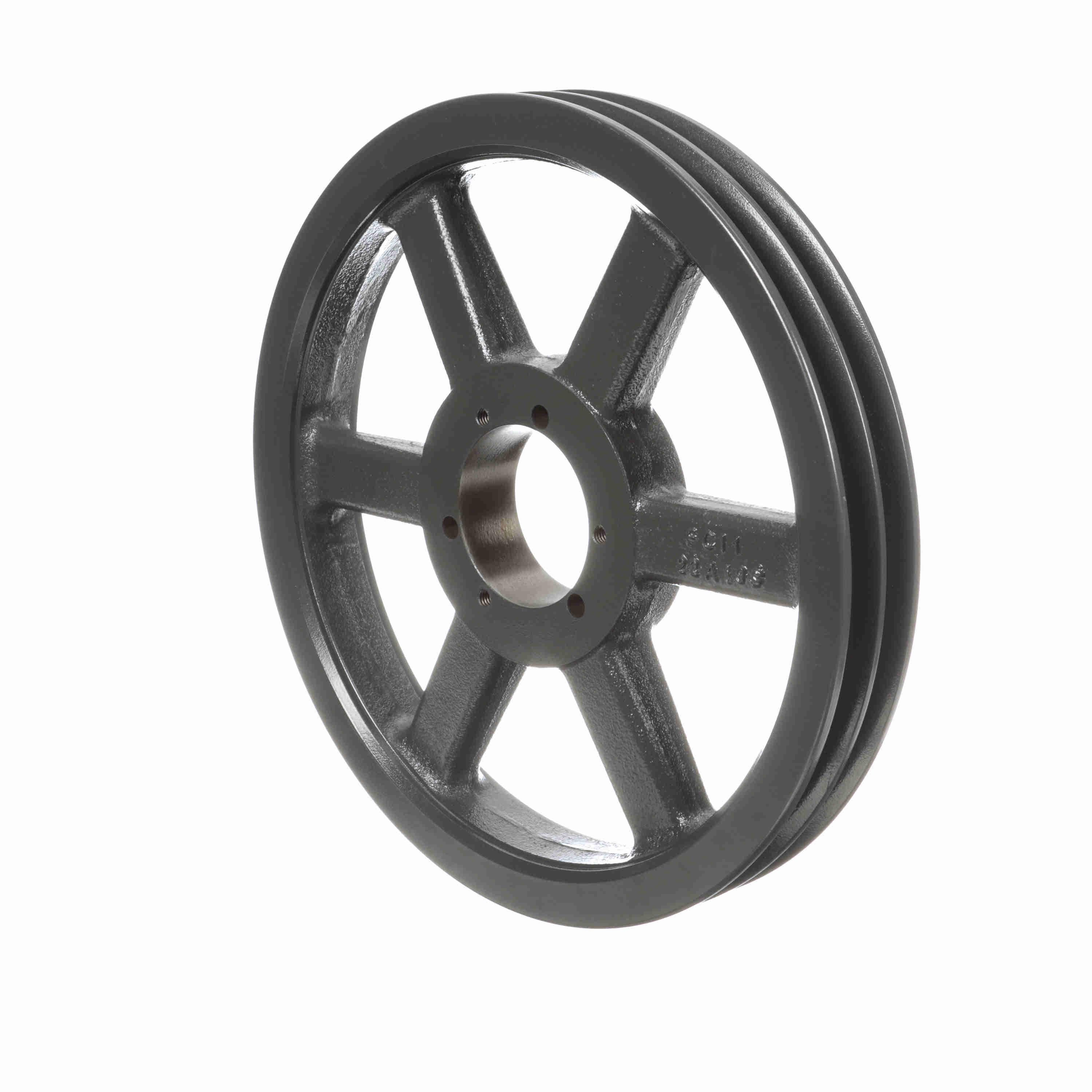

| Y | 1004373 | 12 1/5" | 1/2" to 2 5/8" | Type D3 | - | - | 12.7" | SK | 21/32" | €304.12 | |
| Z | 1004381 | 13 2/5" | 1/2" to 2 5/8" | Type D3 | 13 3/5" | 13 1/5" | 13.9" | SK | 21/32" | €317.33 | |
| A1 | 1004399 | 15 1/5" | 1/2" to 2 5/8" | Type D3 | 15 2/5" | 15" | 15.7" | SK | 21/32" | €444.27 | |
| B1 | 1004407 | 15 4/5" | 1/2" to 2 5/8" | Type D3 | 16" | 15 3/5" | 16.3" | SK | 43/64" | €541.30 | |
| C1 | 1004415 | 18 1/5" | 1/2" to 2 5/8" | Type D3 | 18 2/5" | 18" | 18.7" | SK | 3/64" | €592.33 | |
| D1 | 1004423 | 19 4/5" | 1/2" to 2 15/16" | Type D3 | 20" | 19 3/5" | 20.3" | SF | 17/32" | €1,175.92 | |
| E1 | 1004431 | 24 4/5" | 1/2" to 2 15/16" | Type D3 | 25" | 24 3/5" | 25.3" | SF | 17/32" | €1,062.50 | |
| D1 | 1004449 | 29 4/5" | 1/2" to 2 15/16" | Type D3 | 30" | 29 3/5" | 30.3" | SF | 17/32" | €1,941.49 | |
| D1 | 1004456 | 37 4/5" | 1/2" to 2 15/16" | Type D3 | 38" | 37 3/5" | 38.3" | SF | 17/32" | €4,285.74 |
