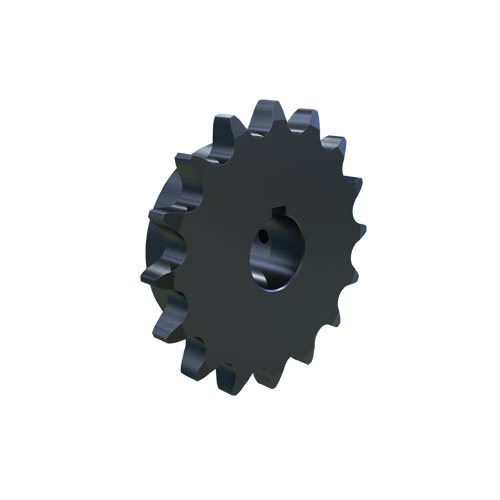

MARTIN SPROCKET 80BS16HT 1 7/16 Roller Chain Sprocket, 1.438 Inch Bore, 5.627 Inch Outside Dia. Steel, Hardened
Item: AJ9MLBModel: 80BS16HT 1 7/16
7 In Stock
Ships within 2 days via
€161.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Diameter | 1 7/16" |
| Bore Size | 1 7/16" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | #80 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1 7/16" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Diameter | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | Yes |
| Keyway Size | 3/8" x 3/16" |
| Length Through Bore | 1 1/2" |
| Length Thru Bore | 1 1/2" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1 7/16" |
| No. Of Teeth | 16 |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| O.d. | 5.627" |
| Outside Dia. | 5.627" |
| Pitch | 1" |
| Pitch Dia. | 5.1258" |
| Pitch Diameter | 5.126" |
| Screw Size | 3/8"-16 x 3/8" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 3/8"-16 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 14/25" |
| Storage Dimension Length | 5 3/4" |
| Storage Dimension Width | 5 3/4" |
| Type | Bored to Size Type BS |
Shipping Info:
| Ship weight (kg) | 2.4 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 14.3 |
| Ship width (cm) | 14.3 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Bore Type | Length Through Bore | Set Screw Size | Bore Size | For Chain Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80BS9HT 1 | 9 | 2.9238" | 3.347" | Finished Bore | 1 5/8" | 5/16"-18 | 1" | 80 | €99.25 | |
 |
80BS10HT 1 | 10 | 3.2361" | 3.678" | Finished Bore | 1 5/8" | 5/16"-18 | 1" | 80 | €108.53 | |
|
80BS11HT 1 | 11 | 3.5495" | 4.006" | Finished Bore | 1 5/8" | 5/16"-18 | 1" | 80 | €112.66 | |
 |
80BS12HT 1 | 12 | 3.8637" | 4.332" | Finished Bore | 3 1/8" | 5/16"-18 | 1" | 80 | €124.79 | |
 |
80BS13HT 1 | 13 | 4.1786" | 4.657" | Finished Bore | 1 1/2" | 5/16"-18 | 1" | 80 | €128.38 | |
|
80BS14HT 1 | 14 | 4.494" | 4.981" | Finished Bore | 1 1/2" | 5/16"-18 | 1" | 80 | €141.60 | |
 |
80BS15HT 1 | 15 | 4.8097" | 5.305" | Finished Bore | 1 1/2" | 5/16"-18 | 1" | 80 | €150.50 |
