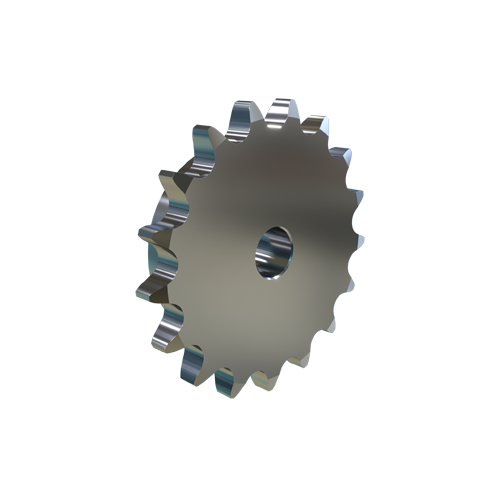

MARTIN SPROCKET 80B17SS Roller Chain Sprocket, 80 Chain, 17 Teeth, 5.442 Inch Pitch Dia., 5.950 Inch O.D., SS
Item: BA3QPWModel: 80B17SS
7 In Stock
Ships within 2 days via
€914.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1" |
| Bore Type | Finished Bore |
| Chain Number | 80 |
| Chain Pitch | 1" |
| Chain Size | #80 |
| Construction | Solid |
| Construction Type | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 80 |
| For Chain Pitch | 1" |
| Hub Configuration | B |
| Hub Dia. | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/2" |
| Length Thru Bore | 1 1/2" |
| Material | Stainless Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 17 |
| Outside Dia. | 5.95" |
| Pitch | 1" |
| Pitch Dia. | 5.442" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 1/2" |
| Storage Dimension Length | 5.95" |
| Storage Dimension Width | 5.95" |
| Type | Stock Bore Type B |
Shipping Info:
| Ship weight (kg) | 2.9 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 15.11 |
| Ship width (cm) | 15.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Bore Dia. | Storage Dimension Length | Storage Dimension Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
80B8 | Steel | 2.6131" | 8 | 1 5/8" | 1.938" | 1" | 3.01" | 3.01" | €66.60 | |
 |
80B9 | Steel | 2.9238" | 9 | 1 5/8" | 2 1/4" | 1" | 3.35" | 3.35" | €66.60 | |
 |
80B10 | Steel | 3.236" | 10 | 1 5/8" | 2.563" | 1" | 3 3/4" | 3 3/4" | €72.64 | |
 |
80B11 | Steel | 3.55" | 11 | 1 5/8" | 2.813" | 1" | 4 1/16" | 4 1/16" | €80.01 | |
 |
80B12 | Steel | 3.864" | 12 | 1 5/8" | 3 1/8" | 1" | 4 7/16" | 4 7/16" | €86.05 | |
 |
80B13 | Steel | 4.179" | 13 | 1 1/2" | 3" | 1" | 4 3/4" | 4 3/4" | €92.64 | |
 |
80B14 | Steel | 4.494" | 14 | 1 1/2" | 3 1/4" | 1" | 5 1/8" | 5 1/8" | €93.31 |
