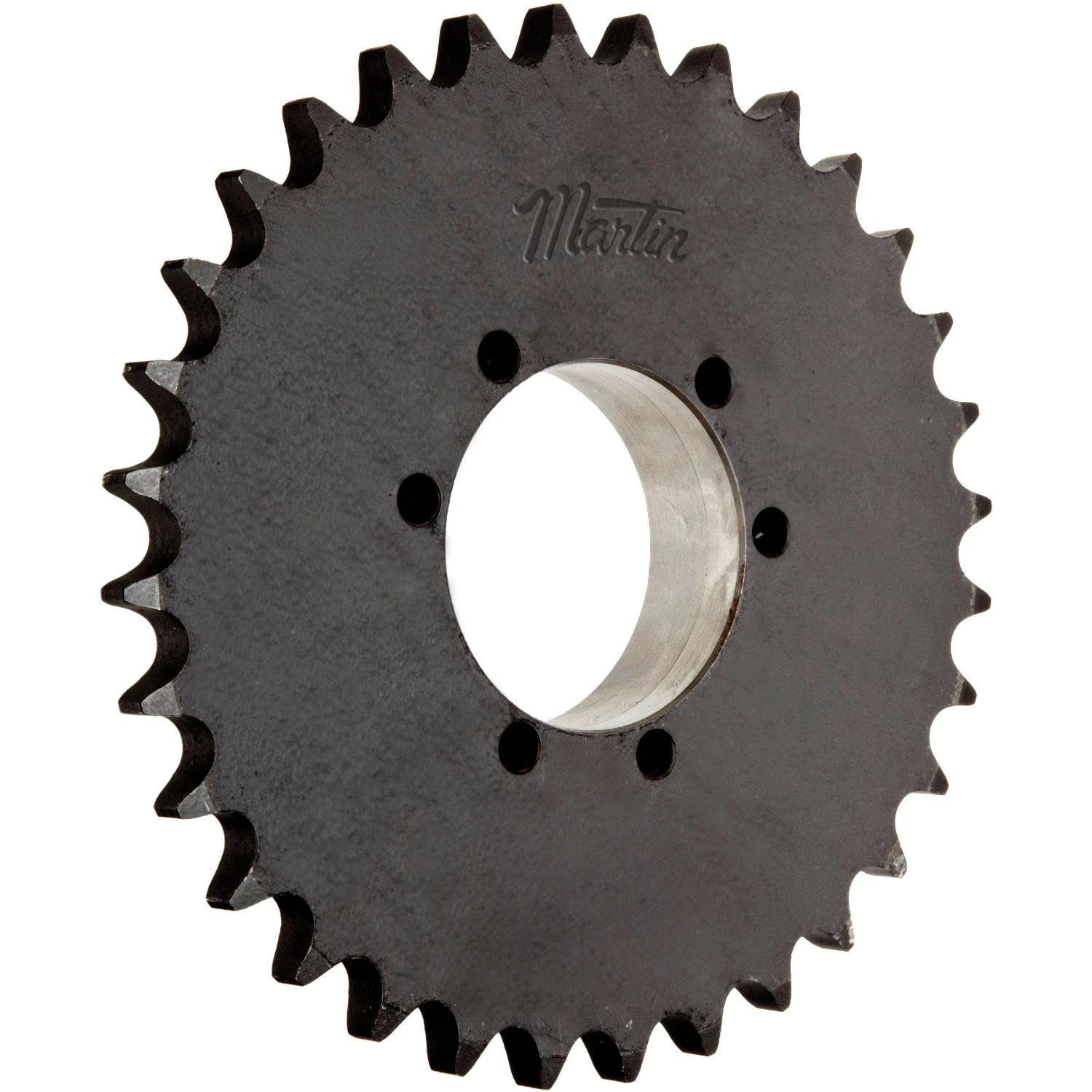

MARTIN SPROCKET 60SK28H Sprocket, QD, 60 Chain, 28 Teeth, 6.699 Inch Pitch Dia., 7.106 Inch O.D., Steel
Item: AJ8ZYMModel: 60SK28H
7 In Stock
7.106"
Ships within 2 days via
€203.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller Chain Sprocket |
| Bore Dia. | 1/2" to 2 5/8" |
| Bore Type | Bushed |
| Bushing Part Number | SK |
| Bushing Size | SK |
| Bushing Type | QD SK |
| Chain Number | 60 |
| Chain Pitch | 3/4" |
| Chain Size | #60 |
| Construction | Welded |
| Construction Type | Welded |
| For Chain Number | 60 |
| For Chain Pitch | 3/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Dia. | 4" |
| Hub Outside Dia. | 4" |
| Individually Packaged | No |
| Length Through Bore | 1 1/4" |
| Length Thru Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 5/8" |
| Min. Bore Size | 1/2" |
| No. Of Chain Rows | 1 |
| No. Of Teeth | 28 |
| Outside Dia. | 7.106" |
| Pitch | 3/4" |
| Pitch Dia. | 6.6986" |
| Product Datasheet | martin-sprocket-100a10.pdf |
| Screw Size | 5/16"-18 |
| Screw Type | UNC |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 1/4" |
| Storage Dimension Length | 7.106" |
| Storage Dimension Width | 7.106" |
| Type | Type B Single Strand Welded Bushed |
Shipping Info:
| Ship weight (kg) | 2.11 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 18.06 |
| Ship width (cm) | 18.06 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Storage Dimension Length | Storage Dimension Width | Storage Dimension Height | Length Thru Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 60JA11H | 2.662" | 11 | 5/8" | 1.9" | 3 3/16" | 3 3/16" | 3/4" | 14/25" | €97.63 | |
| 60JA12H | 2.898" | 12 | 5/8" | 2.062" | 3 1/2" | 3 1/2" | 3/4" | 14/25" | €103.29 | |
| 60JA13H | 3.1339" | 13 | 5/8" | 2 1/8" | 3 1/2" | 3 1/2" | 15/16" | 14/25" | €108.38 | |
| 60SH14H | 3.371" | 14 | 1 5/16" | 2 16/25" | 3 7/8" | 3 7/8" | 15/16" | 0.812" | €115.17 | |
| 60SH15H | 3.607" | 15 | 1 5/16" | 2 3/4" | 4 5/16" | 4 5/16" | 15/16" | 0.812" | €115.14 | |
| 60SH16H | 3.844" | 16 | 1 5/16" | 2 3/4" | 4 5/16" | 4 5/16" | 15/16" | 0.812" | €123.33 | |
| 60SDS17H | 4.082" | 17 | 1 3/8" | 3 1/4" | 4 1/2" | 4 1/2" | 3/4" | 3/4" | €123.33 |
